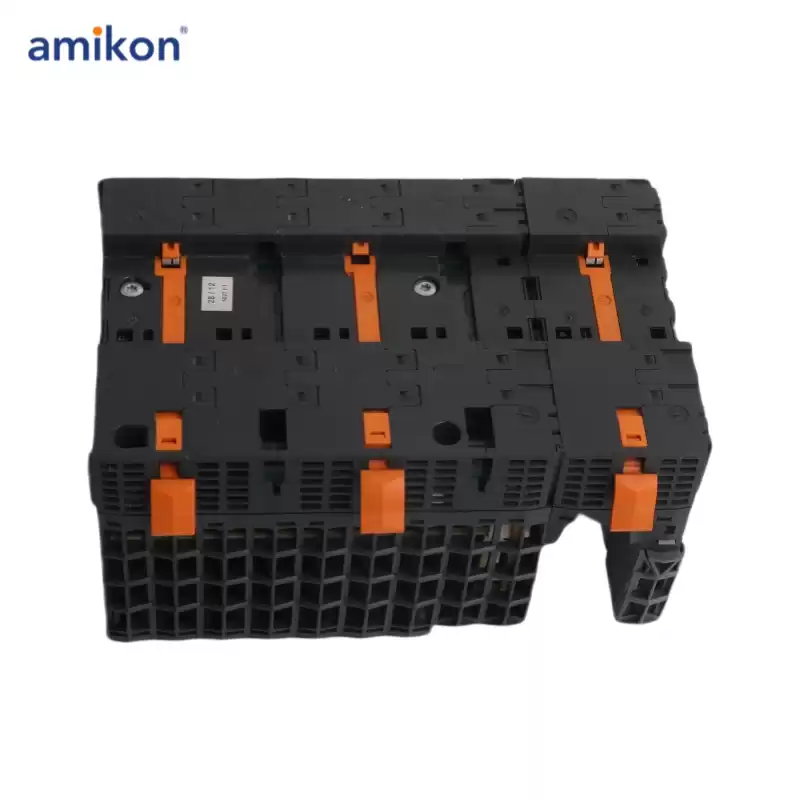

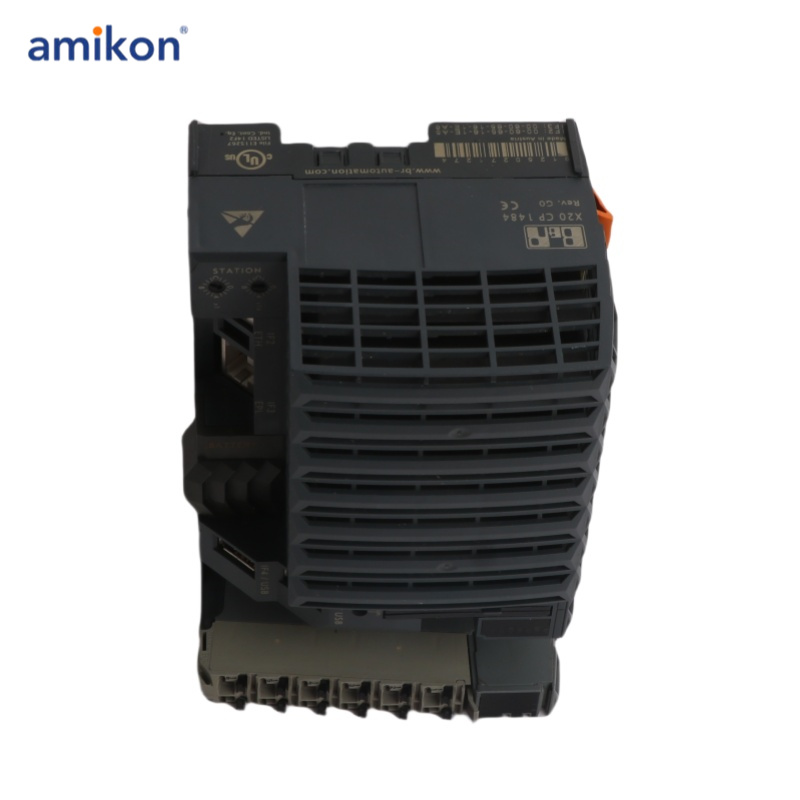

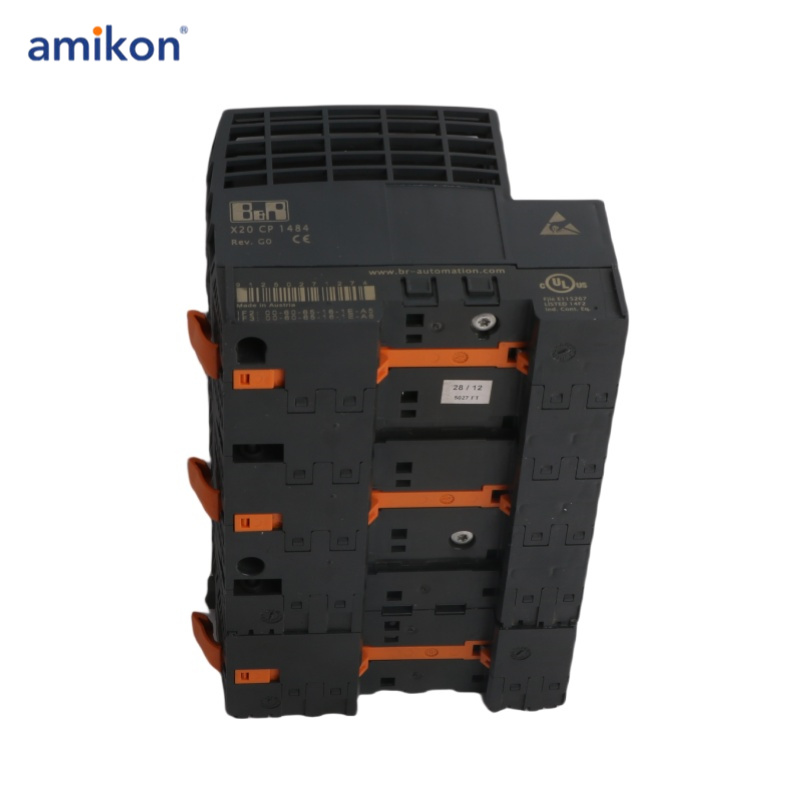

B&R X20 CPU Celeron 266 X20CP1484

B&R X20 CPU Celeron 266 X20CP1484

Manufacturers:
B&R
Model(s):
B&R X20 System
Additional Information:
32MB DRAM, 1MB SRAM, exchangeable application memory: CompactFlash.
Estimated Shipping Size:
-Dimensions: 6.0" x 4.0" x 3.3"
-(15.2 cm x 10.2 cm x 8.3 cm)
-Weight: 1 lbs 8.0 oz (0.7kg )
Tariff Code: 8537109060

Based on state-of-the-art Intel Celeron processor technology, the X20 CPUs cover a wide spectrum of demands. They can be implemented in solutions ranging from standard applications to those requiring the highest levels of
performance.
The x86 100MHz-compatible X20CP1483 is the entry-level X20 CPU. With an optimum price/performance ratio, it has the same basic features as all of the larger CPUs. USB and Ethernet are included in every CPU. In addition, every CPU has a POWERLINK connection for real-time communication.

In addition, there are up to three multi-purpose slots for additional interface modules.
• Intel Celeron 650/400/266 Performance with additional I/O processor
• Entry-level CPU is Intel x86 100MHz-compatible with additional I/O processor
• Ethernet, POWERLINK V1/V2 and USB onboard
• Modular expansion of interfaces
• CompactFlash as removable application memory
• Fan-free or exchangeable fan
• Extremely compact
