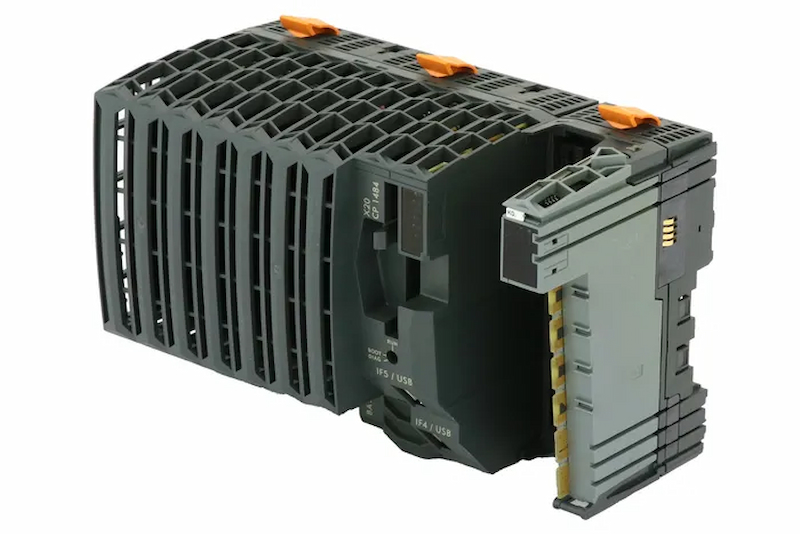

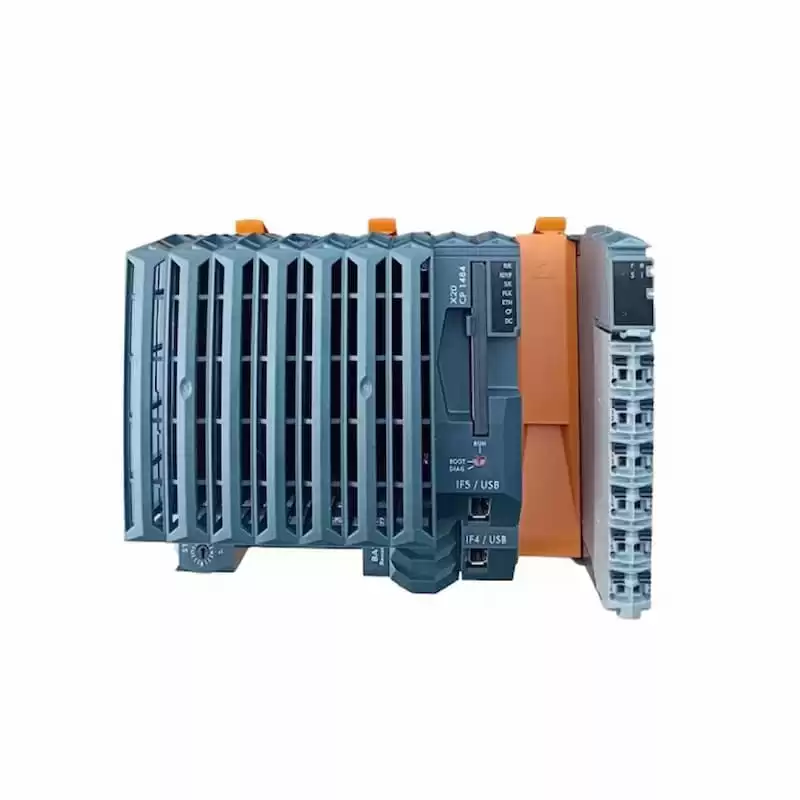

B&R X20CP1484 CPU Controller Module

This B&R CPU module is reference X20CP1484-1. It belongs to the X20 range. 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link.





B&R X20CP1484 CPU Controller Module



The X20CP1484 is the smallest Celeron based CPU for the X20 System. However, its shortest cycle time of 800 µs still shows its power. The basic features are the same as those of the larger types.



Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3484 are that the X20CP1484 only has one slot for interface modules and a smaller width.



The CPU models X20CP1484 and X20CP1484-1 differ only by SDRAM size.



· Intel Celeron 266 Performance with additional I/O processor



· Ethernet, POWERLINK and USB onboard



· 1 slot for modular interface expansion



· CompactFlash as removable application memory



· Fan-free



· Extremely compact



B&R X20CP1484

Technical Specifications

Part Number X20CP1484
Ordering Information X20CP1484
Product Catalog X20 System
Description CPU Controller Module
Voltage  24 VDC -15% / +20%
Power  0.6 W
Dimension 150 mm x 99 mm x 85 mm
Weight 400 g
