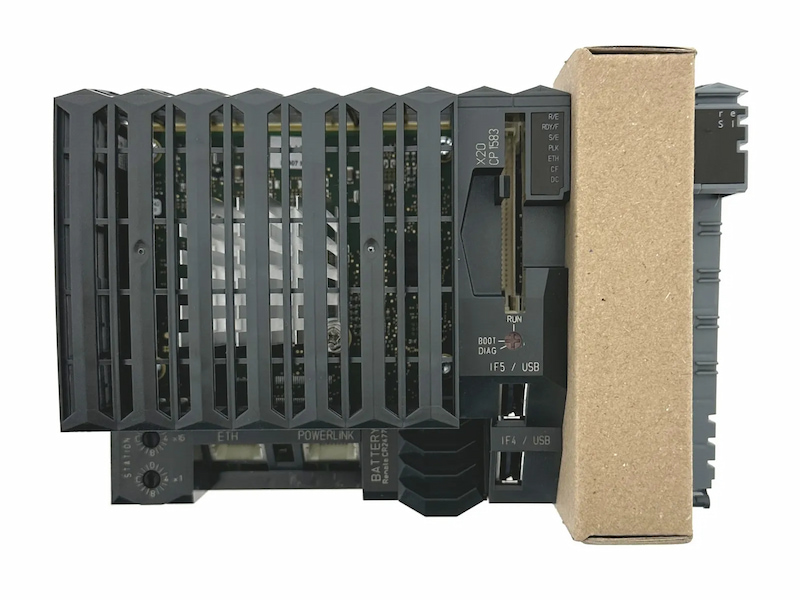

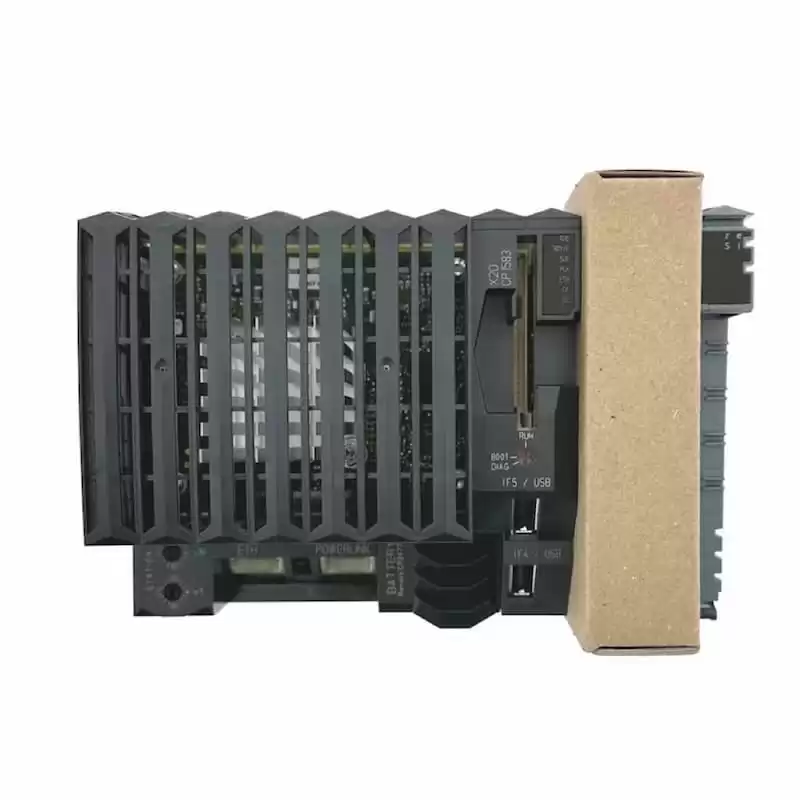

B&R X20CP1583 CPU Controller Module
The X20CP1583 is the entry-level Atom-based X20 controller. Even the smallest controller is equipped with 128 MB DDR2 SDRAM. With an optimum price/performance ratio, it has the same features as all of the larger controllers.
USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. The standard Ethernet interface is capable of handling communication in the gigabit range. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).
The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
· Intel ATOM 333 MHz-compatible CPU with additional I/O processor
· Onboard Ethernet, POWERLINK with poll response chaining and USB
· 1 slot for modular interface expansion
· CompactFlash as removable application memory
· 128 MB DDR2 SDRAM
· Fanless
Technical Specifications
| Part Number |
X20CP1583 |
| Ordering Information |
X20CP1583 |
| Product Catalog |
X20 System |
| Description |
CPU Controller Module |
| Voltage |
24 VDC -15% / +20% |
| Power |
0.6 W |
| Dimension |
150 mm x 99 mm x 85 mm |
| Weight |
400 g |
