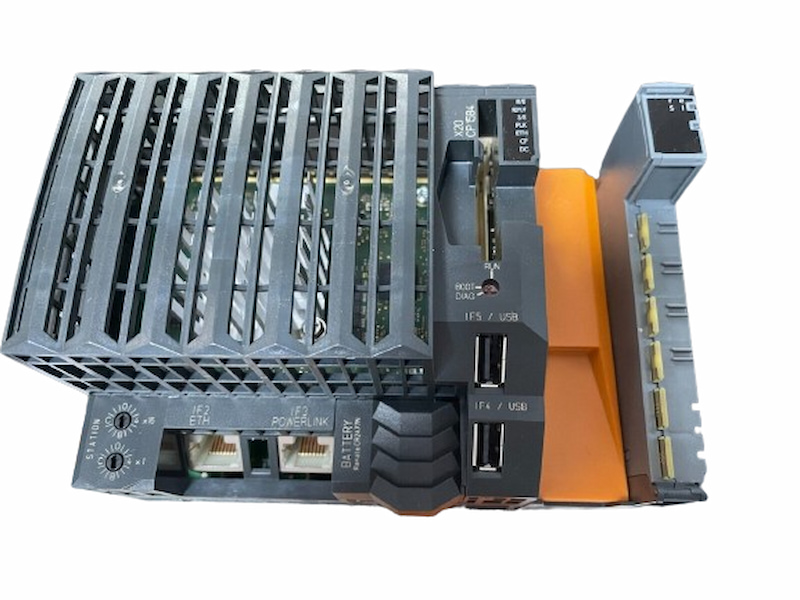

B&R X20CP1584 CPU Controller Module

This B&R CPU module is reference X20CP1584. It belongs to the X20 range. X20 PLC, Atom 0.6 GHz, 256 MB DDR2 RAM, 1 MB SRAM, removable application memory.



X20CP1584 CPU Controller Module



The X20CP1584 CPU Controller Module is based on an Atom processor clocked at 0.6 GHz and equipped with 256 MB DDR2 SDRAM.



USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).



The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.



· Intel Atom 600 MHz processor with an additional I/O processor



· Onboard Ethernet, POWERLINK with poll response chaining and USB



· 1 slot for modular interface expansion



· CompactFlash as removable application memory



· 256 MB DDR2-SDRAM



· Fanless

B&R X20CP1584

Technical Specifications

Part Number X20CP1584
Ordering Information X20CP1584
Product Catalog X20 System
Description CPU Controller Module
Voltage  24 VDC -15% / +20%
Power  0.6 W
Dimension 150 mm x 99 mm x 85 mm
Weight 400 g
