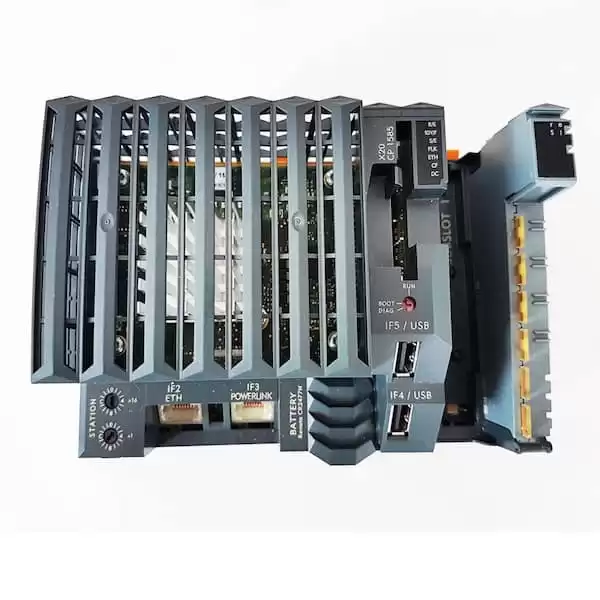

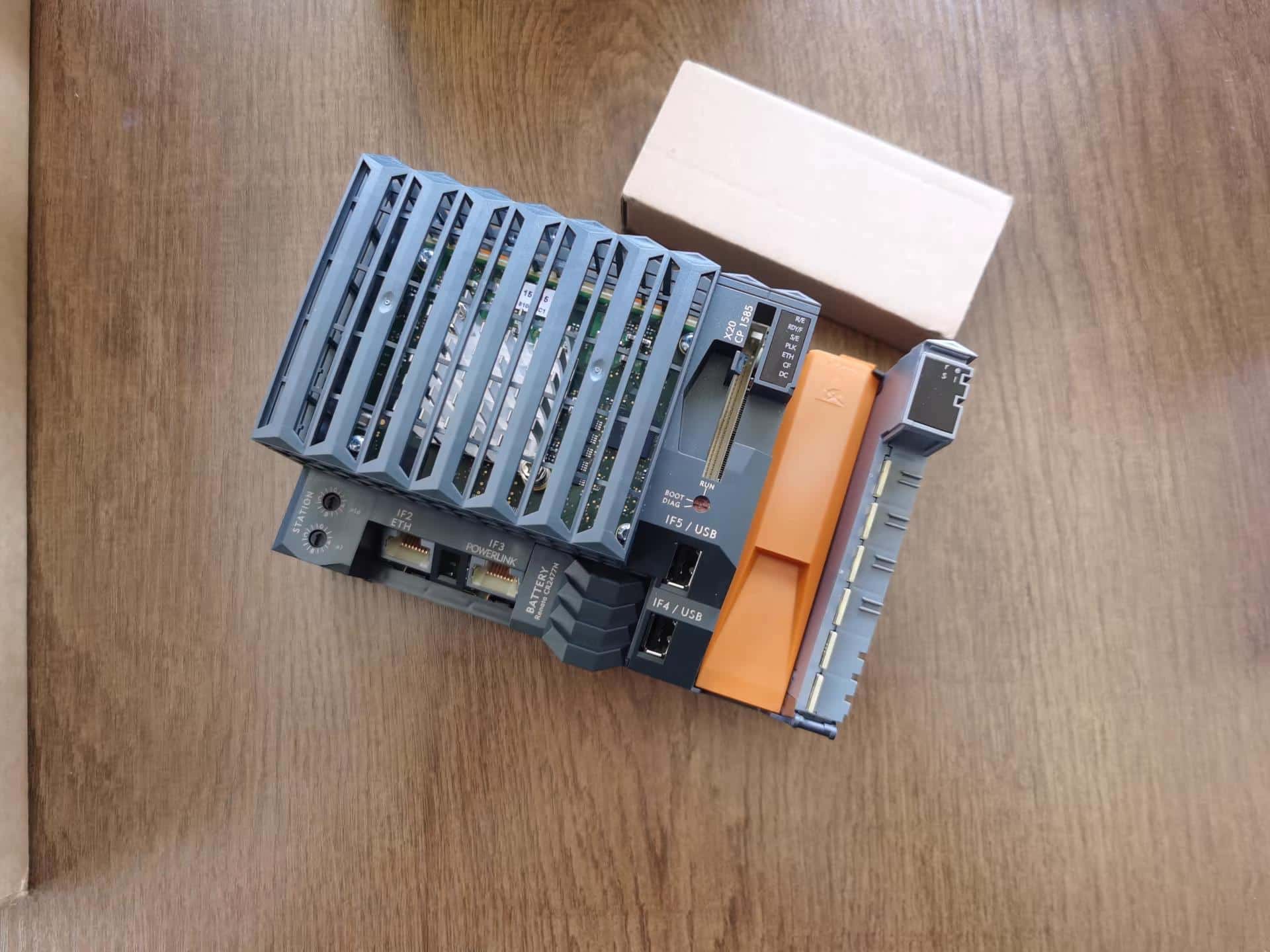

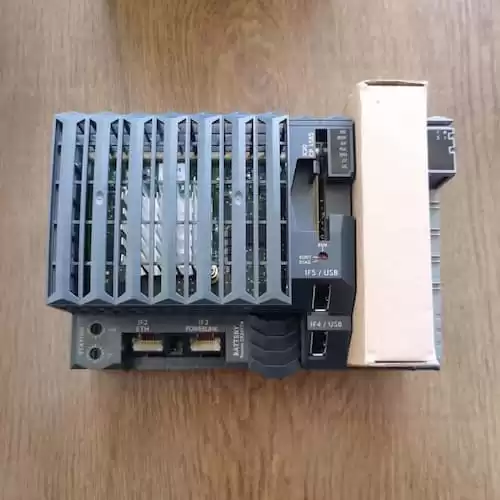

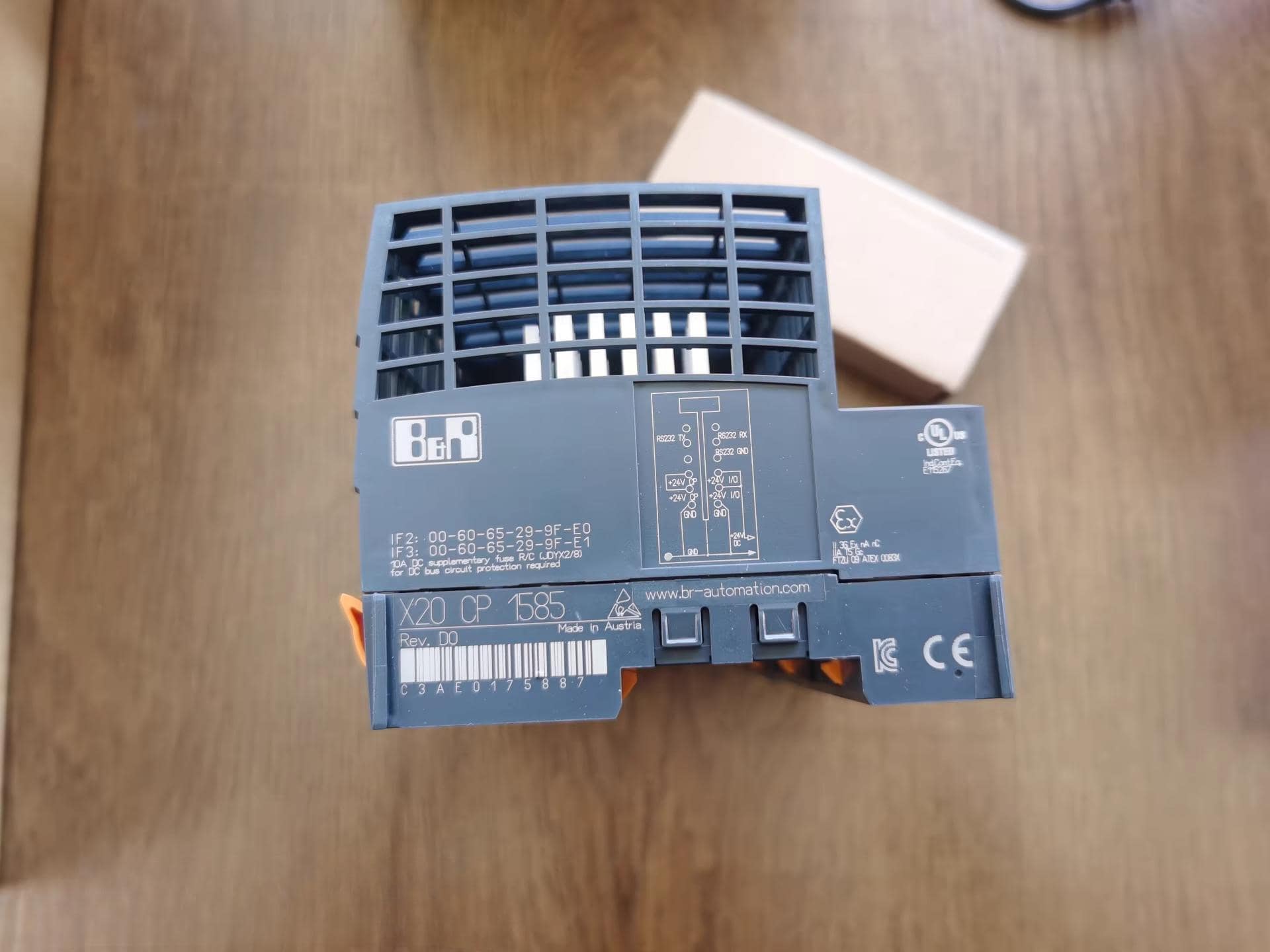

X20CP1585
Description
· Intel Atom 1.0 GHz processor with an additional I/O processor
· Onboard Ethernet, POWERLINK with poll response chaining and USB
· 1 slot for modular interface expansion
· CompactFlash as removable application memory
· 256 MB DDR2-SDRAM
· Fan less
The X20CP1585 controller is based on an Atom processor clocked at 1 GHz and equipped with 256 MB DDR2 SDRAM.
USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).
The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
Technical Specifications
| Part Number |
X20CP1585 |
| Ordering Information |
X20CP1585 |
| Product Catalog |
X20 System |
| Description |
CPU Controller Module |
| Voltage |
24 VDC -15% / +20% |
| Power |
0.6 W |
| Dimension |
150 mm x 99 mm x 85 mm |
| Weight |
400 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
