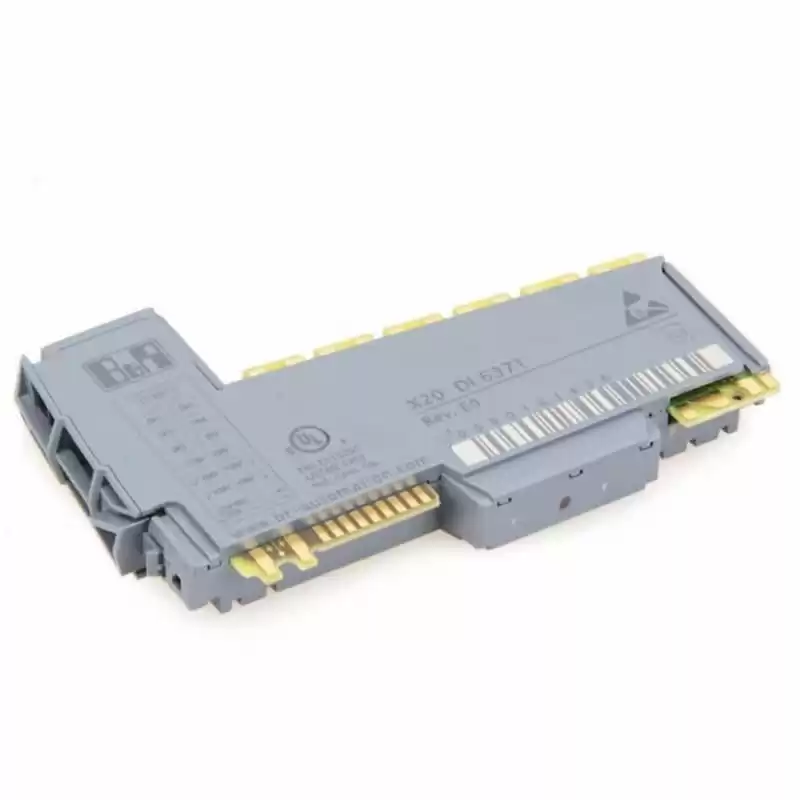

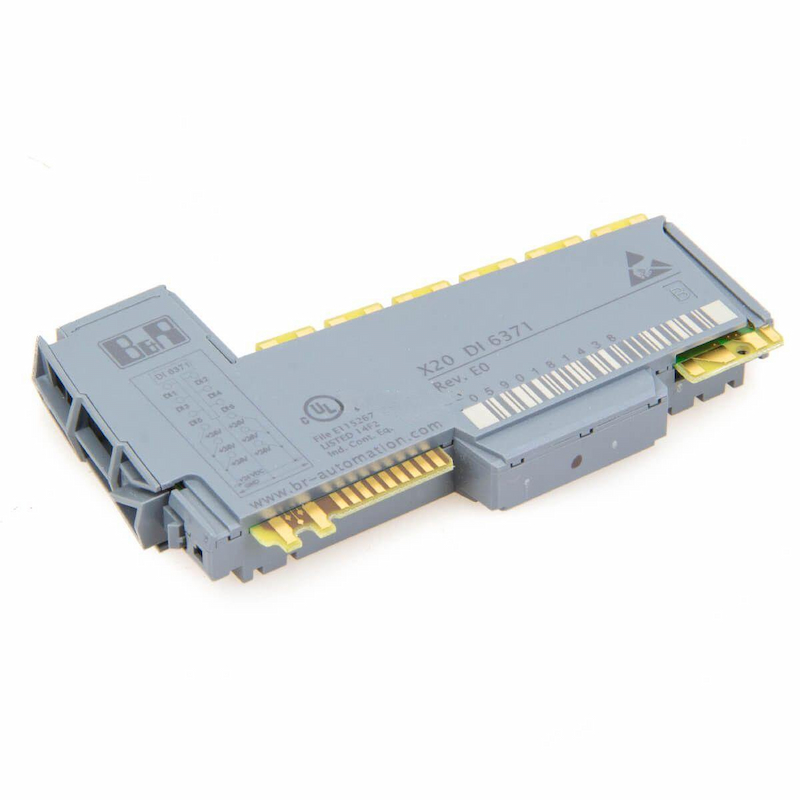

B&R X20DI6371 Digital Input Module
The module is equipped with 6 inputs for 1 or 2-wire connections. The X20 6-pin terminal block can be used for universal1-line wiring. Two-line wiring can be implemented using the 12-pin terminal block. The inputs on the module are designed for sink connections.
· 6 digital inputs
· Sink connection
· 2-wire connections
· 24 VDC for sensor supply
· Software input filter can be configured for entire module
· 1-wire connection type with 6-pin terminal block
