Product Description:
X20DO9322 I/O module
12 digital outputs 24 VDC for 1-wire connections
Digital outputs
Variant,Current-sourcing FET
Nominal voltage,24 VDC
Switching voltage,24 VDC -15% / +20%
Nominal output current,0.5 A
Total nominal current,6 A
Connection type,1-wire connections
Output circuit,Source
Output protection
Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current")
Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
Diagnostic status,Output monitoring with 10 ms delay
Leakage current when the output is switched off,5 µA
RDS(on),210 mΩ
Peak short-circuit current,<12 A
Switch-on in the event of overload shutdown or short-circuit shutdown,Approx. 10 ms (depends on the module temperature)
Resistive load ,Max. 500 Hz
Braking voltage when switching off inductive loads,Typ. 50 VDC
Insulation voltage between channel and bus,500 Veff
About this item:
1.100% New Original Factory Sealed
2.Best price
3.Warranty for 12 months
Advantage:

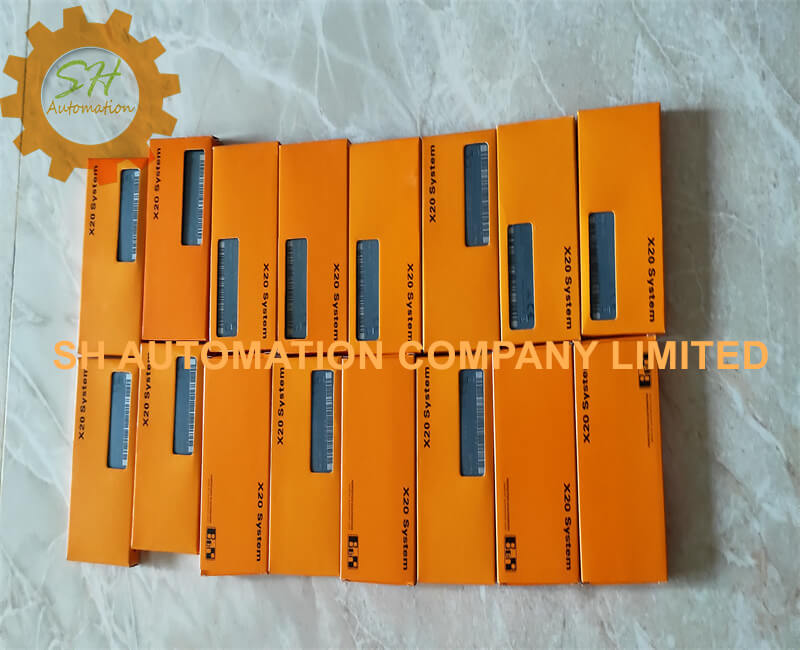

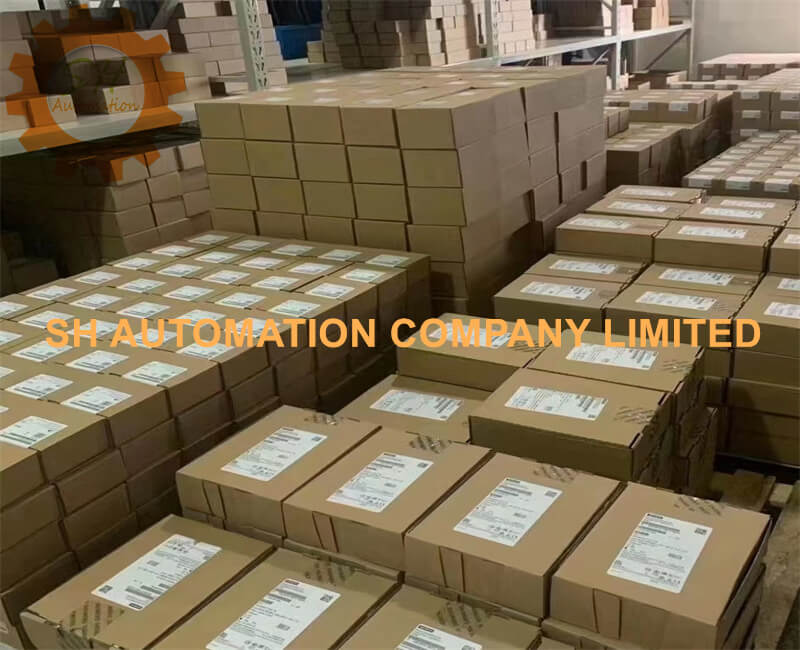

1.Large stocks
2.Warehouse about the country, choose the nearest storehouse to dispatch your goods.
3.Cooperated logistic express company, offer cheapest air courier fee
4.Provide global brands products,quality assurance!
Payment Terms:
Wire transfer (100% T/T)
Special discount:
If you find other suppliers offer cheaper price for same product, we`d love to offer you the same, or even more disocunt.
Packaging & Delivery:

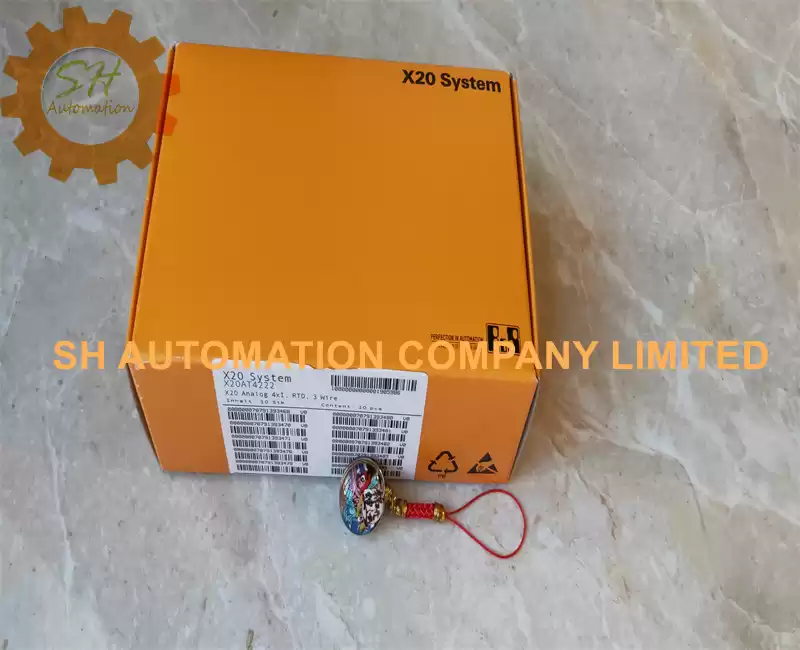

1.Original factory sealed package.
2.Wrap with foam with every item.
3.Carton package in advance.
4.For heavy cargo, will load with wooden package.
5.Fast delivery after payment
6.Air way through DHL/FedEx/UPS/TNT...
