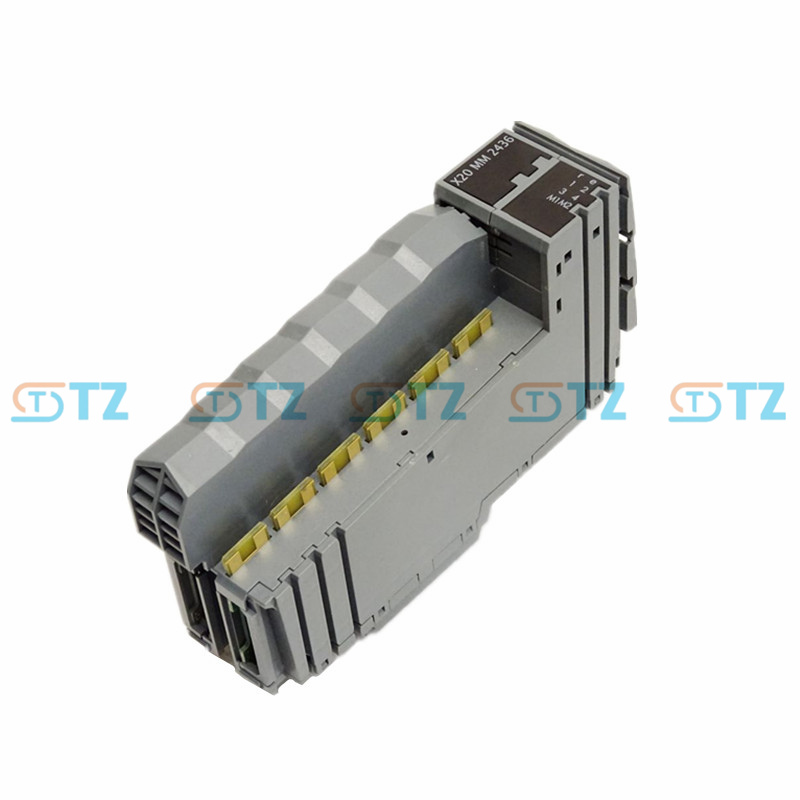

X20MM2436 B&R X20 System PWM Motor Module

X20 PWM motor module, 24 to 39 VDC ±25%, 2 PWM motor bridges, 3 A continuous current, 3.5 A peak current, 4 digital inputs 24 VDC, sink, configurable as incremental encoder. HS CODE : 8538909200

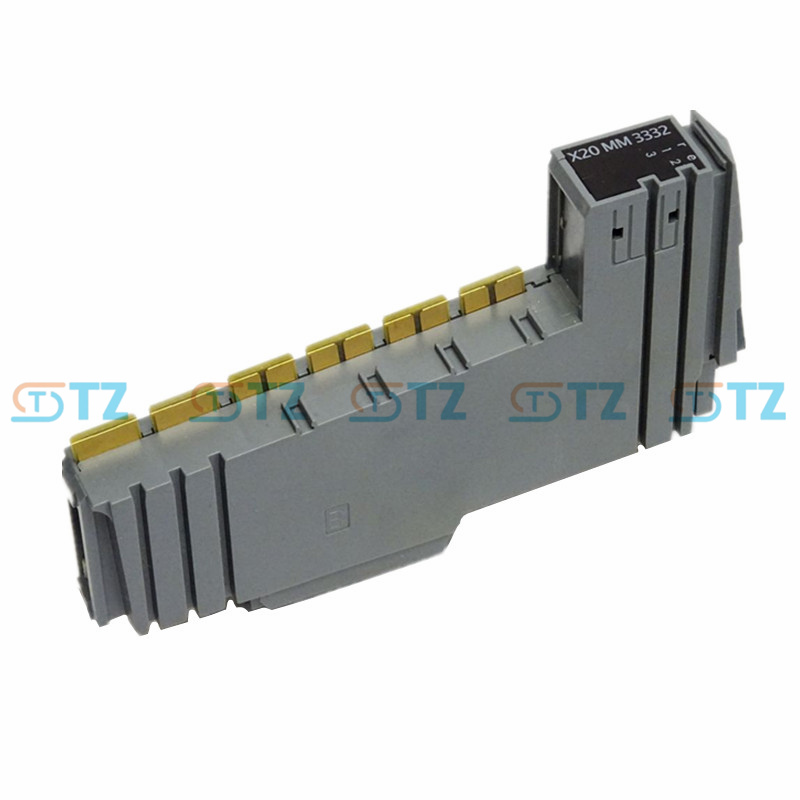

X20MM3332 B&R X20 System Digital Motor Module

X20 digital motor module, 24 VDC, 3 digital outputs, Full bridge (H bridge), 3 A continuous current, 5 A peak current. HS CODE : 8538909200

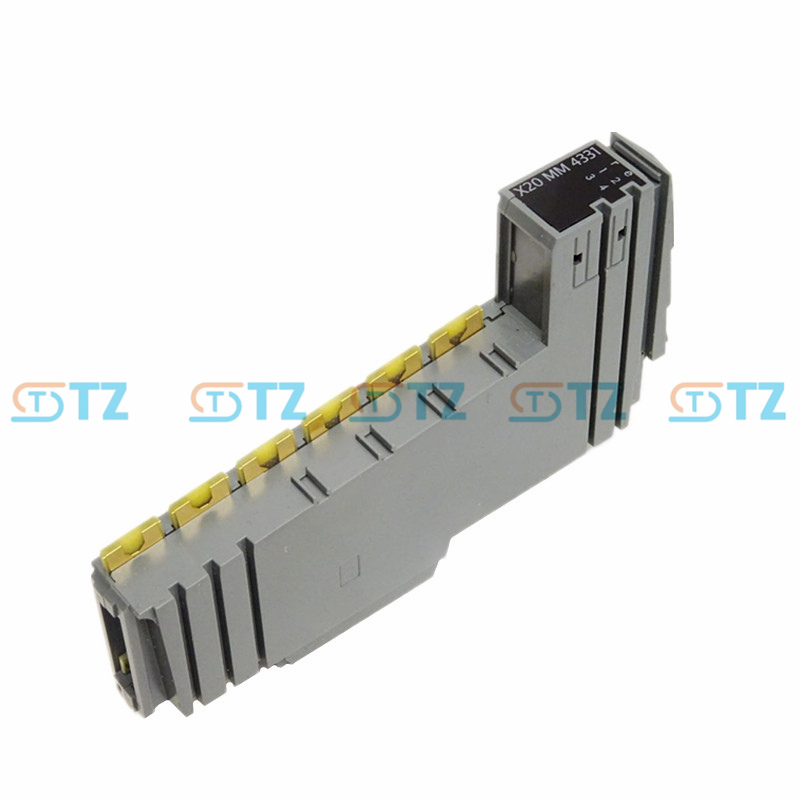

X20MM4331 B&R X20 System Digital Motor Module

X20 digital motor module, 24 VDC, 4 digital outputs, Half bridge, 3 A continuous current, 5 A peak current. HS CODE : 8538909200

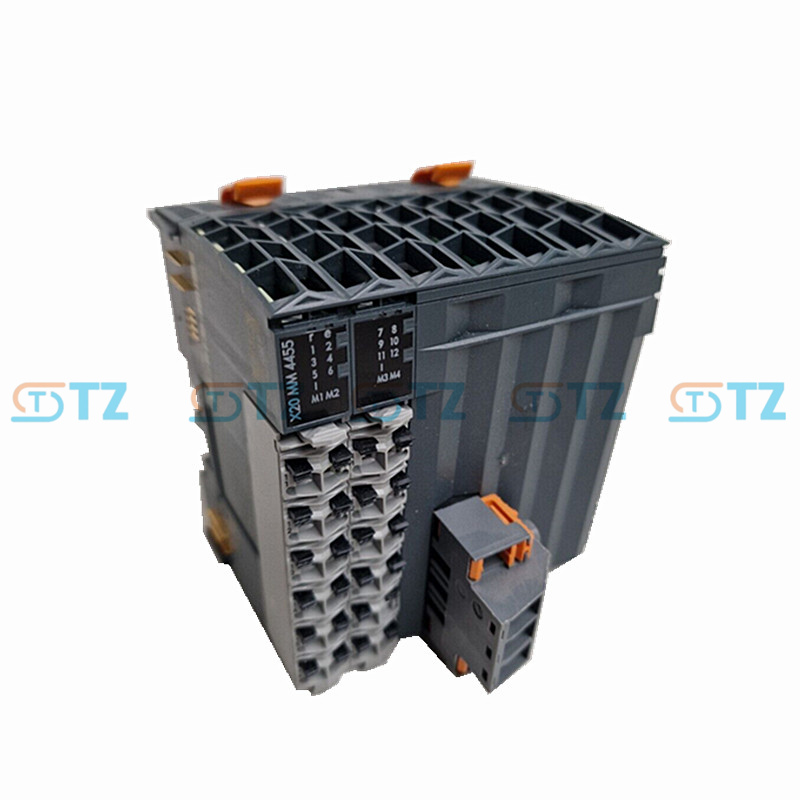

X20MM4455 B&R X20 System PWM Motor Module

X20 PWM motor module, 24 to 48 VDC ±25%, 4 PWM motor bridges, 6 A continuous current, 10 A peak current, 4x 3 digital inputs 5 VDC single-ended, source, configurable as incremental encoder. HS CODE : 8538909200

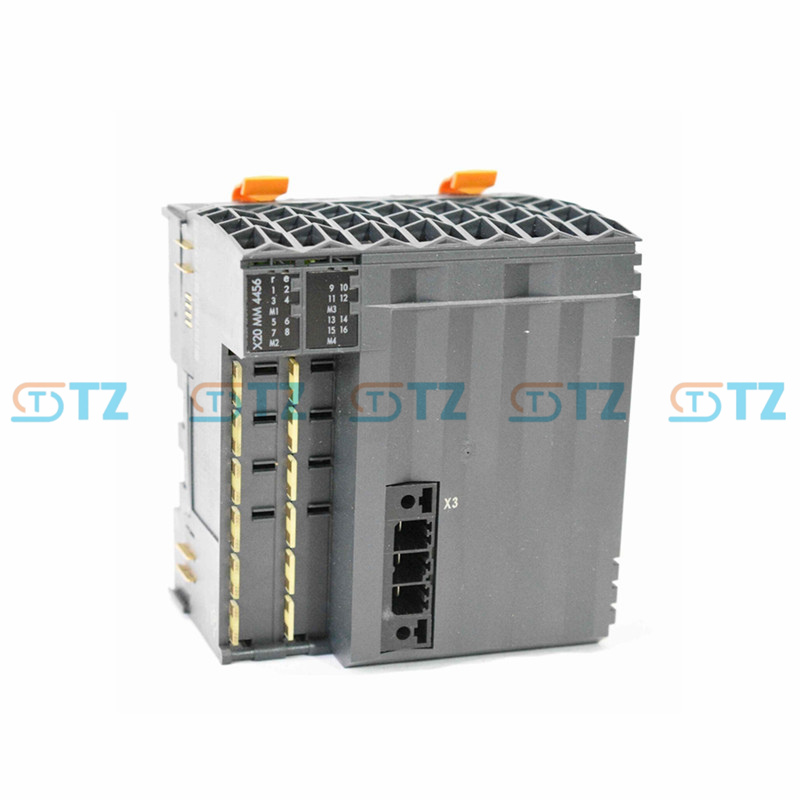

X20MM4456 B&R X20 System PWM Motor Module

X20 PWM motor module, 24 to 48 VDC ±25%, 4 PWM motor bridges, 6 A continuous current, 10 A peak current, 4x 4 digital inputs 24 VDC, sink, configurable as incremental encoder. HS CODE : 8538909200

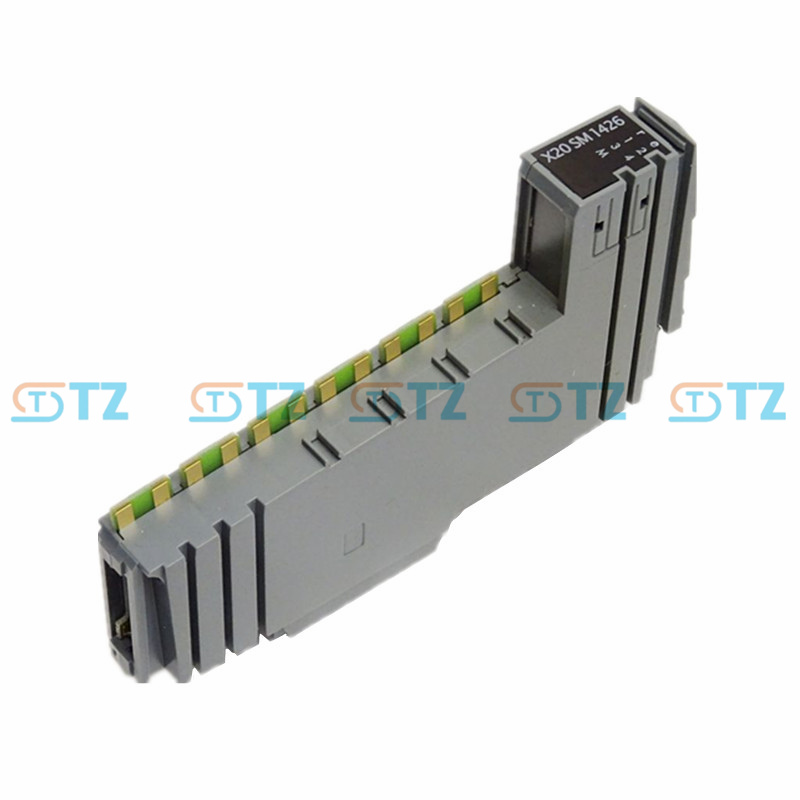

X20SM1426 B&R X20 System Stepper Motor Module

X20 stepper motor module, 1 motor connection, 1 A continuous current, 1.2 A peak current, 4 digital inputs 24 VDC, sink, configurable as incremental encoder, NetTime function. HS CODE : 8538909200

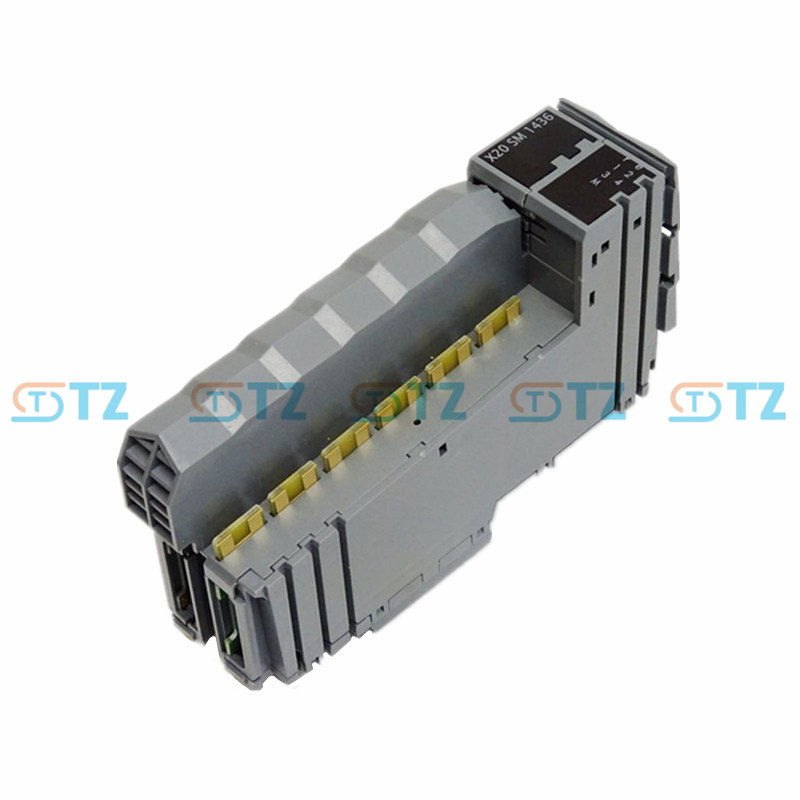

X20SM1436 B&R X20 System Stepper Motor Module

X20 stepper motor module, module power supply 24 to 39 VDC ±25%, 1 motor connection, 3 A continuous current, 3.5 A peak current, 4 digital inputs 24 VDC, sink, configurable as incremental encoder, NetTime function. HS CODE : 8538909200

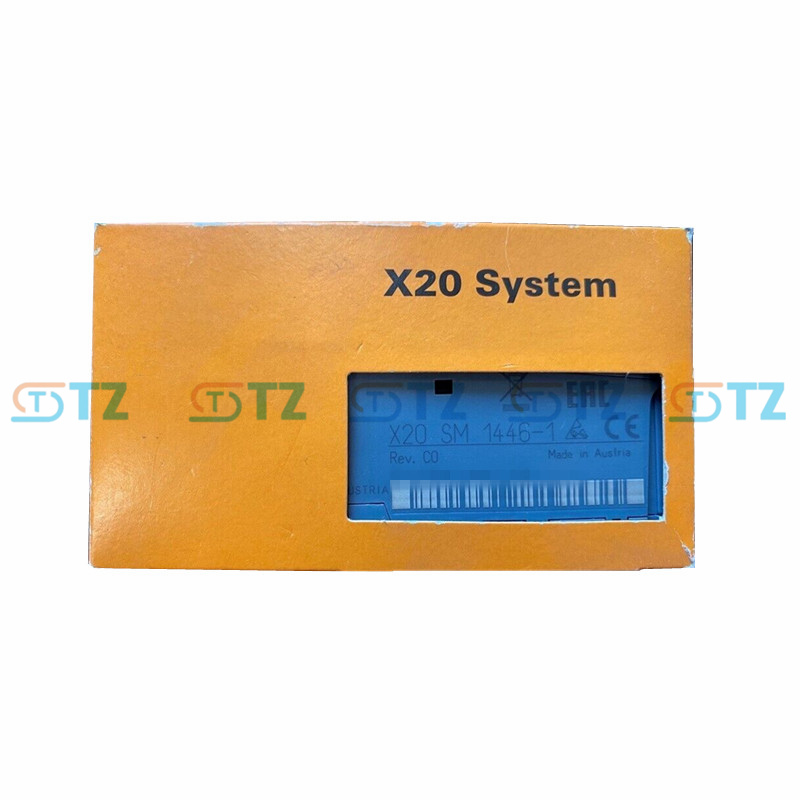

X20SM1446-1 B&R X20 System Stepper Motor Module

X20 stepper motor module, module power supply 24 to 48 VDC ±25%, with current reduction function, 1 motor connection, 5 A continuous current, 10 A peak current, 4 digital inputs 24 VDC, sink, push-pull circuit, configurable as incremental encoder, NetTime function, double-width module. HS CODE : 8538909200

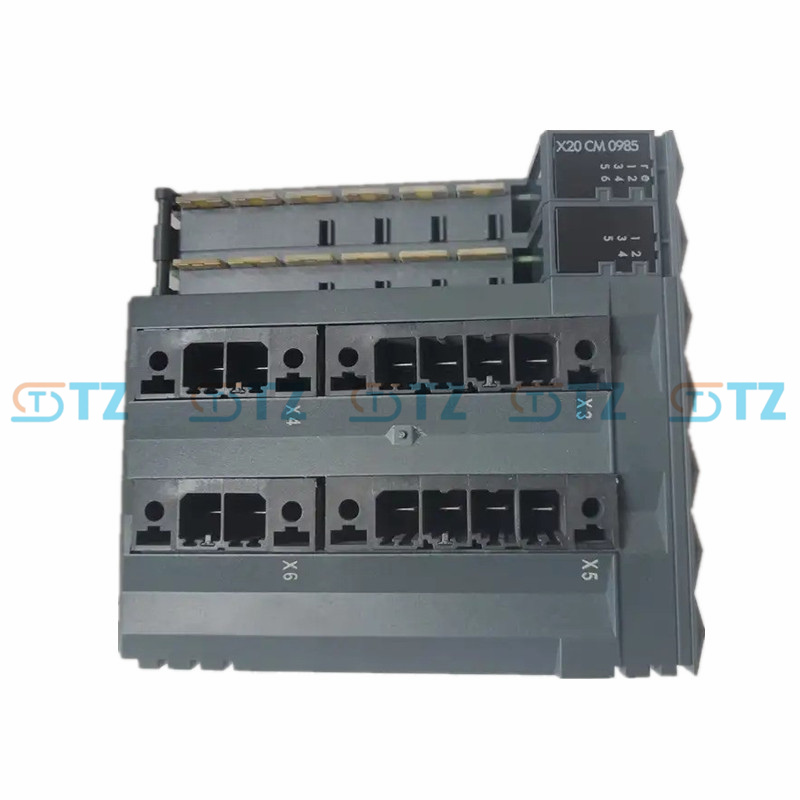

X20CM0985 B&R X20 System Digital & Analog Mixed Module

X20 digital and analog mixed module, multi-measurement transducer / synchronization module, 5 digital outputs, 24 VDC, 0.5 A, source, 1 relay, 1 A, changeover contact, 8 analog inputs, ±480 V / 120 V, 16-bit converter resolution, 3 analog inputs, 5 A / 1 A AC, 16-bit converter resolution. HS CODE : 8538909200

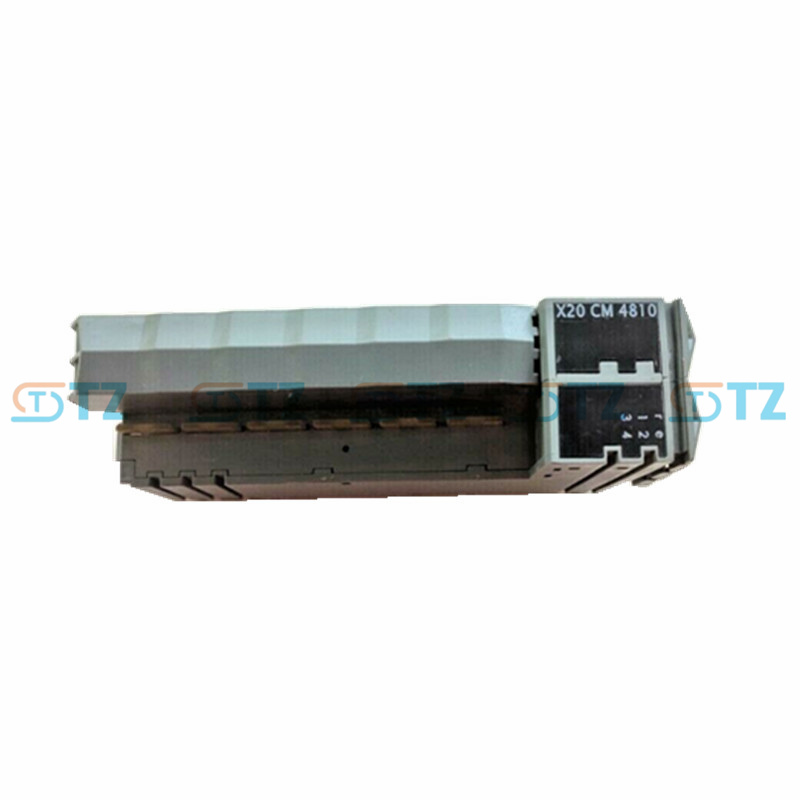

X20CM4810 B&R X20 System Analog Input Module

X20 analog input module, for vibration measurement and analysis of condition monitoring tasks, 4 IEPE analog inputs, 51.5625 kHz sampling frequency, 24-bit converter resolution. HS CODE : 8538909200

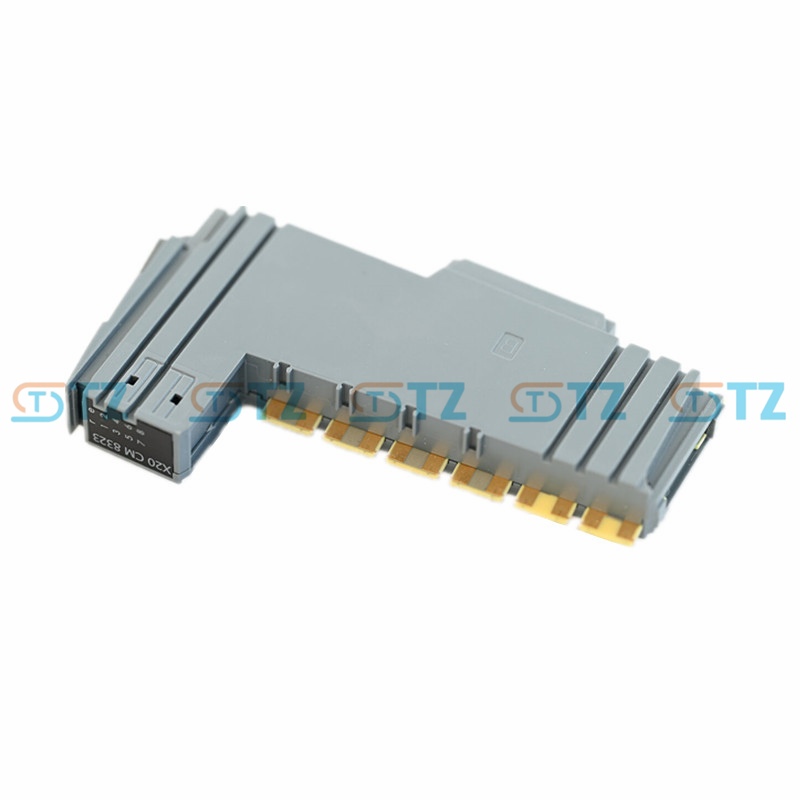

X20CM8323 B&R X20 System PWM Module

X20 PWM module, 8 digital outputs for switching electromechanical loads, 0.6 A continuous current, 2 A peak current, current monitoring, switching instant detection. HS CODE : 8538909200

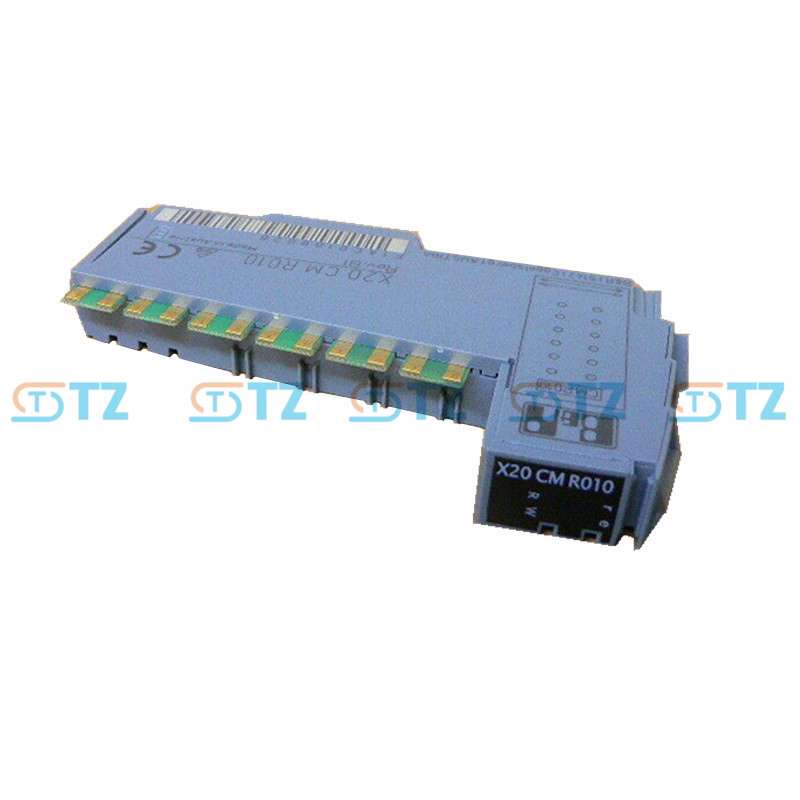

X20CMR010 B&R X20 System Cabinet Monitoring Module

X20 cabinet monitoring module, integrated temperature and humidity sensor, production data acquisition, 512 kB flash memory for user data. HS CODE : 8538909200

X20CMR111 B&R X20 System Cabinet Monitoring Module

X20 cabinet monitoring module, integrated temperature sensor, moisture sensor and accelerometer, production data acquisition, 2 inputs for external Pt1000, 2 digital inputs 24 V, 1 digital output 24 V, 0.5 A, 512 kB flash memory for user data, integrated Technology Guard. HS CODE : 8538909200

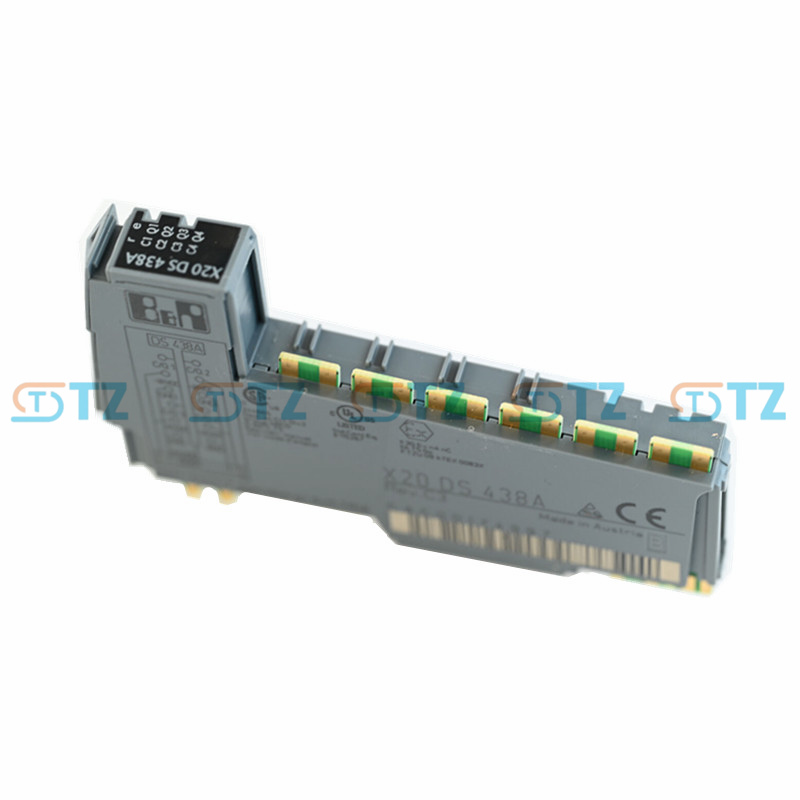

X20DS438A B&R X20 System Digital Signal Module

X20 digital signal module, 4x IO-Link master V1.1, 4 digital channels configurable as inputs or outputs, 3-wire connections, NetTime function. HS CODE : 8538909200

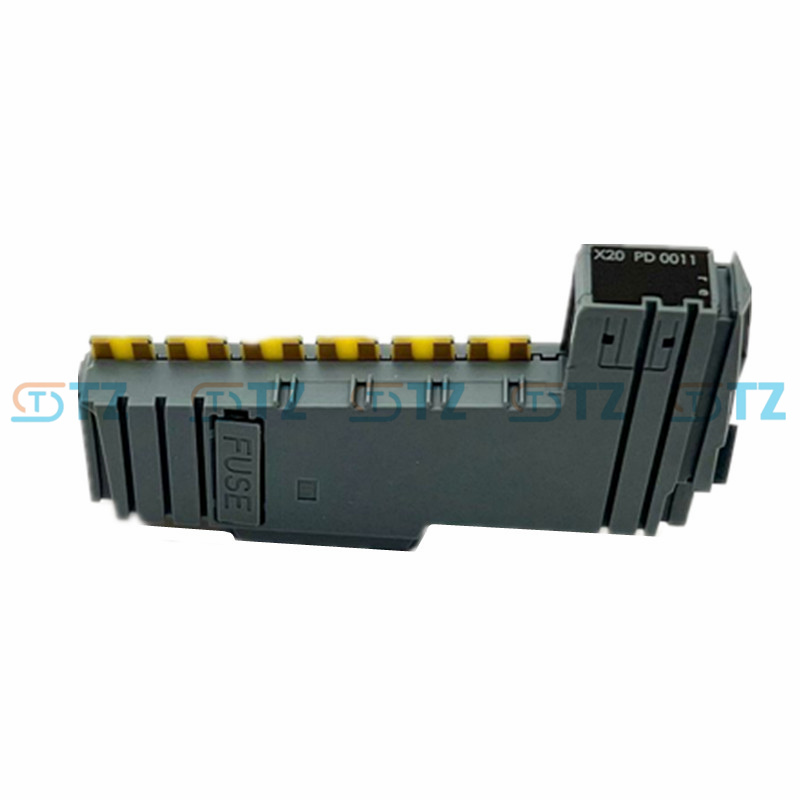

X20PD0011 B&R X20 System Potential Distributor Module

X20 potential distributor module, 12x GND, integrated fine-wire fuse HS CODE : 8538909200

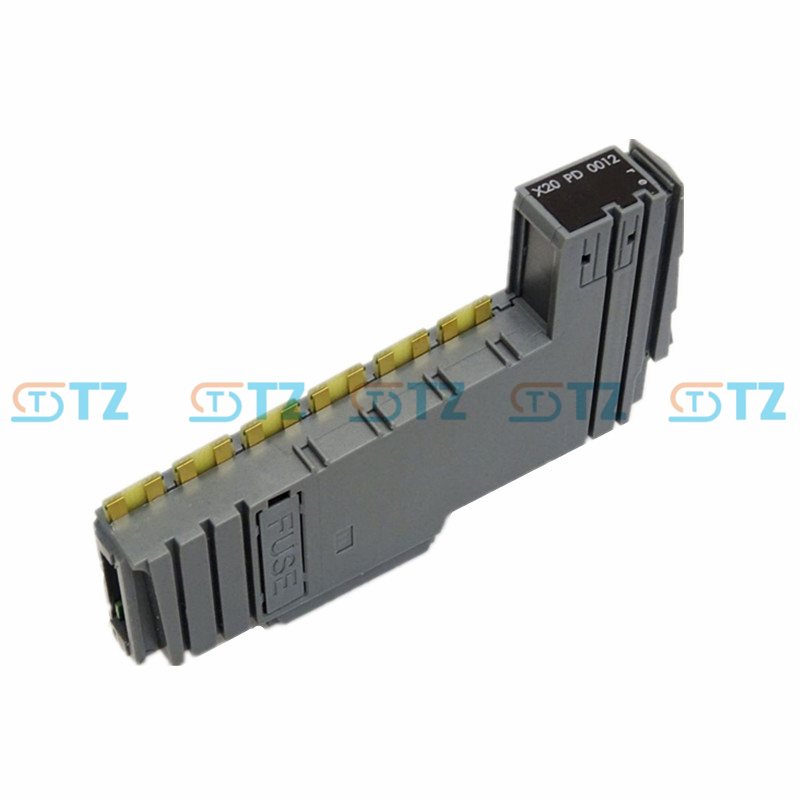

X20PD0012 B&R X20 System Potential Distributor Module

X20 potential distributor module, 12x 24 VDC, integrated fine-wire fuse. HS CODE : 8538909200

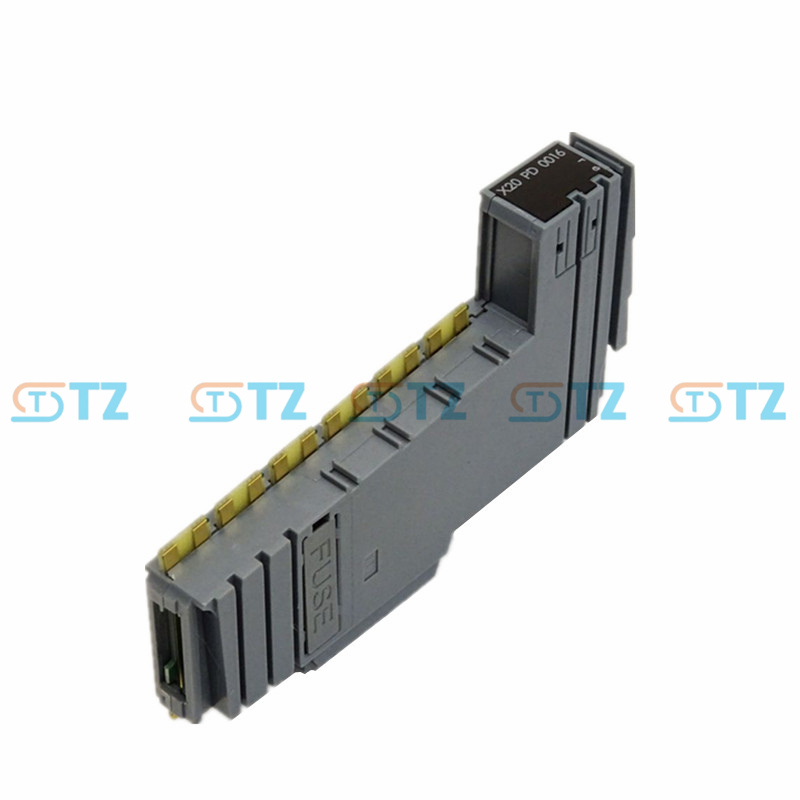

X20PD0016 B&R X20 System Potential Distributor Module

X20 potential distributor module, 5x GND, 5x 24 VDC, potential-free supply, integrated fine-wire fuse. HS CODE : 8538909200

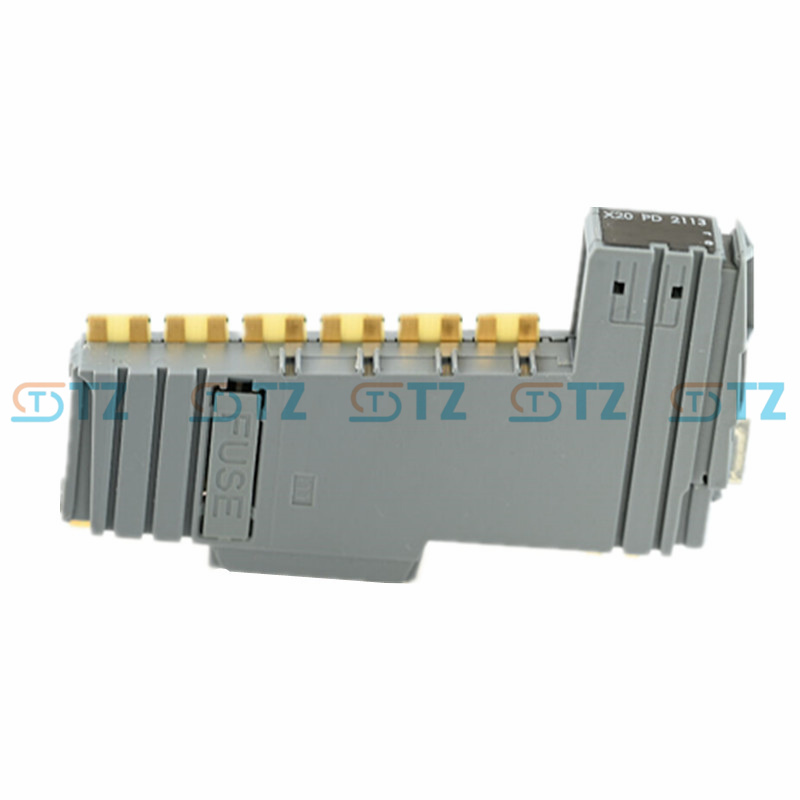

X20PD2113 B&R X20 System Potential Distributor Module

X20 potential distributor module, 6x GND, 6x 24 VDC, with power supply option, integrated fine-wire fuse. HS CODE : 8538909200

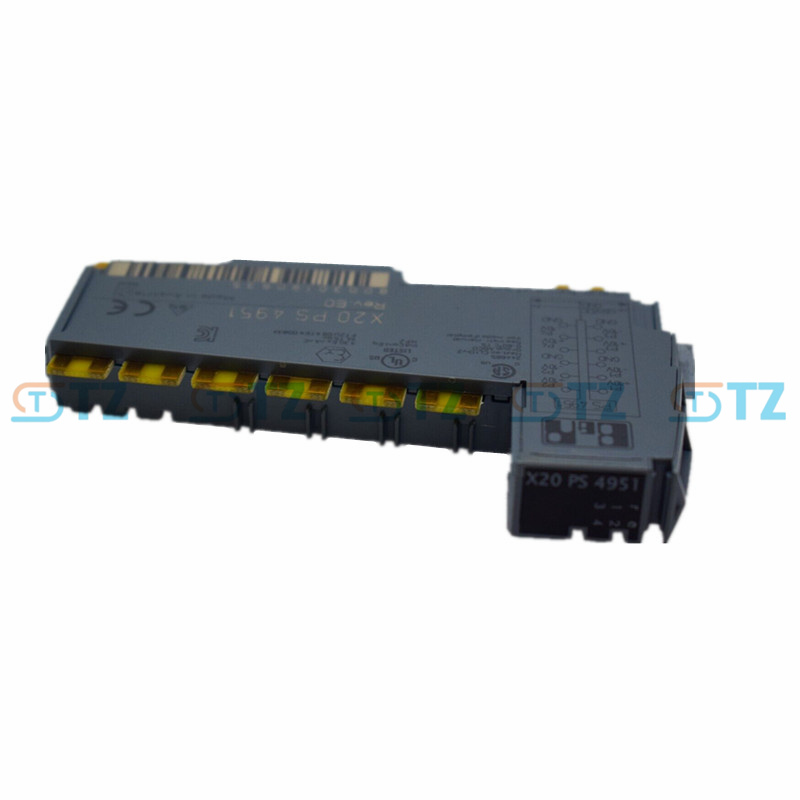

X20PS4951 B&R X20 System Power Supply Module

X20 power supply module, for potentiometers, 4x ±10 V for potentiometer power supply. HS CODE : 8538909200

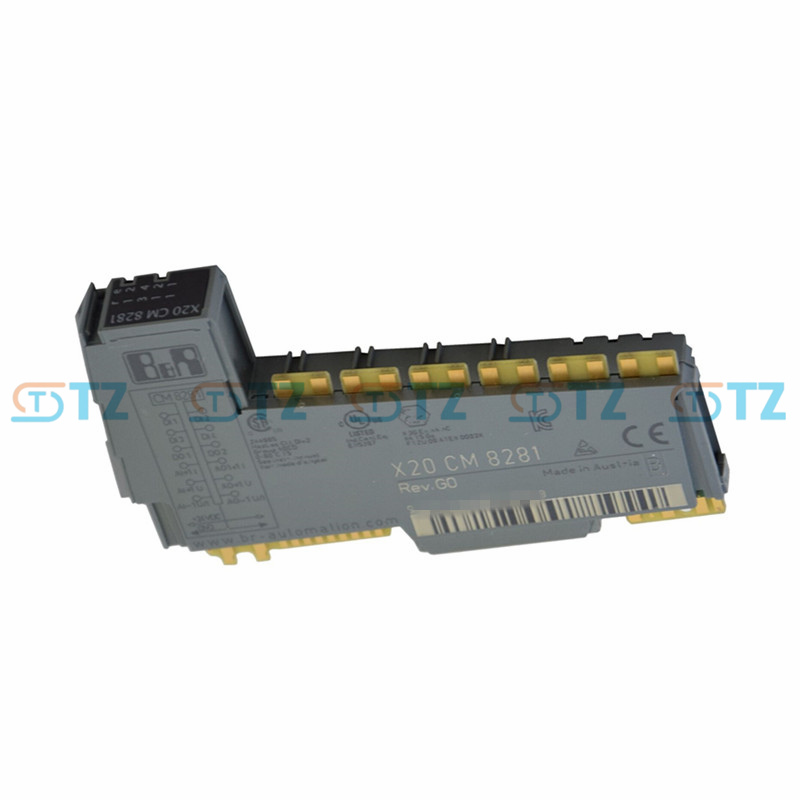

X20CM8281 B&R X20 System Universal Mixed Module

X20 universal mixed module, 4 digital inputs, 24 VDC, sink, 1-wire connections, 2 digital outputs, 0.5 A, source, 1-wire connections, 1 analog input, ±10 V or 0 to 20 mA / 4 to 20 mA, 12-bit converter resolution, 1 analog output, ±10 V / 0 to 20 mA, 12-bit converter resolution, 2 counters as event counters or for gate measurement. HS CODE : 8538909200

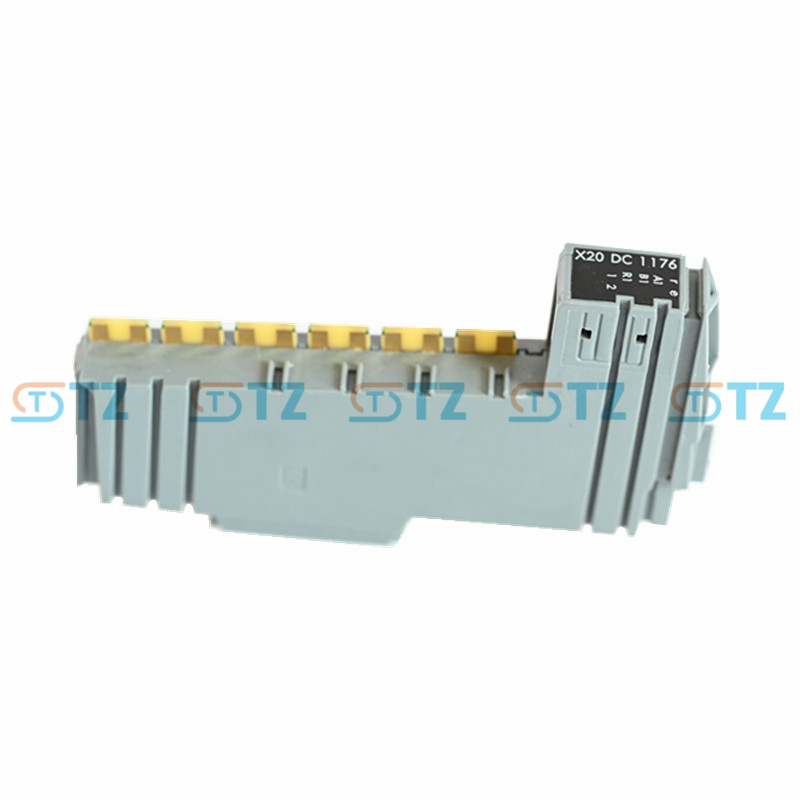

X20DC1176 B&R X20 System Digital Counter Module

X20 digital counter module, 1 ABR incremental encoder, 5 V, 600 kHz input frequency, 4x evaluation, encoder monitoring, NetTime function. HS CODE : 8538909200

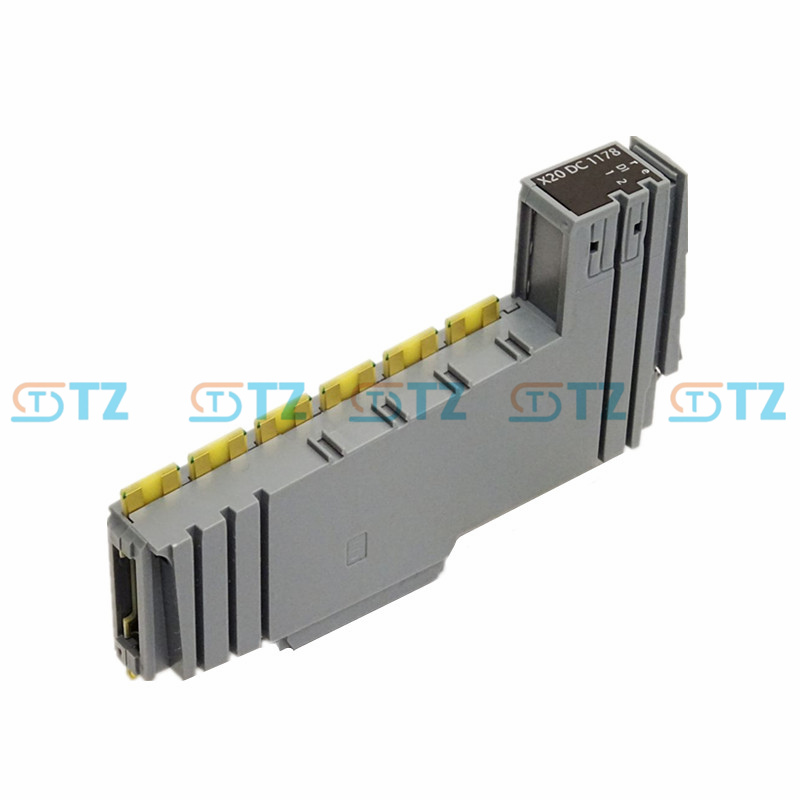

X20DC1178 B&R X20 System Digital Counter Module

X20 digital counter module, 1 SSI absolute encoder, 5 V, 1 Mbit/s, 32-bit, encoder monitoring, NetTime function. HS CODE : 8538909200

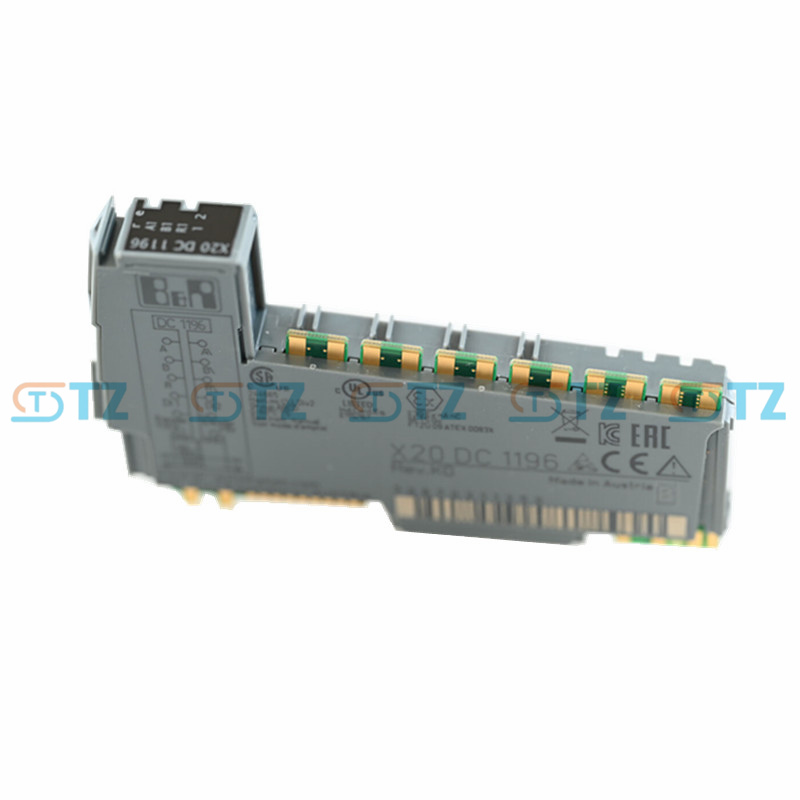

X20DC1196 B&R X20 System Digital Counter Module

X20 digital counter module, 1 ABR incremental encoder, 5 V, 600 kHz input frequency, 4x evaluation. HS CODE : 8538909200

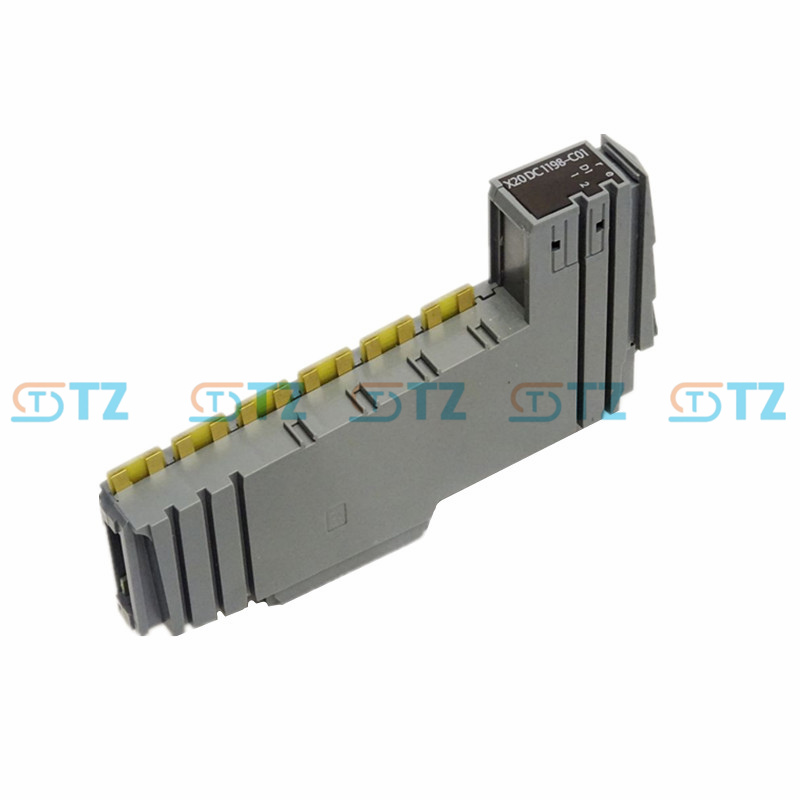

X20DC1198 B&R X20 System Digital Counter Module

X20 digital counter module, 1 SSI absolute encoder, 5 V, 1 Mbit/s, 32-bit. HS CODE : 8538909200

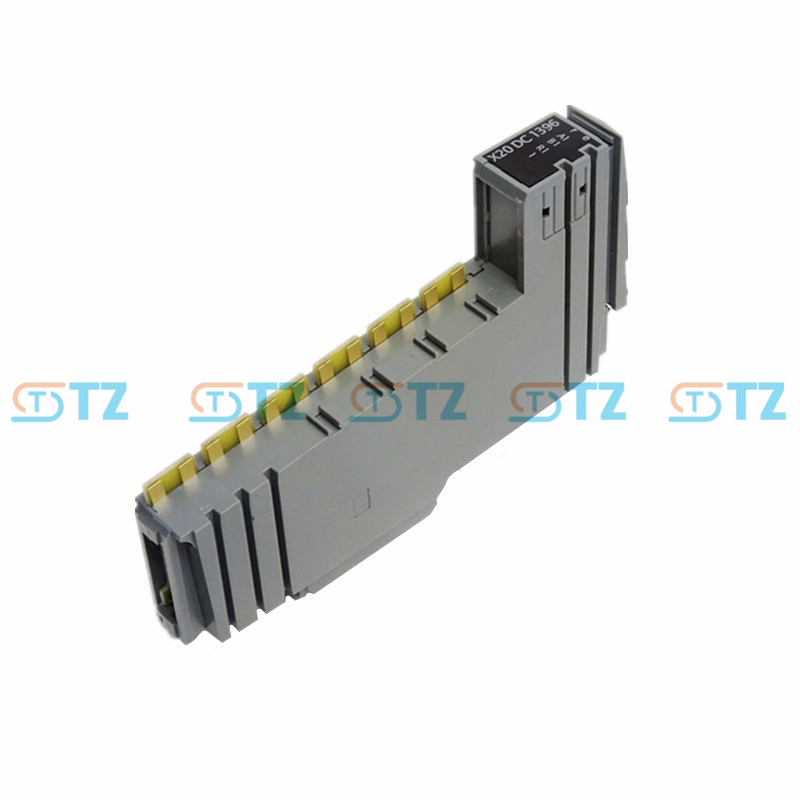

X20DC1396 B&R X20 System Digital Counter Module

X20 digital counter module, 1 ABR incremental encoder, 24 V, 100 kHz input frequency, 4x evaluation. HS CODE : 8538909200

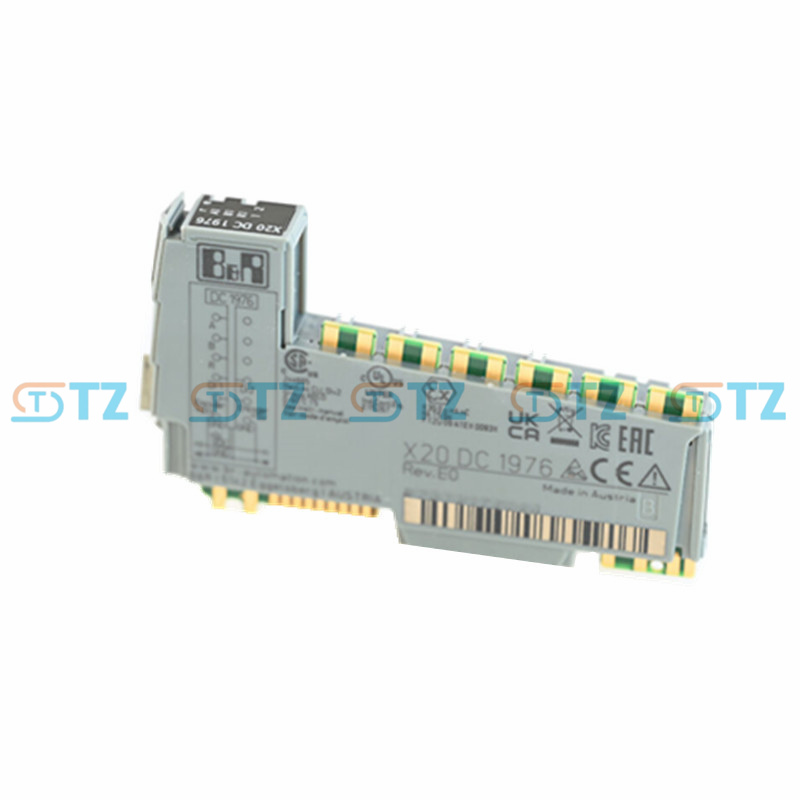

X20DC1976 B&R X20 System Digital Counter Module

X20 digital counter module, 1 ABR incremental encoder, 5 V (single-ended), 250 kHz input frequency, 4x evaluation, encoder monitoring, NetTime function. HS CODE : 8538909200

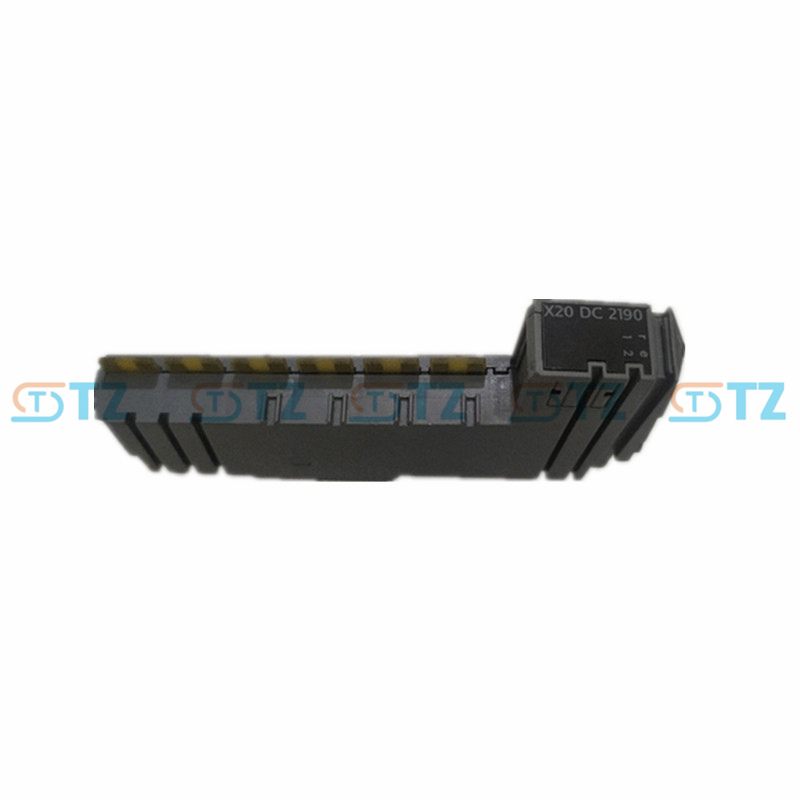

X20DC2190 B&R X20 System Digital Counter Module

X20 digital counter module, ultrasonic path measurement module, interfaces: EP start/stop, DPI/IP, 2 path measurement rods, 4 path recorders. HS CODE : 8538909200

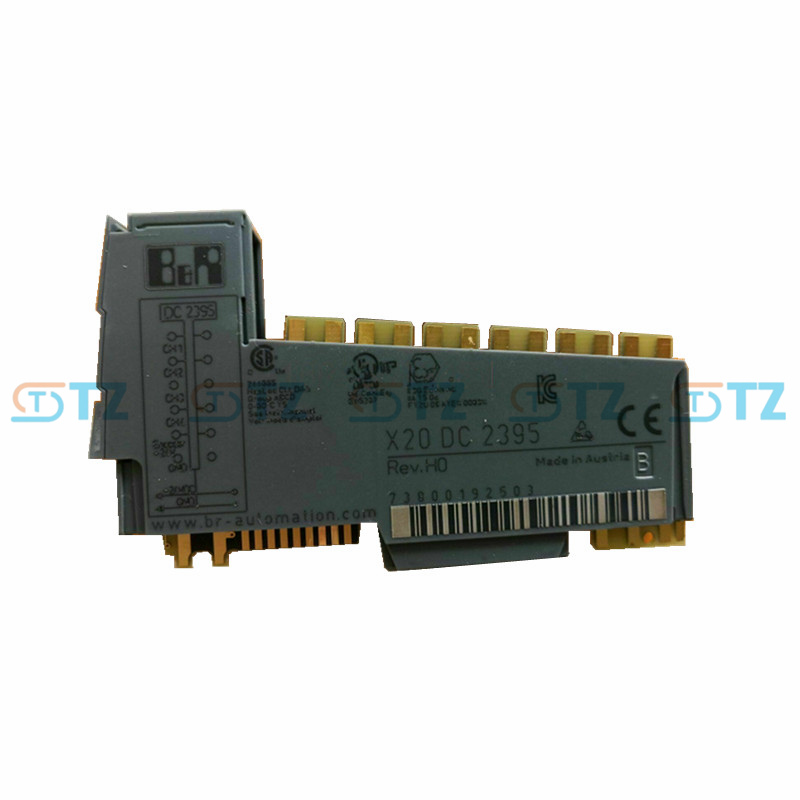

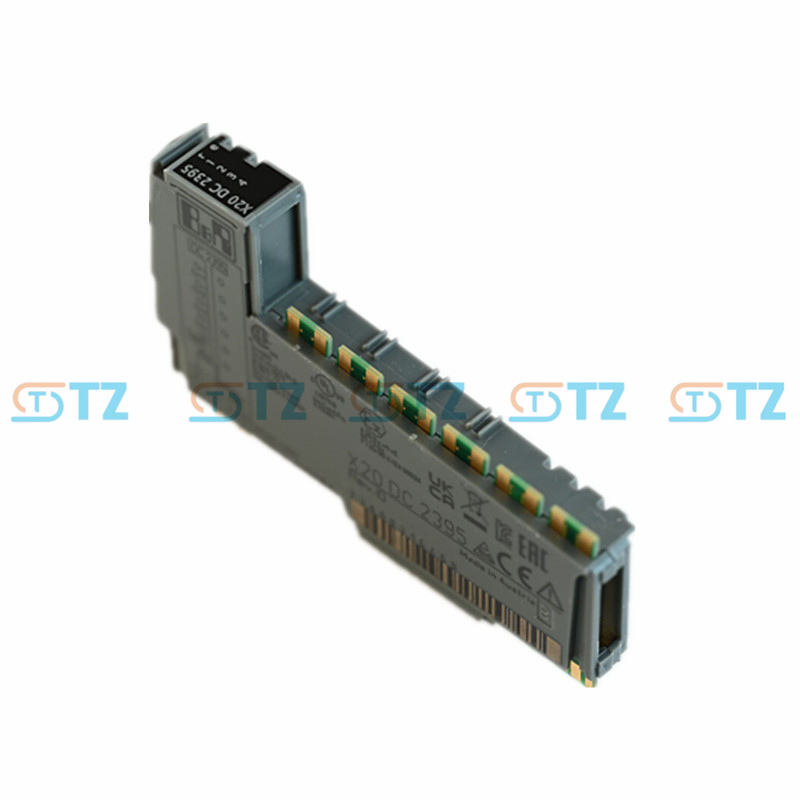

X20DC2395 B&R X20 System Digital Counter Module

X20 digital counter module, 1 SSI absolute encoders, 24 V, 1 ABR incremental encoders, 24 V, 2 AB incremental encoders, 24 V, 4 event counters or 2 PWM, local time measurement functions HS CODE : 8538909200

X20DC2396 B&R X20 System Digital Counter Module

X20 digital counter module, 2 ABR incremental encoder, 24 V, 100 kHz input frequency, 4x evaluation. HS CODE : 8538909200

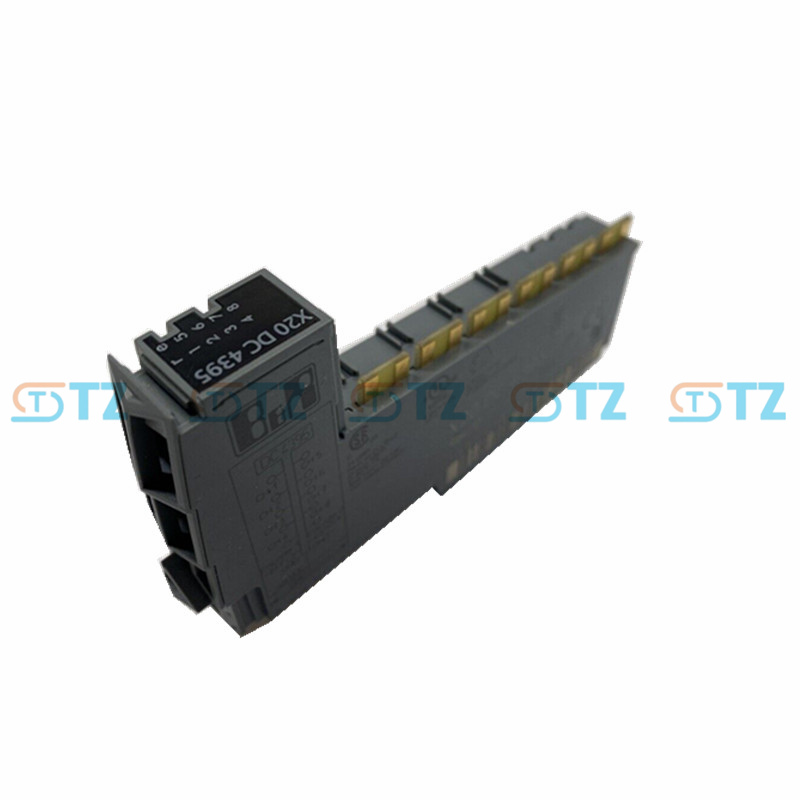

X20DC4395 B&R X20 System Digital Counter Module

X20 digital counter module, 2 SSI absolute encoders, 24 V, 2 ABR incremental encoders, 24 V, 4 AB incremental encoders, 24 V, 8 event counters or 4 PWM, local time measurement functions. HS CODE : 8538909200

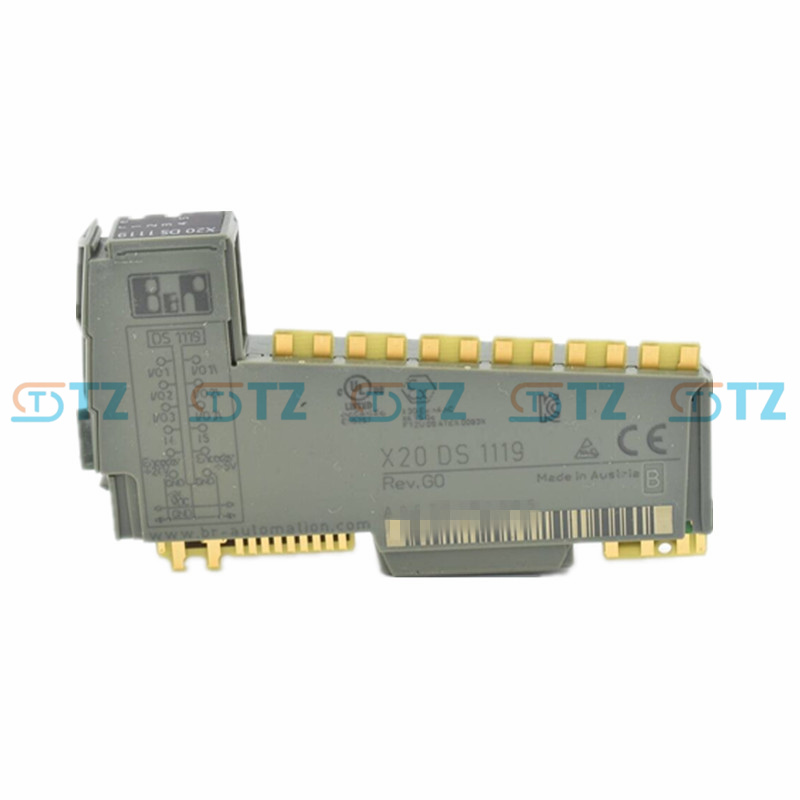

X20DS1119 B&R X20 System Multifunction Digital Signal Processor

X20 multifunction digital signal processor, 3 digital channels 5 V (symmetrical) configurable as inputs or outputs, 2 digital input channels 24 V (asymmetrical), max. 2 event counters, 1 universal counter pair as AB counter or up/down counter, linear movement generator (A/B, direction/frequency) with 1 reference pulse, 1 SSI absolute encoder, NetTime function. HS CODE : 8538909200

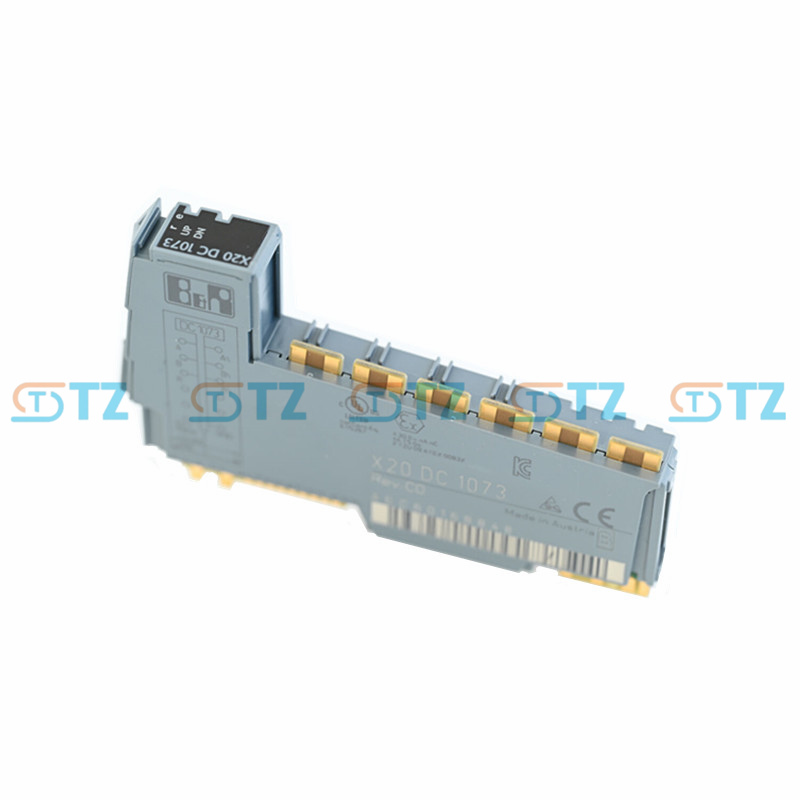

X20DC1073 B&R X20 System Digital Counter Module

X20 digital counter module, 1x SinCos, 1 Vss, 400 kHz input frequency, encoder monitoring, NetTime function. HS CODE : 8538909200

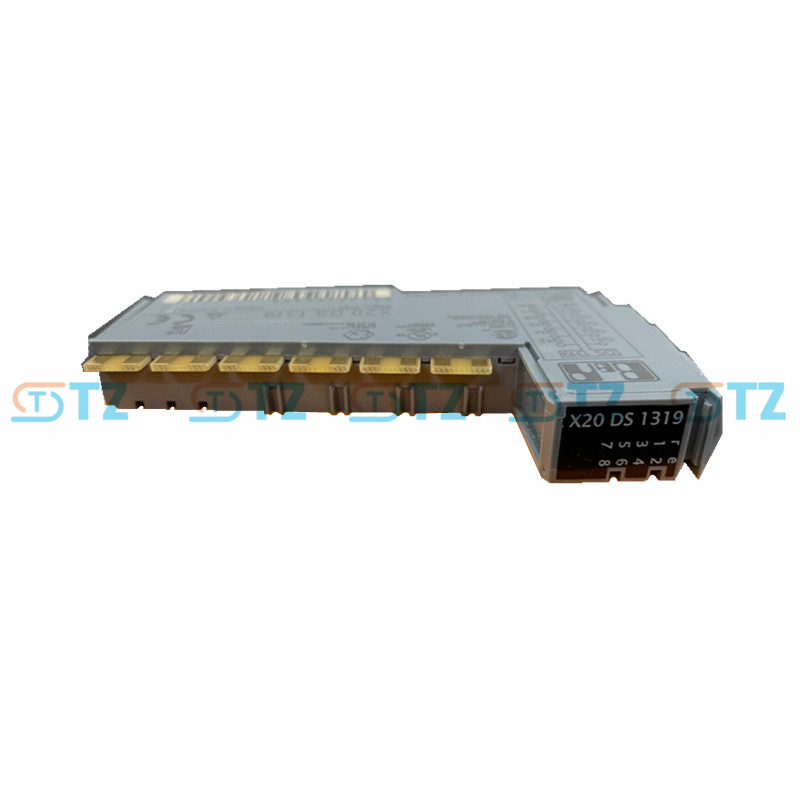

X20DS1319 B&R X20 System Multifunction Digital Signal Processor

X20 multifunction digital signal processor, 4 digital input channels, 4 digital channels configurable as inputs or outputs, 2 event counters 1 universal counter pair as AB counter or up/down counter, linear movement generator (A/B, direction/frequency) with max. 2 reference pulses, SSI absolute encoder, NetTime function. HS CODE : 8538909200

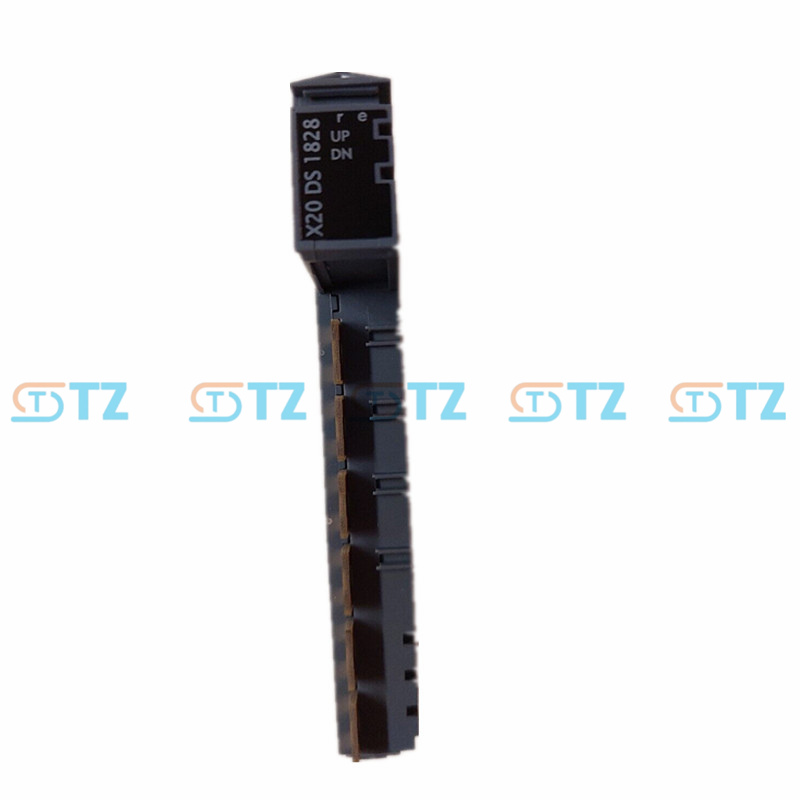

X20DS1828 B&R X20 System Digital Signal Module

X20 digital signal module, 1 HIPERFACE interface, NetTime function. HS CODE : 8538909200

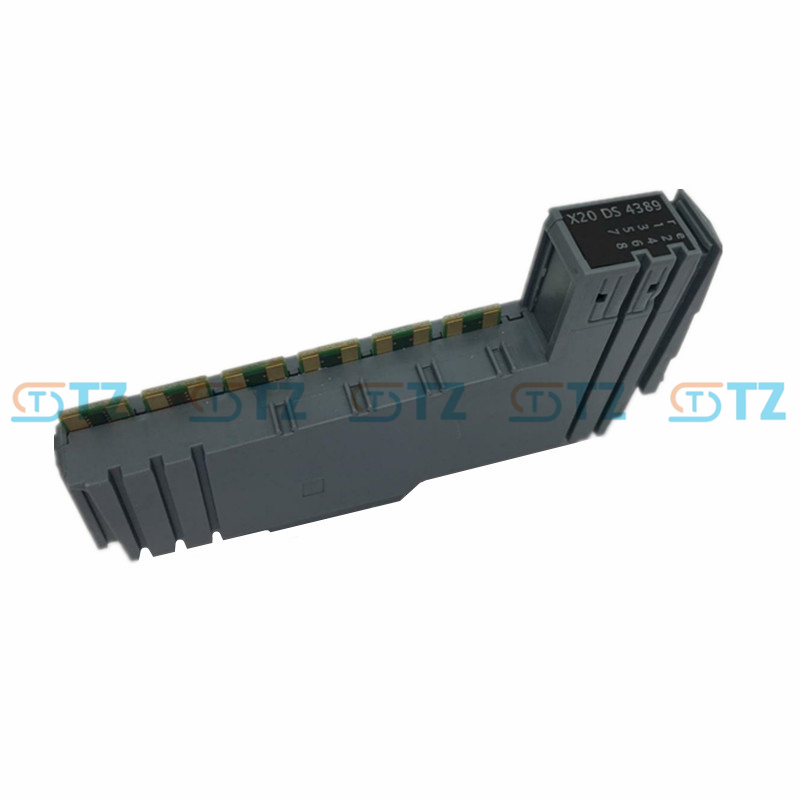

X20DS4389 B&R X20 System Digital Signal Module

X20 digital signal module, 4 digital inputs, 24 VDC, 4 digital outputs, 24 VDC, 0.1 A, oversampling I/O functions, time-triggered I/O functions, NetTime function. HS CODE : 8538909200
