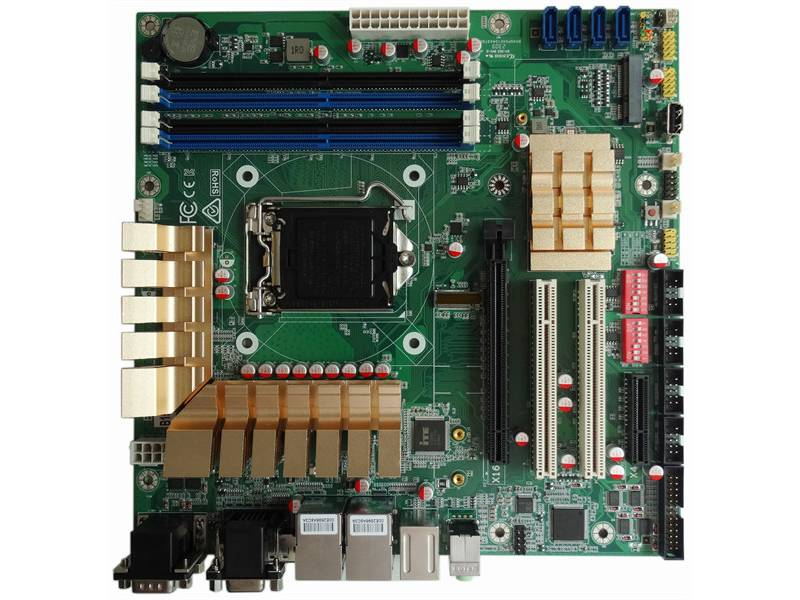

B150 Chip Micro ATX Industrial Motherboard 2LAN 6COM 13USB 4slots(2PCI)

MATX-B150AH26D

Micro ATX Industrial Motherboard, Intel@ PCH B150 Chip,  2LAN/6COM/13USB,  4 slots(2PCI),Support LGA1151  6th、7th、8th、9th generation Intel®Core CPU



MATX-B150AH26D Micro ATX Industrial Motherboard, Intel@ PCH B150 Chip,  2LAN/6COM/13USB,  4 slots(2PCI)



Product Introduction

Industrial Micro-ATX motherboards provide desktop power in a standardized form factor compatible with a wide range of industrial chassis, suitable for embedded applications where a full-sized ATX board won’t fit.



Product Features

■ Support LGA1151 architecture 6th、7th、8th、9th generation Intel®Core CPU

■ 2×LAN Intel GbE (I211/I219)

■ VGA,DP,HDMI display interface

■ 6×COM RS232,COM3 / COM4 support RS485

■ 6×USB3.0, 7×USB2.0(6×USB2.0 pins, 1×USB2.0 upright on board)

■ 8 bits GPIO

■ 1PCIEx16;1PCIEx4; 2PCI expansion

■256S watchdog

■Support hardware one-click restore

Specification

CPU/GPU

Support LGA1151 architecture 6th、7th、8th、9th generation Intel® Core™  CPU  i7/ i5/ i3, Pentium®/ Celeron®

Chip

Intel@ PCH B150

Memory

4×DDR4 DIMM slot,up to 64GB SDRAM

Storage

4×SATA , 1×MSATA, 1×M.2

Sound card

Realtek HD Audio

NIC

2 ×LAN Intel GbE, I211/I219 Chip

Graphic card

CPU integrated graphic

Display card

VGA, DP, HDMI

USB2.0

7(6×USB pins,1×USB upright on board)

USB3.0

6(Backplane I/O)

GPIO

8 bits

COM

6COM RS232(COM3 / COM4 support RS485)

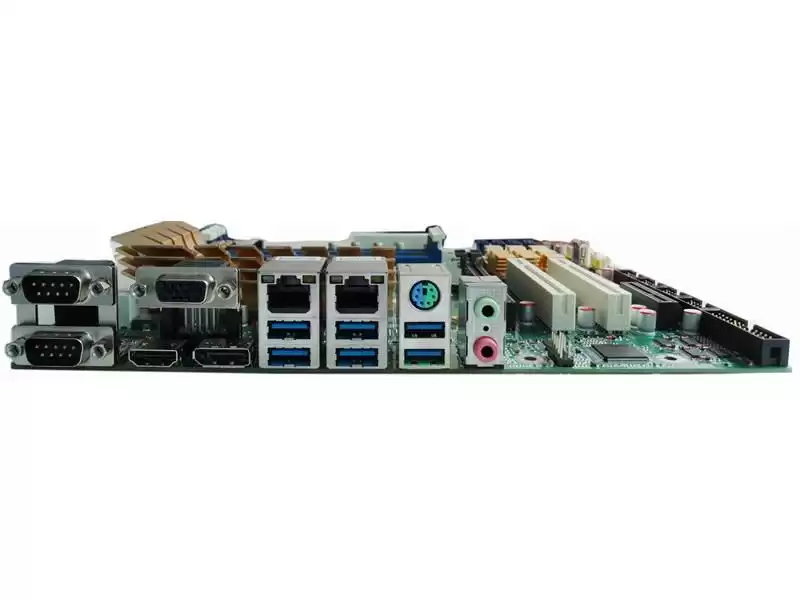

Backplane I / O

2RS232, VGA+DP+HDMI,  2 RJ45 LAN+PS/2+6USB3.0,  2 audio jack

Board I / O

6USB2.0 , 1 upright USB,  4COM ,  front audio , CLR_CMOS ,  CPU fan power ,  System fan power , GPIO,  Front panel ,  24P+8P ATX, LPT, One-Click Restore Pin

Expansion

1PCIEx16;  1PCIEx4;  2PCI

System

Support Windows(WIN7,WIN 10 ...),Linux



Mechanical & Environmental

Power Supply

ATX

Heat dissipation

Fan

Size(L×W)

244mm×244mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environment humidity

0~90% air humidity,no-condensation

Packing list

MATX-B150AH26D motherboard×1,SATA data cable×1,interface bezel×1,COM cable x2
