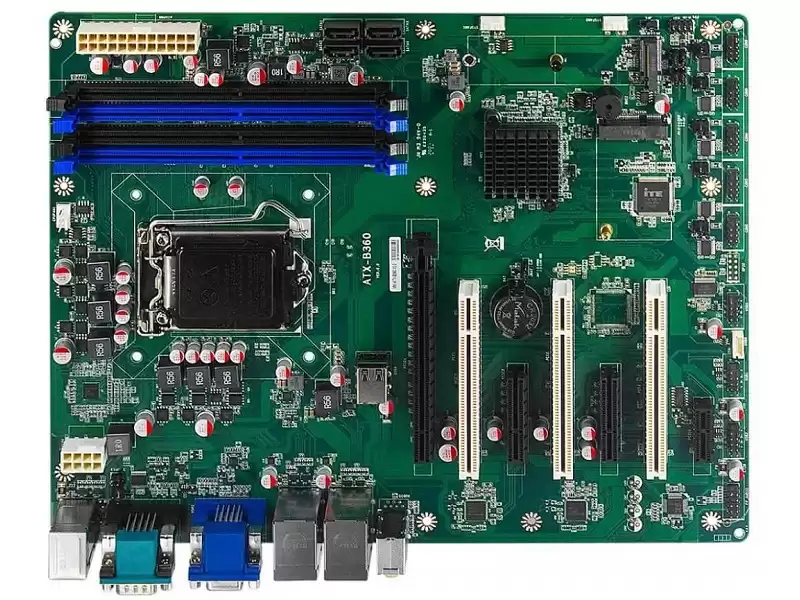

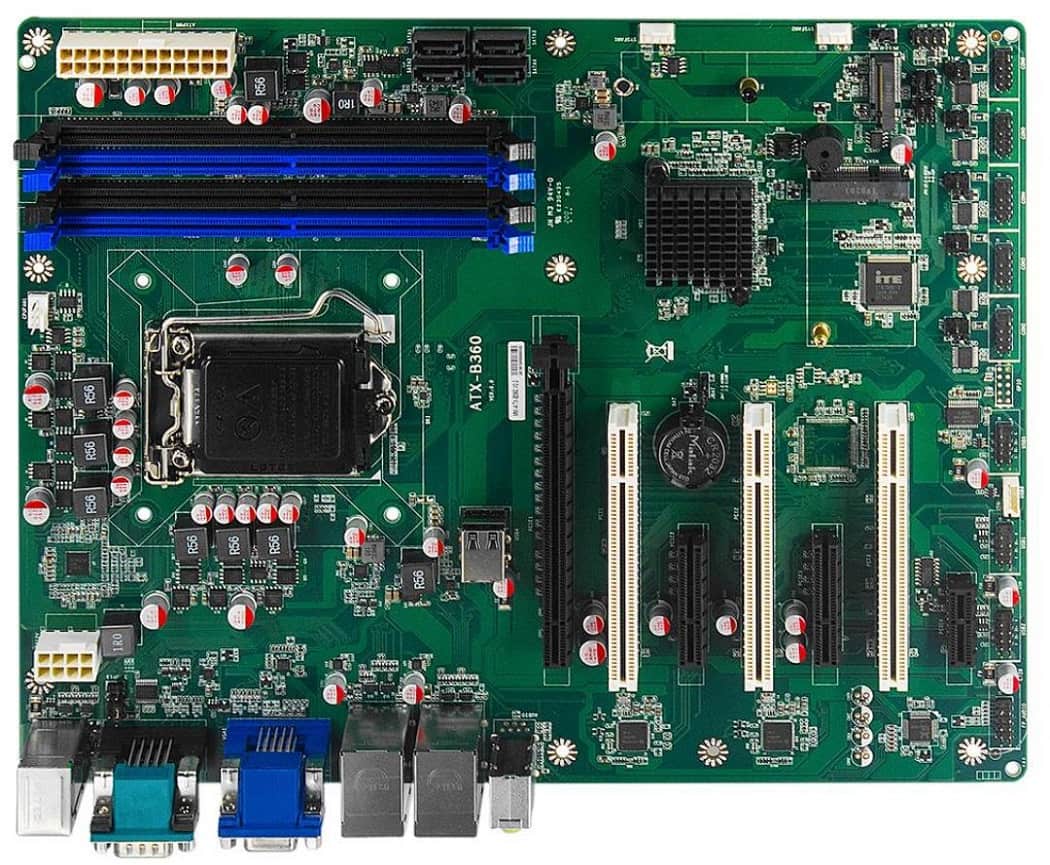

B360 ATX Industrial Motherboard 2LAN/6COM/13USB 7 Slots 3PCI

ATX--B360AH26D

ATX Industrial Motherboard, Intel@ PCH B360 Chip,  2LAN/6COM/13USB,  7 slots(3PCI)



ATX Industrial Motherboard Intel@ PCH B360 Chip 2LAN/6COM/13USB 7 slots 3PCI



Product Introduction

This motherboard to be designed for industrial applications where a high number of COM ports, USB ports, and expansion slots are required. The use of an Intel B360 chipset suggests compatibility with certain Intel processors, and the inclusion of multiple LAN ports indicates a focus on networking capabilities.



Product Features

■ Support LGA 1151 architecture for 8th and 9th generation Intel® Core processors

■ 2 Intel Gigabit LAN ports

■ VGA+HDMI+DP Display Interface

■ 6COM RS232 Serial, 8-bit GPIO

■ 7USB2.0, 6USB3.0

■ M.2 + MINI PCIE

■ 1PCIEx16; 2PCIEx4; 1PCIEx1; 3PCI Expansion

■ 256-level Watchdog

■1PCIEx16; 2PCIEx4; 1PCIEx1;3PCI Expansion

■ 256-level Watchdog

ATX Motherboard Intel PCH B360 Chip 2 LAN Ports

Intel PCH B360 Chip ATX Motherboard

Specification

CPU/GPU

Supports LGA 1151 architecture for 8th and 9th generation Intel® CoreCPU, i7/ i5/ i3, Pentium®/ Celeron®

Chip

Intel@ PCH B360

Memory

4×DDR4 DIMM slots,up to 64GB SDRAM

Storage

4×SATA3.0,M.2 NFGG

Sound card

RealtekHD Audio

NIC

2×LAN Intel GbE

Graphic card

CPU integrated graphics card

Display interface

VGA,HDMI, DP

USB2.0

7

USB3.0

6

GPIO

8 bits,4 in 4out

COM

6COM RS232

BackplaneI / O

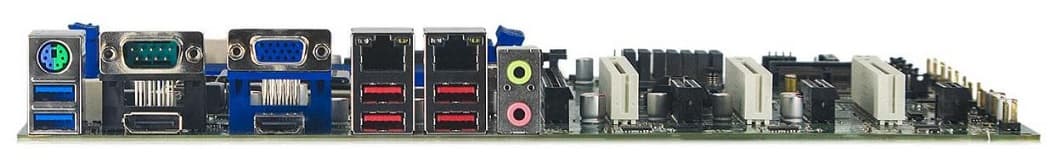

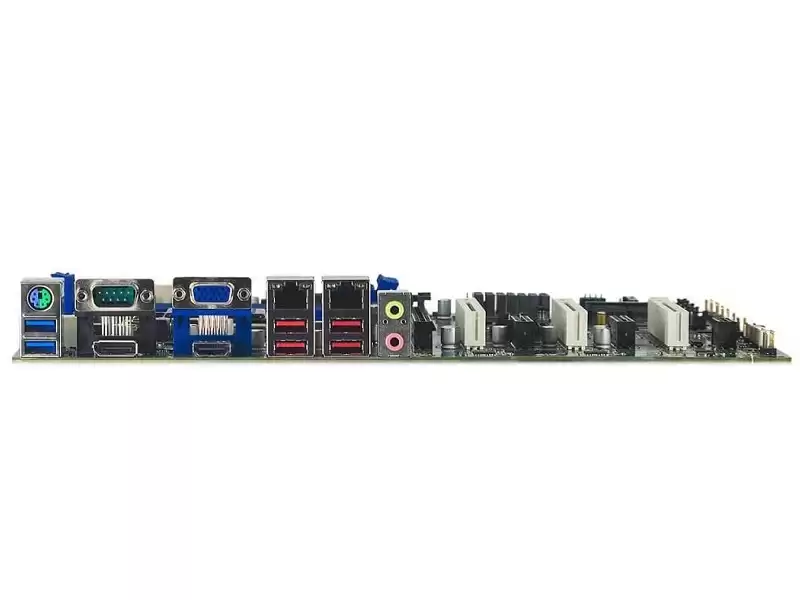

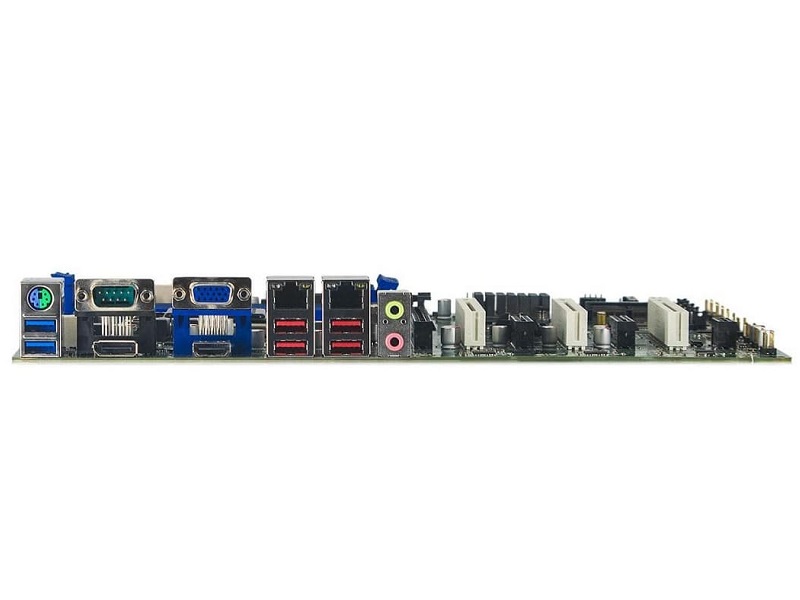

PS2+2USB3.0, COM+DP,  VGA+HDMI, 2 RJ45 LAN+4USB3.1,Line-out+Mic-in

BoardI / O

7USB2.0 , 5COM , front audio , CLR_CMOS , CPU fan power , System fan power ,GPIO, Front panel ,  24P+8P ATX

Expansion

1PCIEx16;2PCIEx4;1PCIEx1;3PCI,MINI PCIE,支持PCIE3.0

System

 Support Windows(WIN 10 ...),Linux

Mechanical & Environmental

Power supply

 ATX

Heat dissipation

Fan

Size(L×W)

305mm×244mm

Operating temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90% air humidity, non-condensing

Packing List

ATX-B360AH26D motherboard×1,SATA data cable×1,interface bezel×1,COM cablex2
