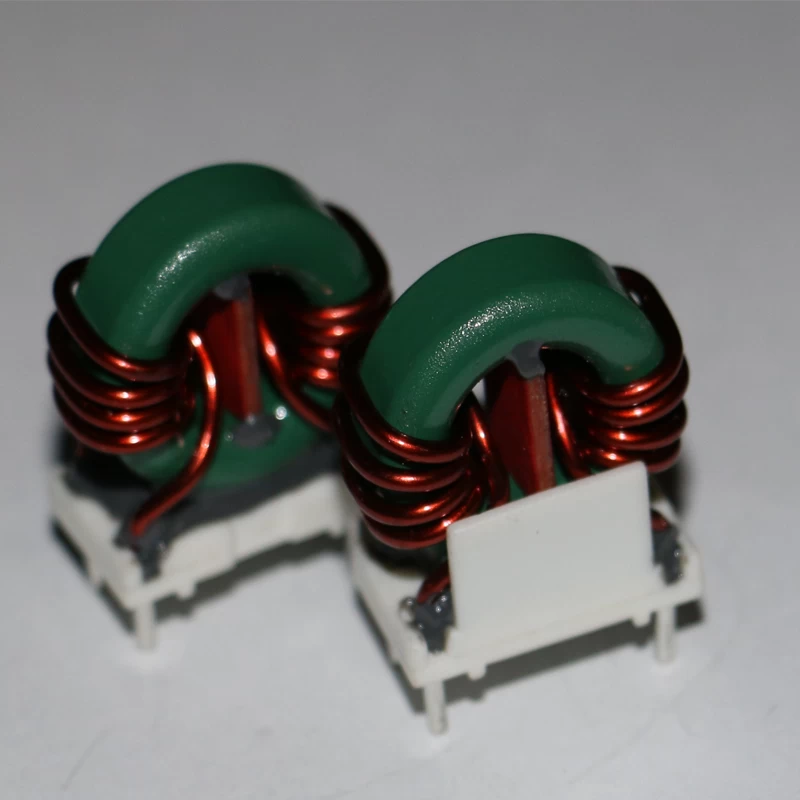

B36V Toroidal Inductor Common Mode Choke with Base

Common mode inductor with base has high efficiency, high power, high current, low power loss, low temperature rise,high temperature grades also available. As excellent EMI suppressor, SMT and low profile also available.



Professional magnetic components factory, we supply transformer bobbins, ferrite cores, coil products. Mainly for high frequency electronic transformers, coil inductors, DC converters. Custom made available!


Quick Details

Part Number: MCT B36V with Base Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor, High requency



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: B36V Toroidal Inductor Common Mode Choke with Base

Applications:  Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

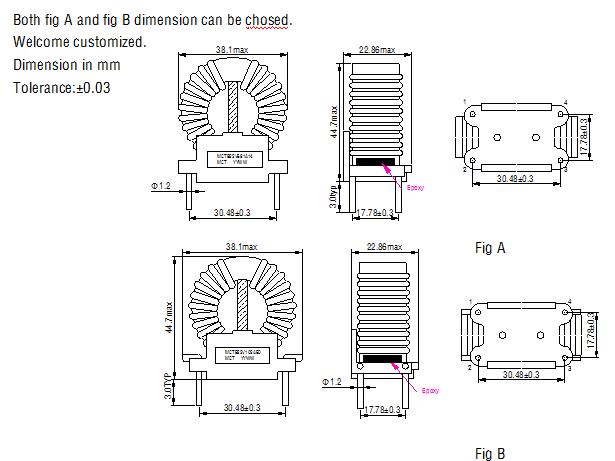

Product Specification

Custom processing with a base to facilitate the fixed ring inductance common mode inductance

Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTB36V333A40

33.0

0.20

4.0

MCTB36V223A50

22.0

0.10

5.0

MCTB36V153A60

15.0

0.07

6.0

MCTB36V103A70

10.0

0.05

7.0

MCTB36V682A80

6.80

0.04

8.0

MCTB36V472AA0

4.70

0.025

10.0

MCTB36V332AF0

3.30

0.015

15.0

MCTB36V222A12

2.20

0.012

18.0

MCTB36V222A19

1.50

0.008

25.0

MCTB36V222A1E

1.00

0.006

30.0


We can decign.If you have any requests, please contact us, we will give you fast reply

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu
