All the BA power diesel generator sets are available to be with standard silent canopy, super silent canopy and container type canopy for your options.

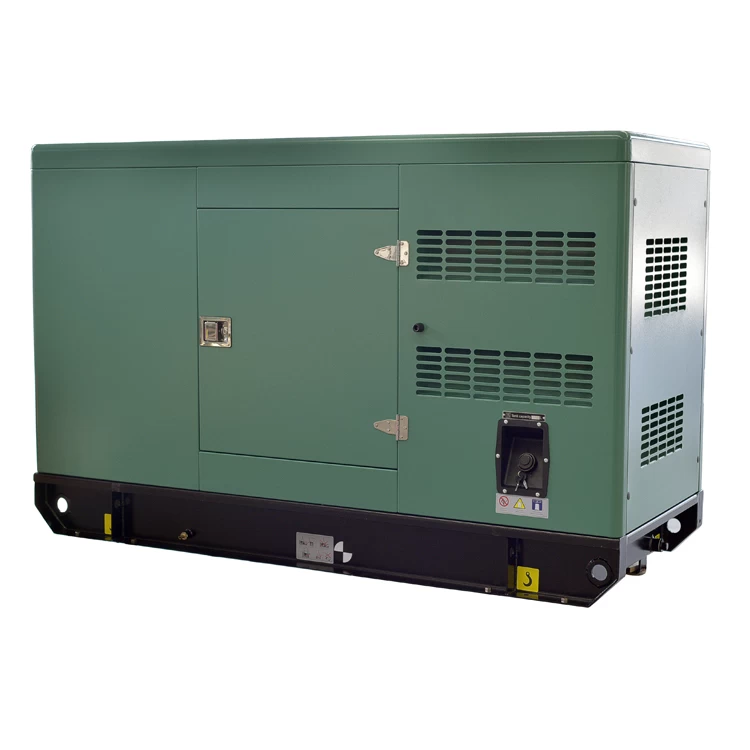

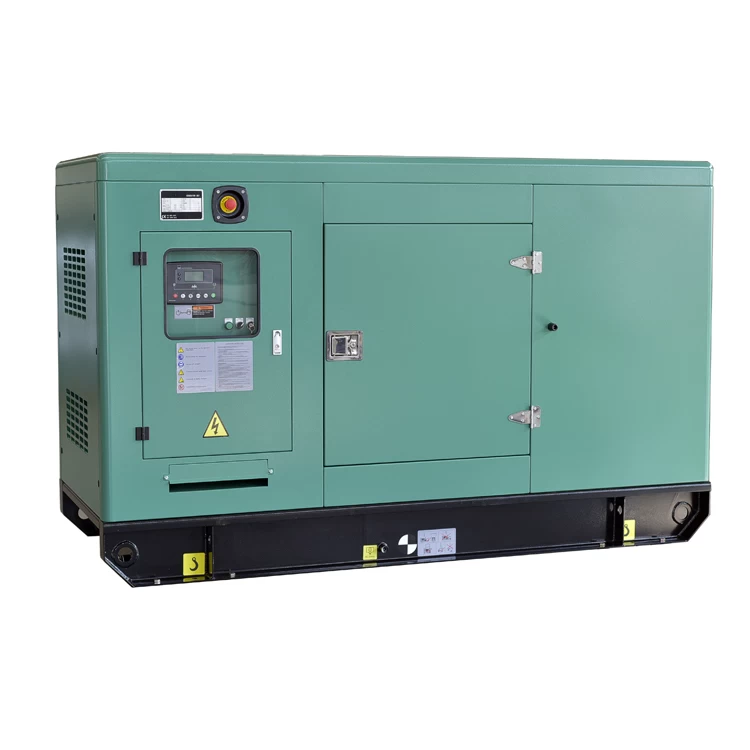

Cummins diesel generator silent 64kw 80kva with below details:

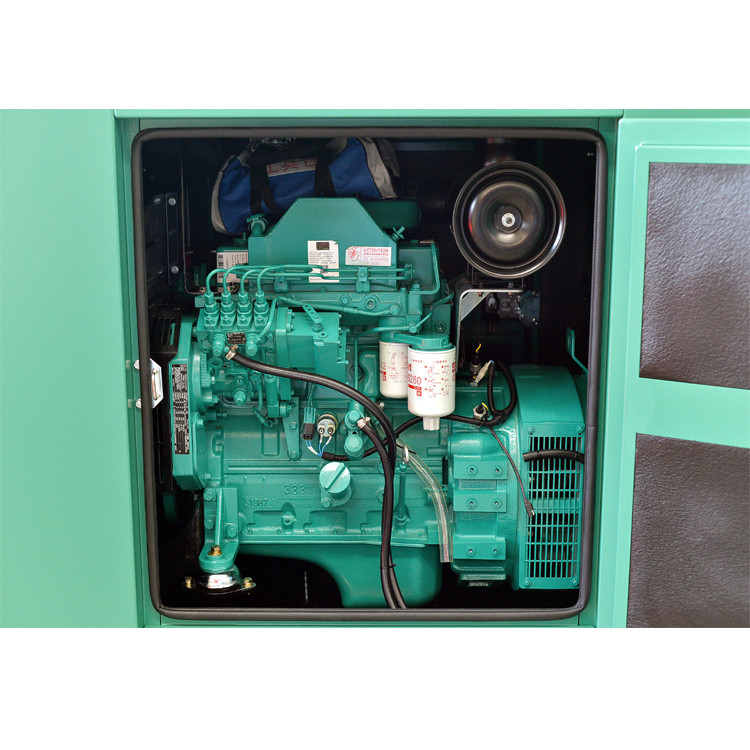

Engine: Dongfeng Cummins 4BT3.9-G11
Alternator: Leroy-somer LSA44.3S3/64KW
Control panel: Deepsea 6120 as the standard supply, Comap is optional.
MCCB: Delixi CDM1-225/3300L-160A
ATS: AISIKAI SKT1 160A/4P
Super Silent Canopy Size: 2450*1000*1650mm

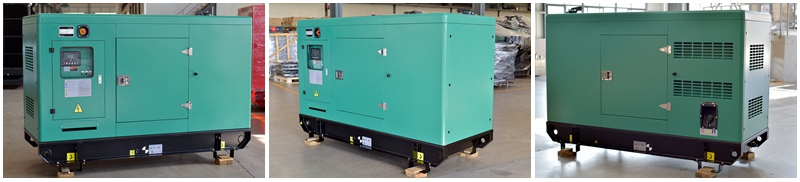

Silent Generator Canopy performance Features:
-
More than 2mm steel to make the silent canopy.
-
High quality paint materials and strict powder paint processing.
-
Large Scale Impendance Combined type silencer effectively reduce the noise of generator set.
-
Stainless Steel door locks and hings, 180° revolvable and disassemble door for easy maintenance.
-
High quality soundproof and insulation materials can effecienctly reduce noise.
-
Transparent Viewing Window make the control panel clear at a glance.
-
Lifting ears mounted in the base frame for easy pull.
-
Elegant appearance and reliable quality.
-
There are silent canopy for less than 500kw diesel generator sets, and container type canopy for more than 625kva power gensets.
-
ISO standard sea container 20GP, 40GP, 40HQ for options.
-
Standard sea container is easier for shipping.
-
The noise level is available for 85dba at 1m, 75dba at 7m, 60-65dba at 15m, or customized requst.

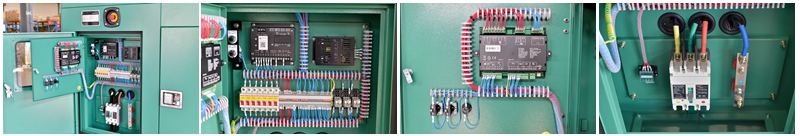

Control System in details with control panel and switch cabinet together.

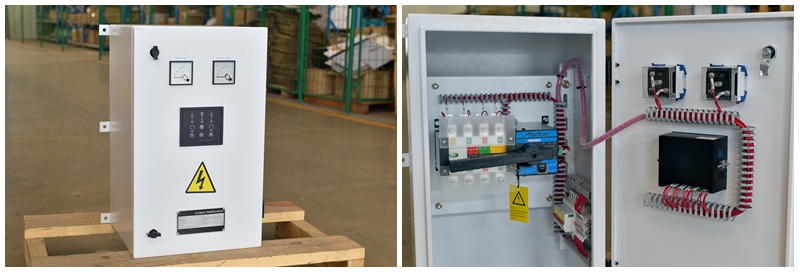

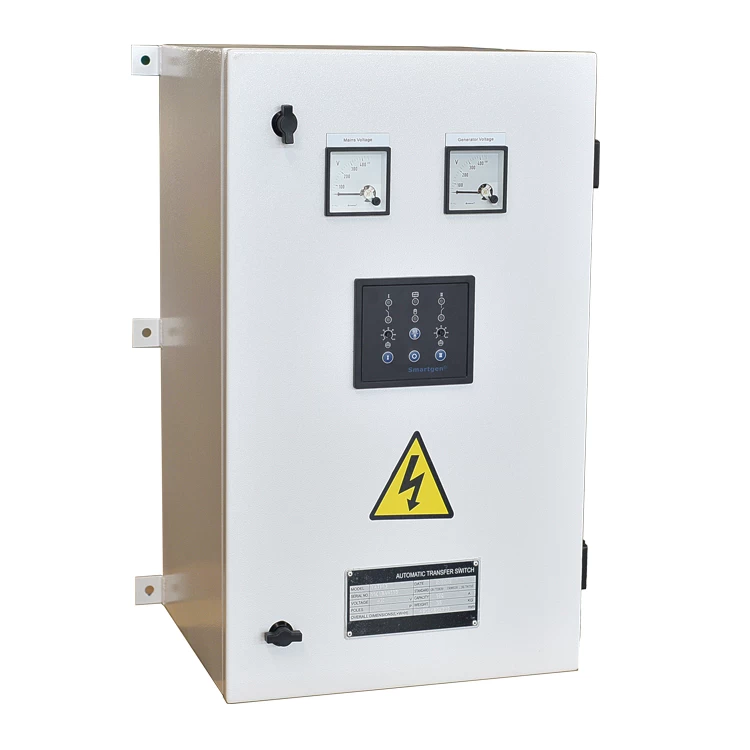

Automatic Transfer Switch(AISIKAI ATS) for Silent Cummins 64kw generator set
