Dimensions: 5.5cm*6.2cm*12cm
|
Weight: 028KG
|
LocalBus Power：2 to 20 VDC
|
Product Series：Bs200 Serie
|
|

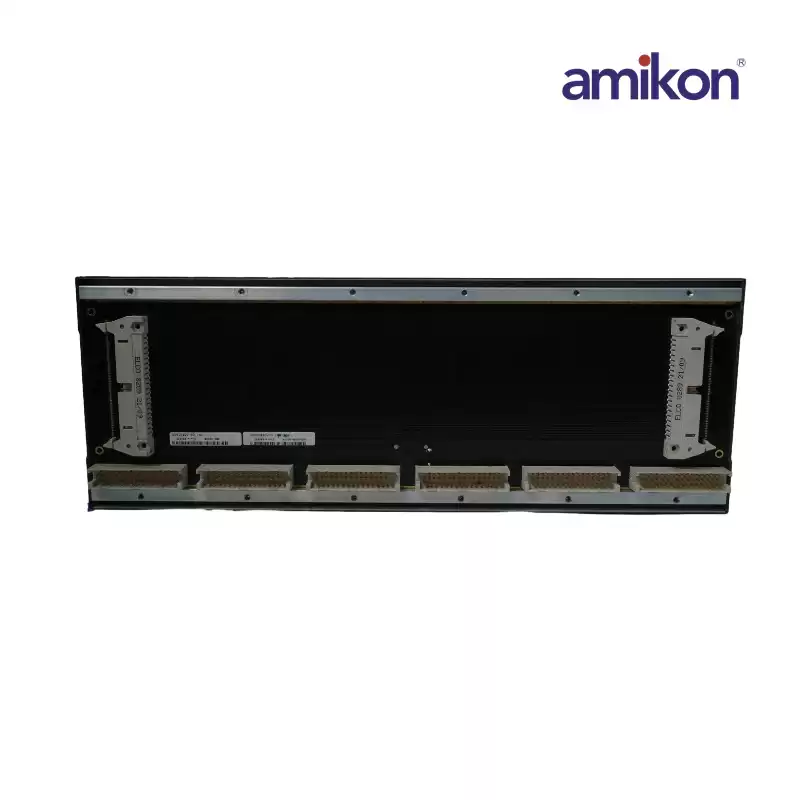

BS206 Backplane
The backplanes BS206 interconnect the M1 controller hardware modules, such as power supplies, CPU modules, and input/output modules, mechanically and electrically. With its robust design, the E series ensures direct mounting on the control cabinet back panel without a DIN rail to optimize the thermal and mechanical connection.
Through this coupling, the heat can be transported through the rear panel of the cabinet housing, in which the cooling of the interior becomes much easier. Frequently, a maintenance-intensive active cooling of the components in the interior can therefore be avoided. A functional earth connection is prepared.
|
Country of Origin: Austria
Type:6-Slot Backplane
Features:
6 module slots accommodate various hardware components.
Seamless connection and compatibility.
Robust mechanics and compact design ensure stability.
Vibration-proof fixation of modules for reliable operation.
|
