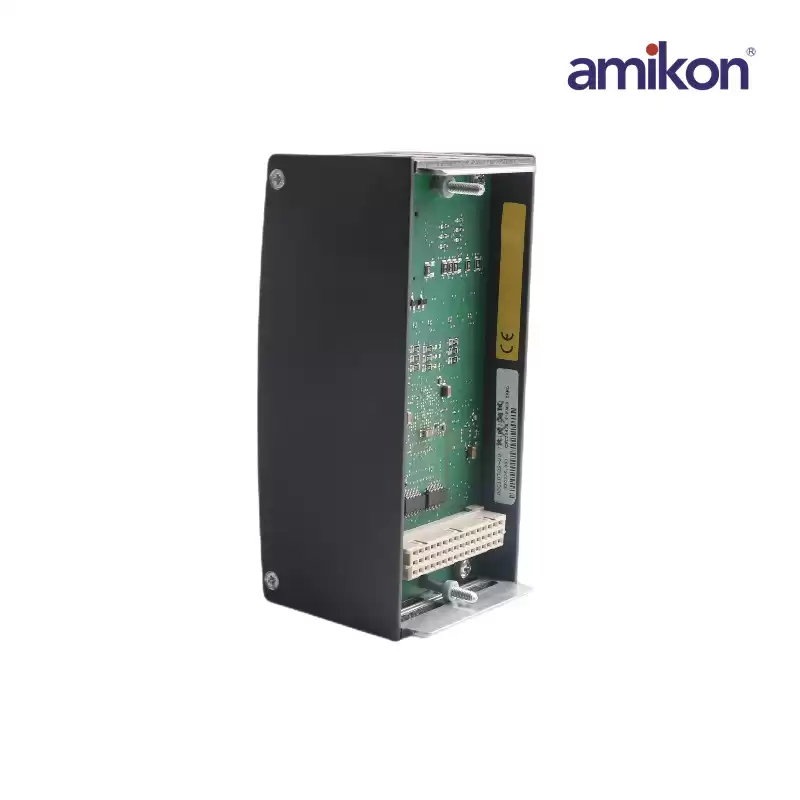

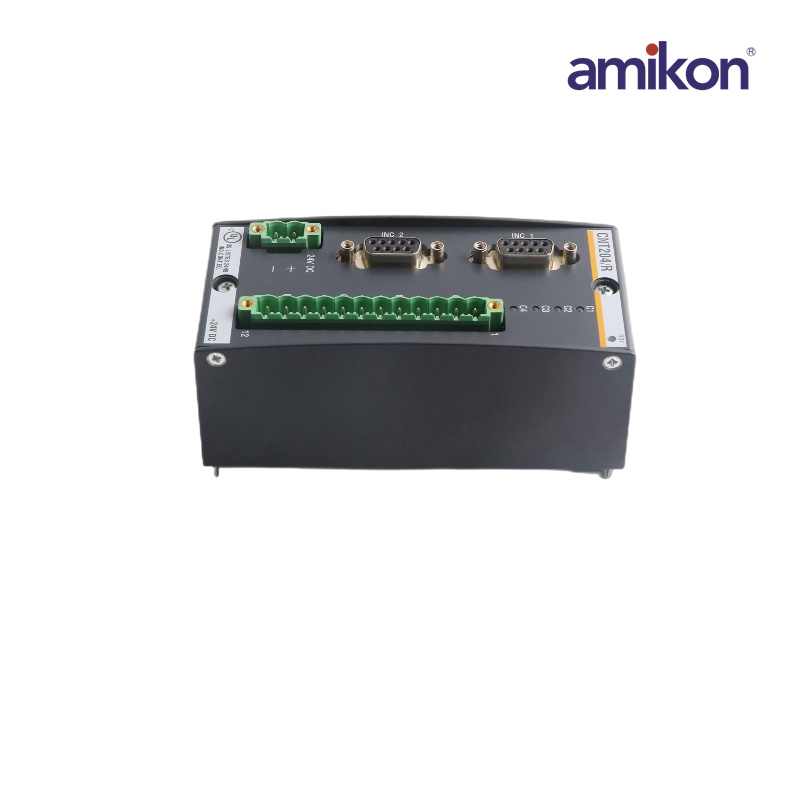

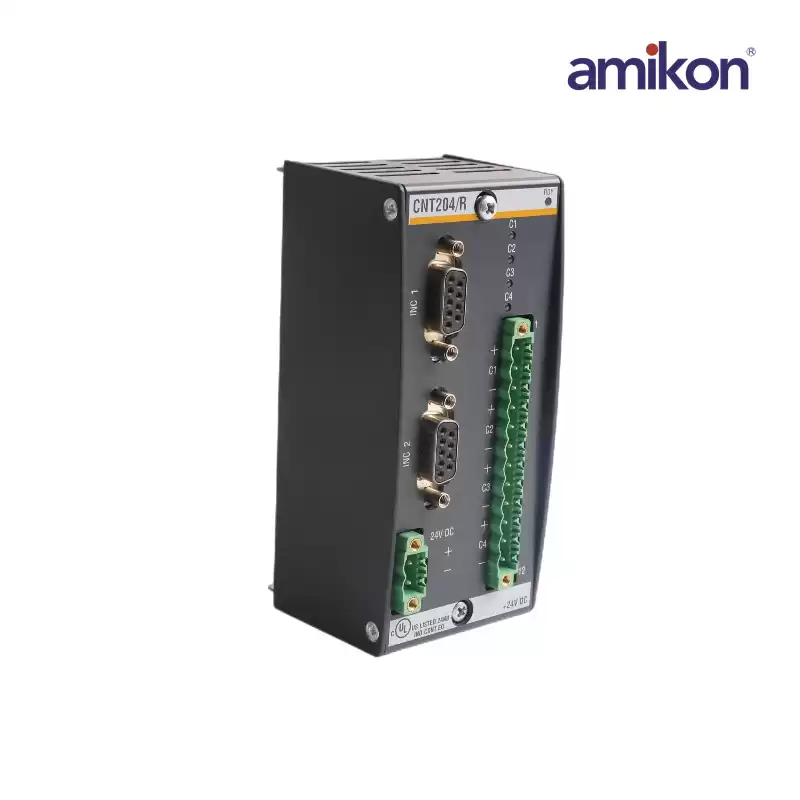

Bachmann CNT204 controller module

Bachmann CNT204 controller module

Dimensions: 23cmx3.5cmx11cm

Weight: 0.72KG

Ambient Temperature：-25°C to +100°C

LocalBus Power：2 to 20 VDC

Features

4 counter inputs for single line pulse generators

Status indication: LED (green) per counter/ initiator input

2 input channels for incremental encoders

Encoder power supply directly from the module via the connectors

Inputs can be synchronized

Monitoring of all supply voltages

Period measurement with 42 ns resolution

Differential measurement (phase shift between C1 and C3 or C2 and C4) with 42 ns resolution

The CNT204 is controller module.The counter module CNT204/x contains four counters for single line pulse generators. Two of the channels can optionally be used as inputs for incremental encoders.

Different programs can be executed virtually in parallel thanks to the real-time multi-tasking. If the CPU performance has to be increased, applications can be transferred easily to more powerful CPU models thanks to the standard programming model.
