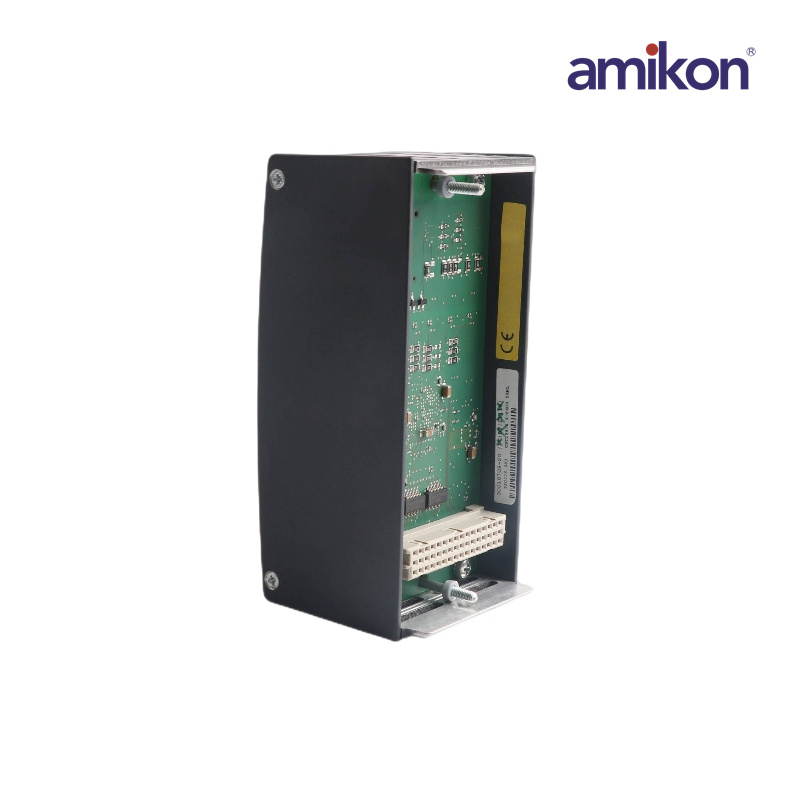

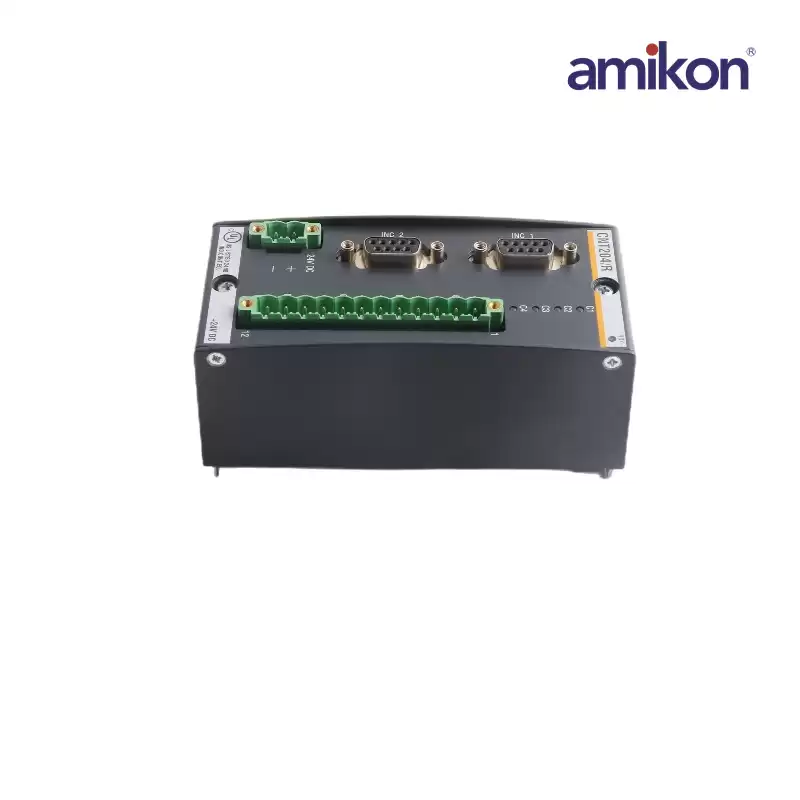

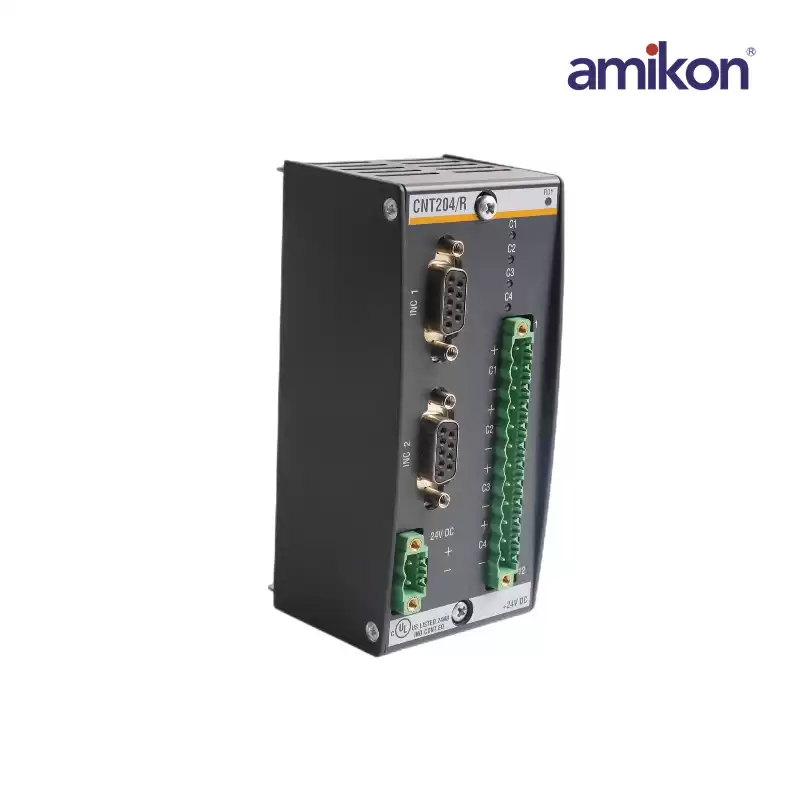

Bachmann CNT204/H Counter Module

Bachmann CNT204/H   Counter Module

Dimensions: 23cmx3.5cmx11cm

Weight: 0.62KG

Ambient Temperature：-25°C to +95°C

LocalBus Power：2 to 25 VDC

Features

4 counter inputs for single line pulse generators

Status indication: LED (green) per counter/ initiator input

2 input channels for incremental encoders

Encoder power supply directly from the module via the connectors

Inputs can be synchronized

Monitoring of all supply voltages

Period measurement with 42 ns resolution

Differential measurement (phase shift between C1 and C3 or C2 and C4) with 42 ns resolution

The CNT204/H is Counter Module.The counter module CNT204/x contains four counters for single line pulse generators.

Two of the channels can optionally be used as inputs for incremental encoders.PROFIBUS® is a field bus that is widely used, particularly in the area of mechanical engineering and plant engineering and even today – in spite of all Ethernet-based fieldbuses – it continues to show increasing quantities.
