Products Detail:
|
Brand
|
BACHMANN
|
|
Part Number
|
DI216
|
|
Product Type
|
Digital Input Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

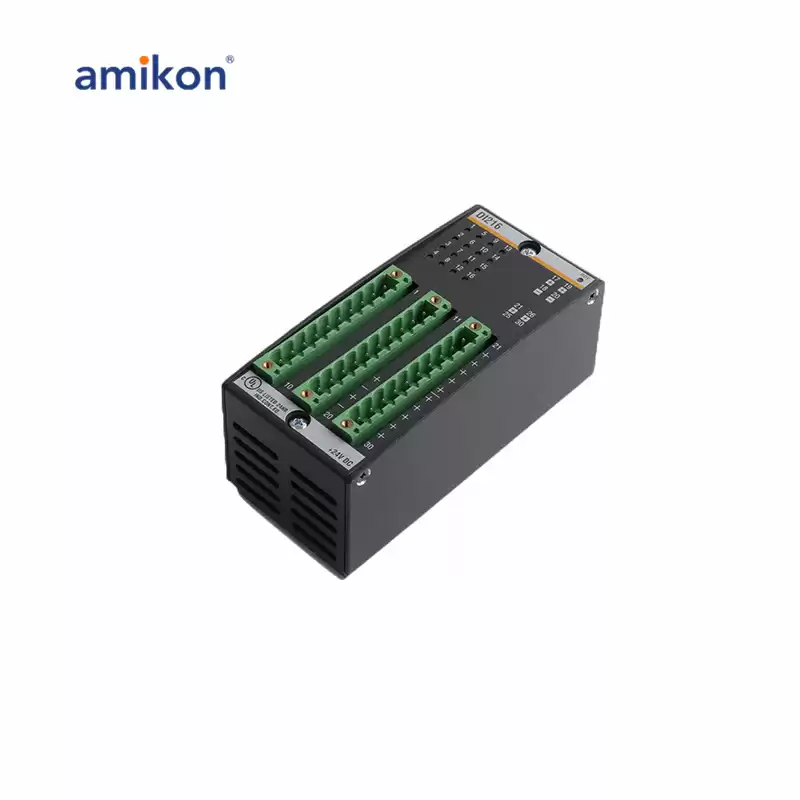

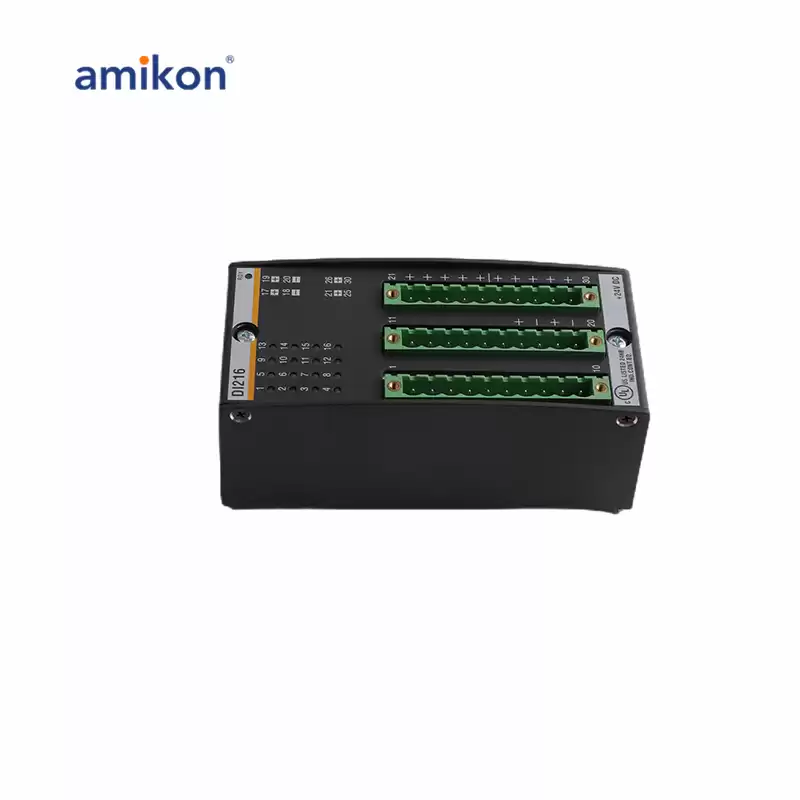

The digital input modules DI216, DI232, DI232 CC, and DI232/np1 are designed to connect up to 16 or 32 digital sensors to the M1 controller. These modules support current sinking logic greater than 2 mA according to EN 61132 type 1, and operate with a nominal input voltage of 24 VDC (ranging from 18 to 34 VDC). The modules feature LED status displays for each channel and provide galvanic isolation of inputs from the system. Additionally, the DI216, DI232, DI232 CC, and DI232/np1 modules allow for configurable interrupt inputs on inputs 1 and 2. The DI232/np1 also supports sink/source inputs for greater flexibility in configuration.
FAQ:
1. What is the purpose of the DI216 module?
The DI216 module is used to connect digital sensors to the M1 controller. It can handle up to 16 digital input channels.
2. What is the input voltage range for the DI216 module?
The DI216 module operates with a nominal input voltage of 24 VDC, with a voltage range of 18 to 34 VDC.
3. How are the inputs configured?
The DI216 module features 16 inputs, and inputs 1 and 2 can be configured as interrupt inputs for faster response times.
