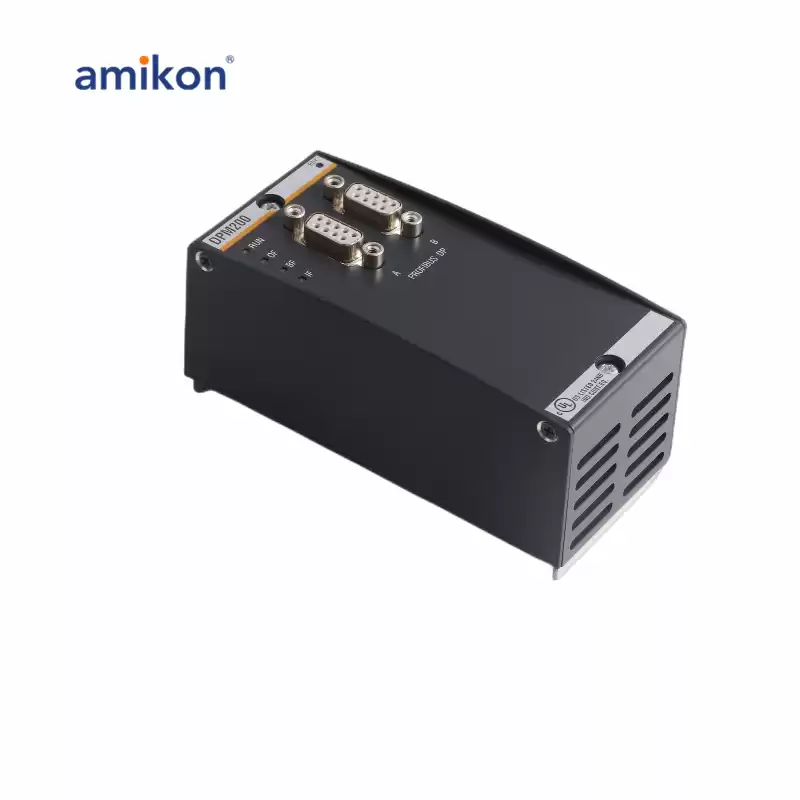

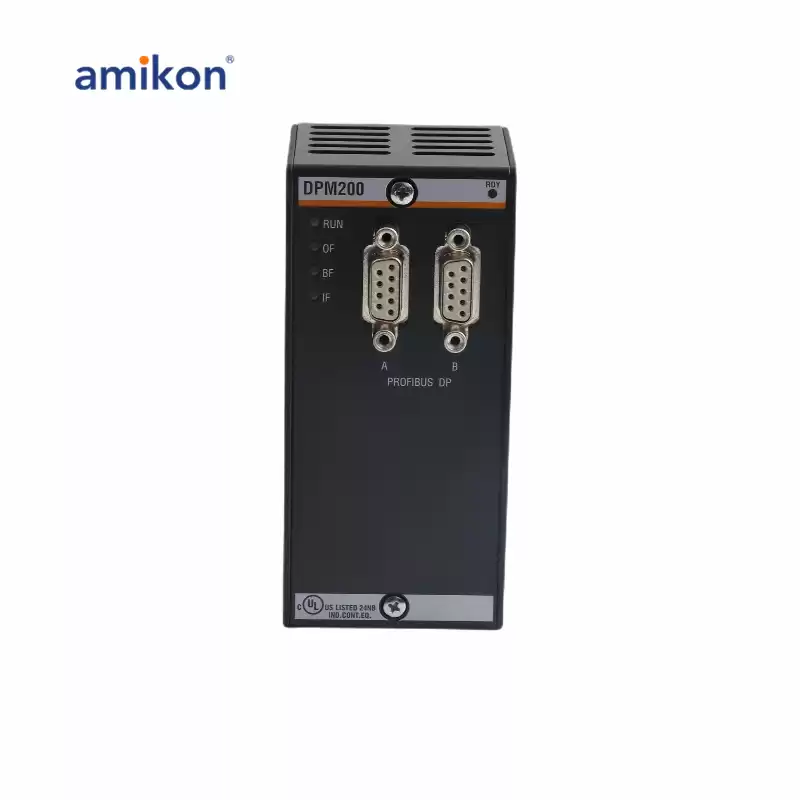

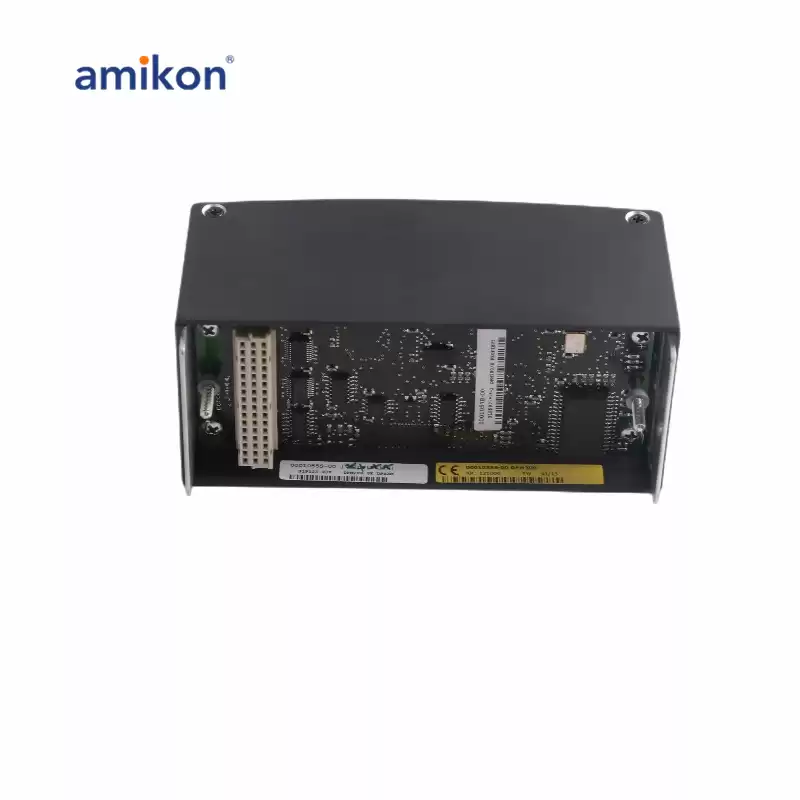

BACHMANN DPM200 fieldbus module

Brand new and original sealed//Same Day Shipment

The fieldbus module DMP200 for PROFIBUS® DP (Distributed Peripherals) can be operated as DP master, DP slave or as combined master/slave, which in a multi-master network offers variables for another master.
The process data is available to the application program as logical I/O module and thus can be reached via the process image or via the function interface.
DPM200 Data sheet	Up to 3 DPM200 modules per M1 controller Transfer rate 9.6 Kbaud to 12 Mbaud.
	Two internal bridged connections for loop-through of the cable Galvanic isolation between fieldbus and controller.
	8 kByte shared memory for process data image Consistency lock for data blocks is configurable.
