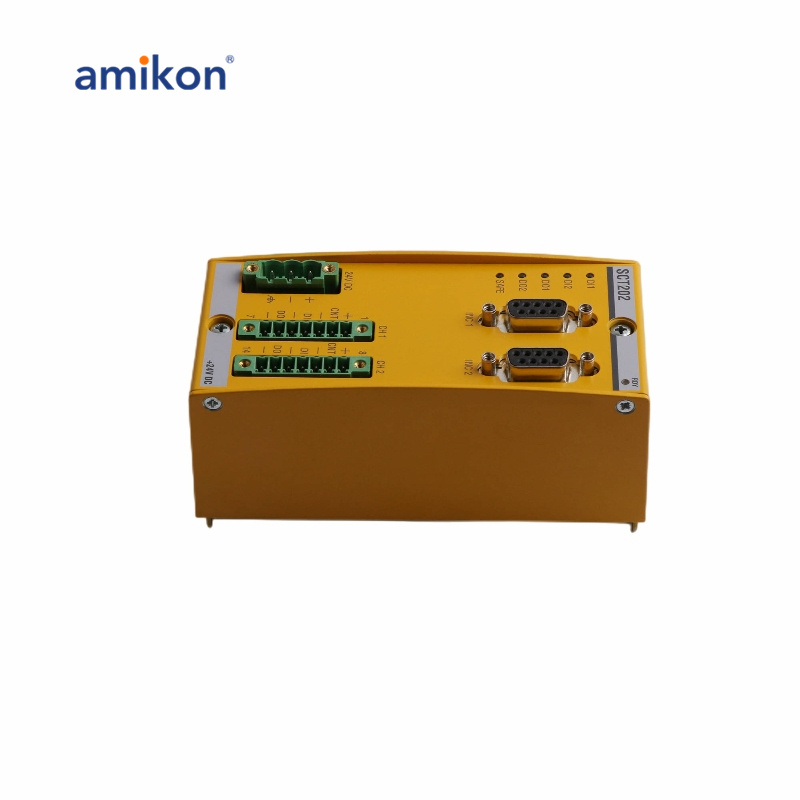

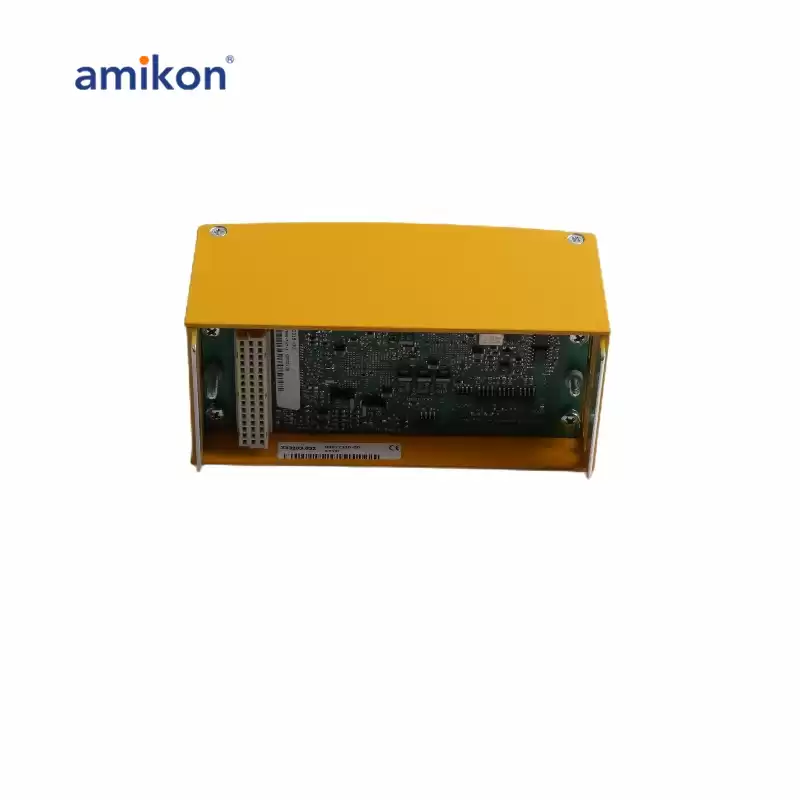

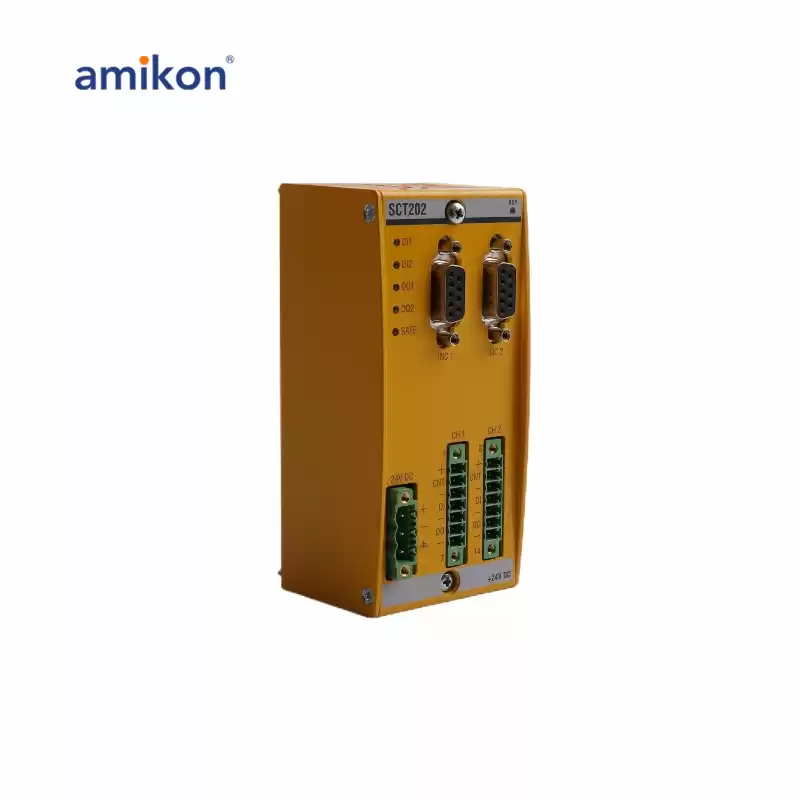

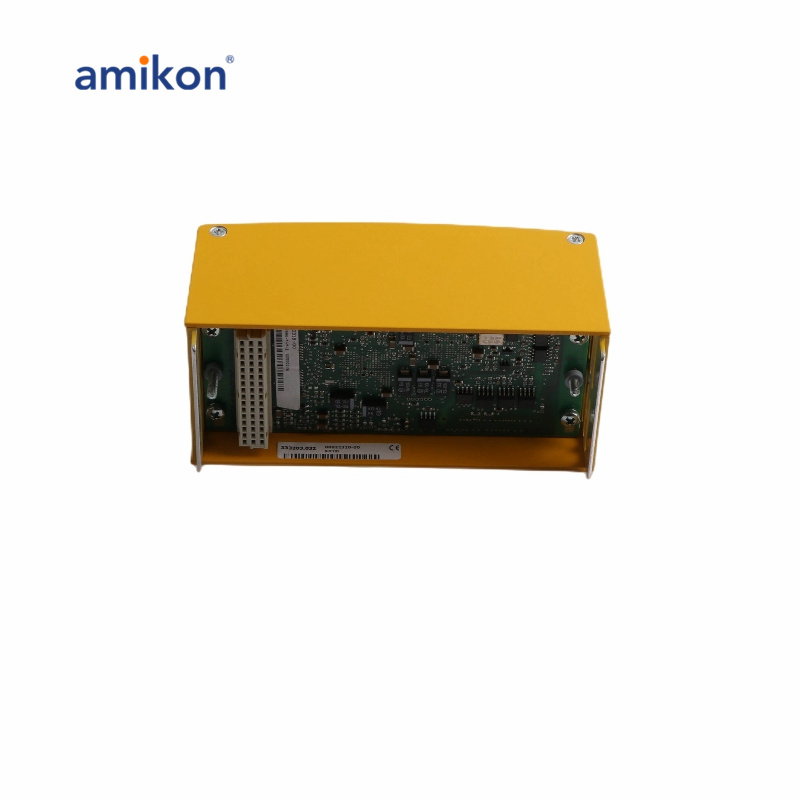

BACHMANN SCT202 Safety Counter Module

Brand new and original sealed//Same Day Shipment

The SCT202 is a safety module for measuring safety-related rotations. For this it provides inputs and outputs which enable the implementation of safety applications up to SIL2 and PLd.
Two safety input blocks that can be used as an incremental interface (each connectable with symmetrical A/B/N tracks). The measuring result is available to the user both as a fre quency as well as in the form of a counter status.
SCT202 Data sheet	Two safety input blocks that can either be used as a counter input (connection of initiators) or latch or referencing inputs.
	Two safety digital inputs that can also be used as latch or refe rencing inputs.Two safety digital outputs as safety short response shutdown contacts which are ideal for overspeed detection (reaction time: ≤ 1 ms).
	Frequency measuring directly in the module Qualified for use as non-safety counter / speed measuring module Integrated referencing function (initiator, zero pulse and com bination, as well as via software)
