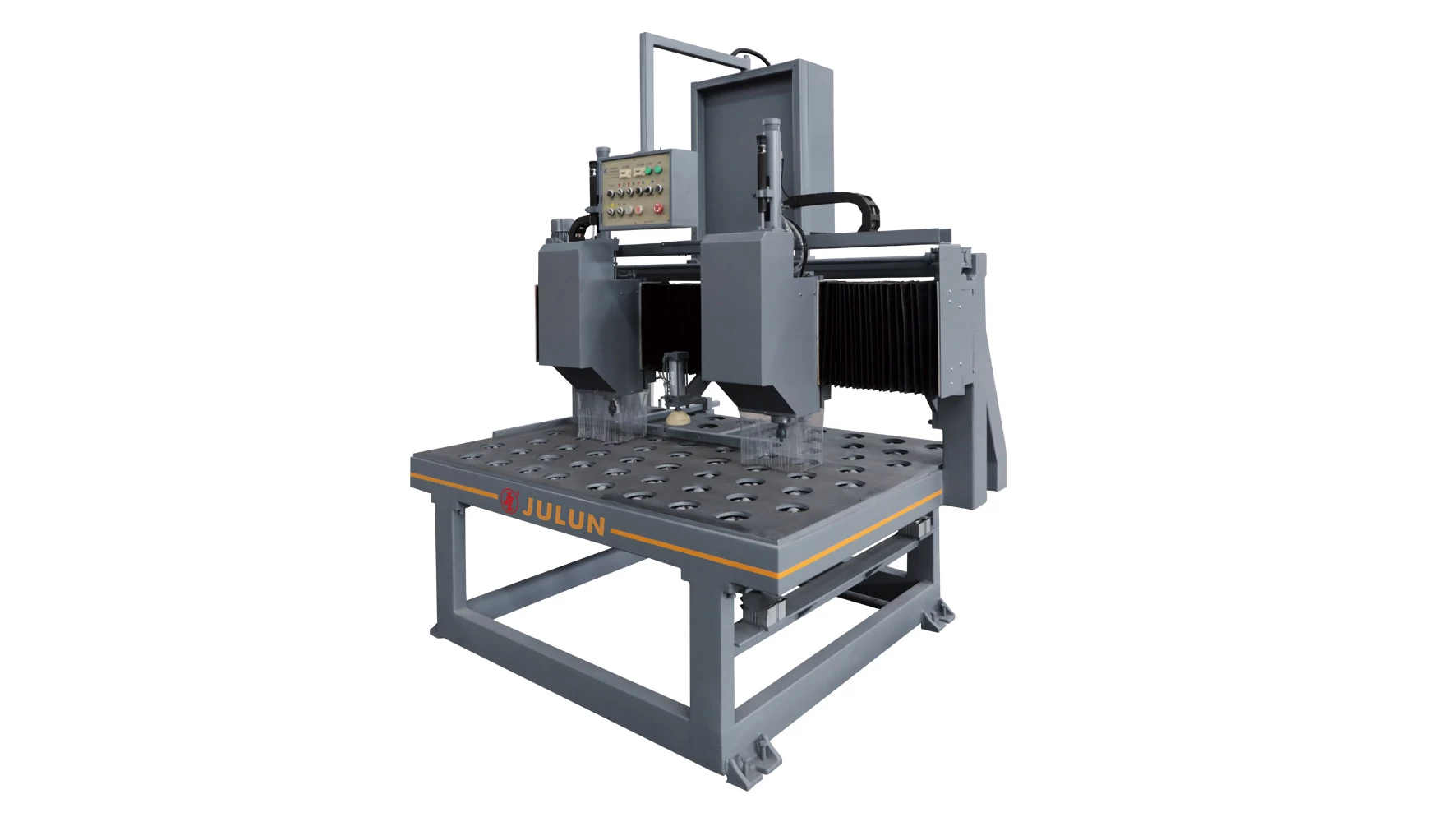

Automatic Back Bolt Drilling Machine
1. The first domestic professional equipment that is used to stone material dry-hang back bolt drilling machine.
2. It uses a main shaft at high speed,automatic feed knife with air pressure,precise orientation.The imported universal roll wheel and others advanced spare parts work together with PC control system make the machine convenient operating and stable function and high efficiency.This machine is technically equal with foreign product.
Specification
|
Appellation
|
Unit
|
SZ/PC-16B
|
|
Drill hole diameter
|
mm
|
Φ6~Φ13
|
|
Drill hole depth
|
mm
|
50
|
|
Double-drill maximum with between centers
|
mm
|
1650
|
|
Double -drill minium width between centers
|
mm
|
360
|
|
Worktable size
|
mm
|
1830×1430
|
|
Air consumption
|
m3/min
|
0.12
|
|
Water consumption
|
m3/h
|
0.32
|
|
Air consumption
|
kW
|
1.5×2
|
|
Total power
|
kW
|
3
|
|
Dimension(LXWXH)
|
mm
|
2200×1700×2300
|
|
Weight
|
kg
|
1250
|
