Back Loading Pad GT-LB01-4

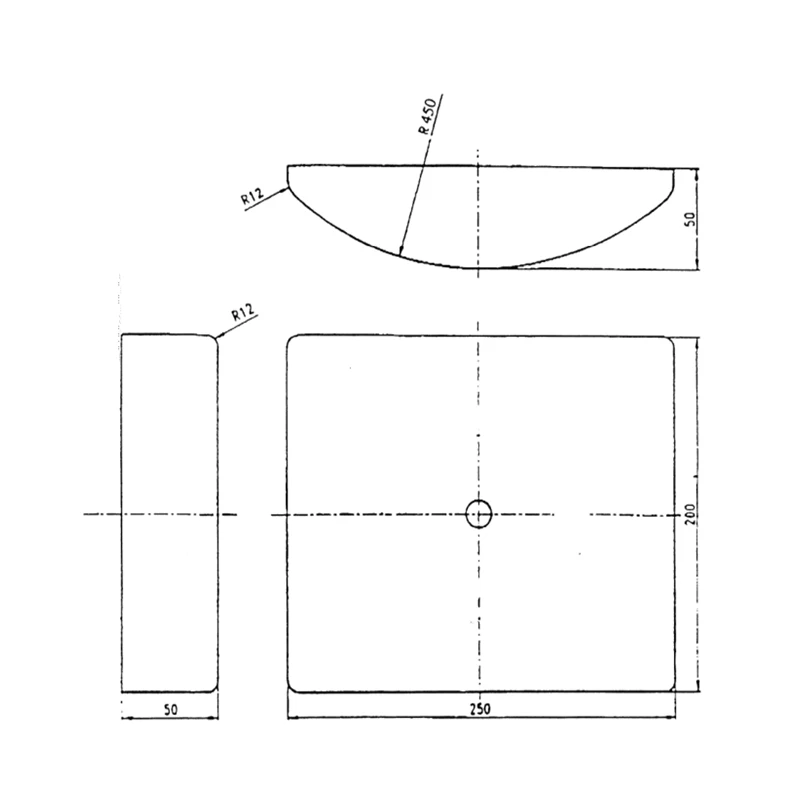

Back loading pad, which is a rigid rectangular object 200 mm high and 250 mm wide, the loading surface of which is curved across the width of the pad with a convex cylindrical curvature of 450 mm radius and with a 12 mm radius on all front edges.





Back Loading Pad GT-LB01-4


Product Introduction

Application:

Back loading pad, which is a rigid rectangular object 200 mm high and 250 mm wide, the loading surface of which is curved across the width of the pad with a convex cylindrical curvature of 450 mm radius and with a 12 mm radius on all front edges.



Standards:

EN 1728-2012, EN581-2-2015, EN1335-3-2009, BS5459-2-2000,

GB10357-3 -2013, ISO7173-1989

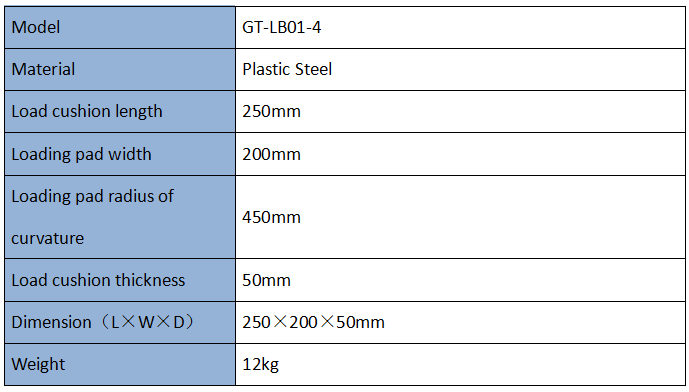

Key Specifications





Applications Industry

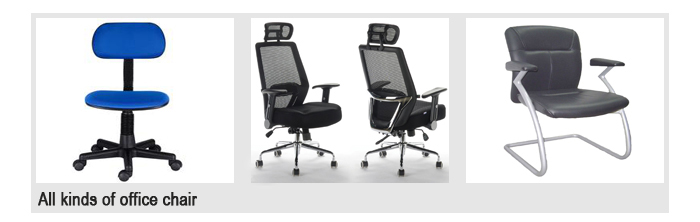

All kinds of office chairs can be tested on the Back Loading Pad


Product Tags chair tester          chair assembly tester          chair durability tester          chair stability tester          chair armrest tester          chair backrest dynamic tester          chair out stop tester          chair castor durability tester          chair back durability tester
