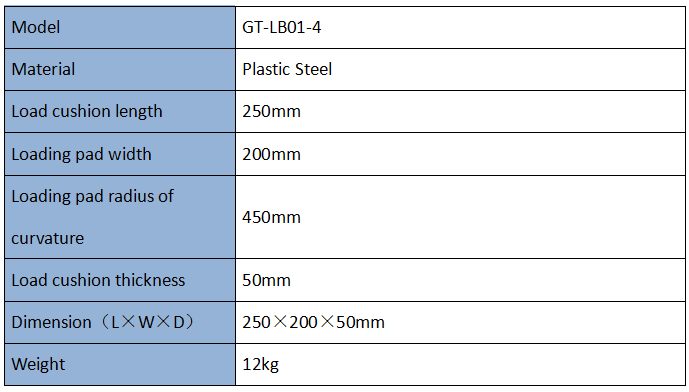

Back Loading Pad GT-LB01-4

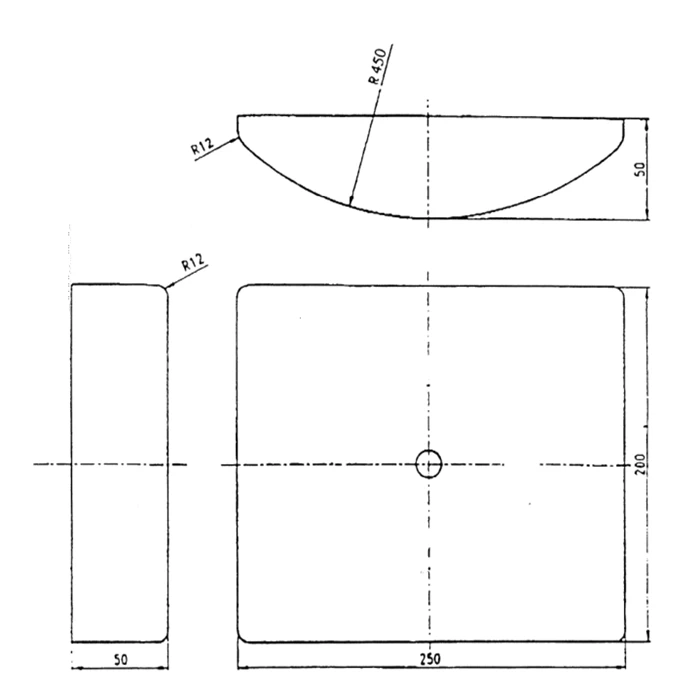

Back loading pad, which is a rigid rectangular object 200 mm high and 250 mm wide, the loading surface of which is curved across the width of the pad with a convex cylindrical curvature of 450 mm radius and with a 12 mm radius on all front edges.

• standardEN 1728-2012, EN581-2-2015, EN1335-3-2009, BS5459-2-2000, GB10357-3 -2013, ISO7173-1989
• certificateISO 9001, UKAS, CE

---
