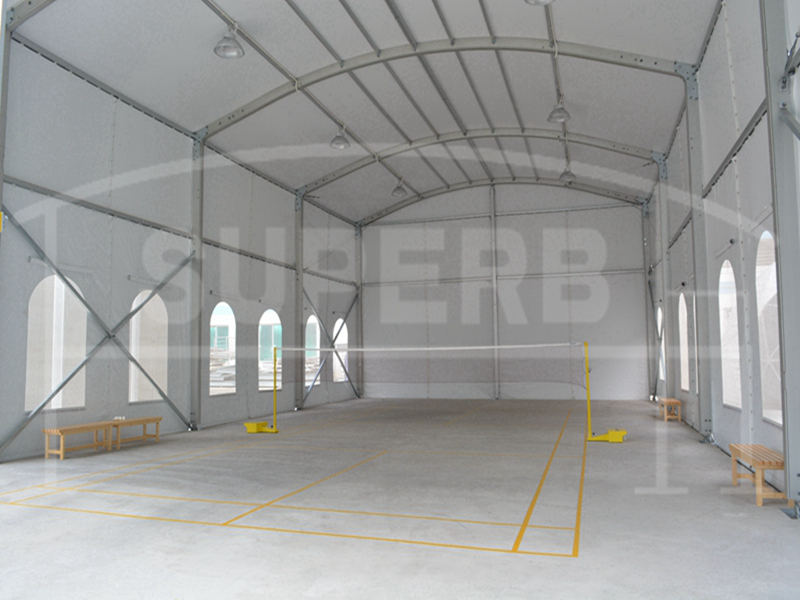

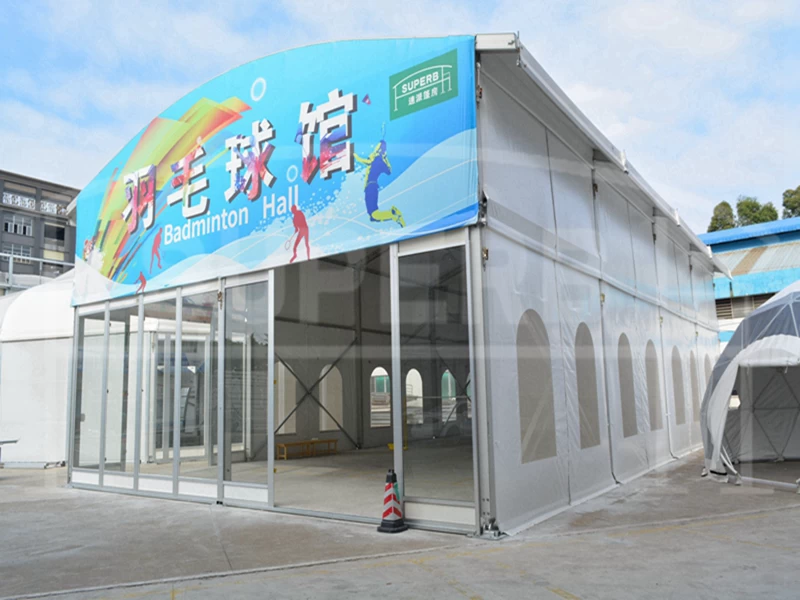

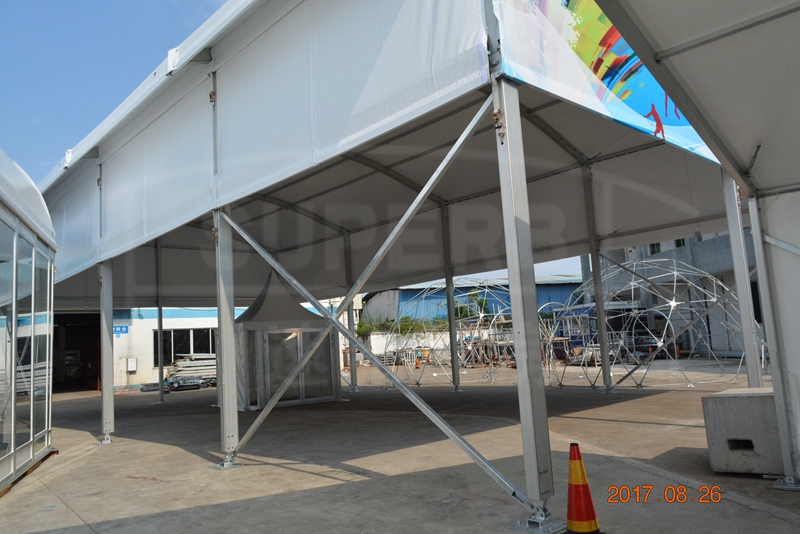

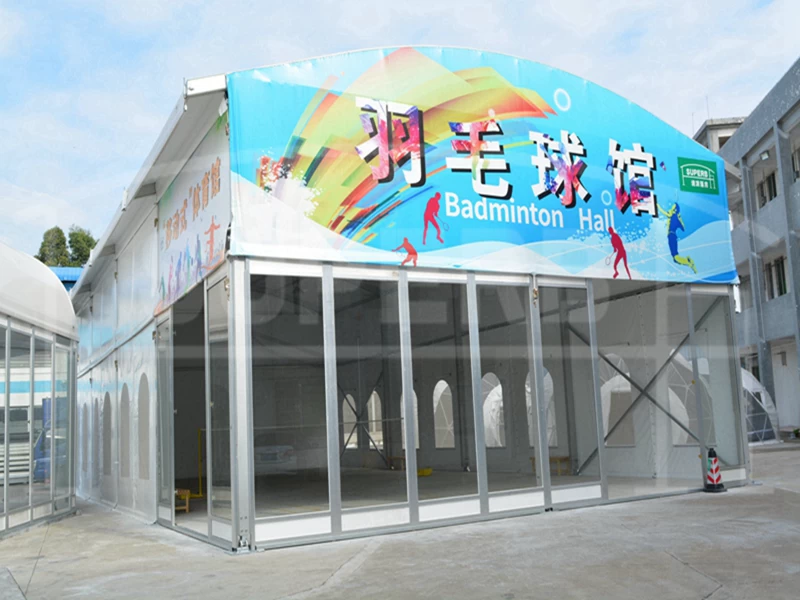

Badminton court tent
This kind of tent is generally applicable to commercial plaza, sports center, community, parks, schools and other unused land, and other fitness facilities can be built to form a public fitness square or center of the district.It can also be used for temporary construction of large-scale sports games or social activities, which can be disassembled or moved to a specific area, without damaging the ground, without producing construction waste, which can be easily promoted.There is no special requirement for the installation site. Just ensure the site is flat, and the overall ground texture and hardness are equivalent.

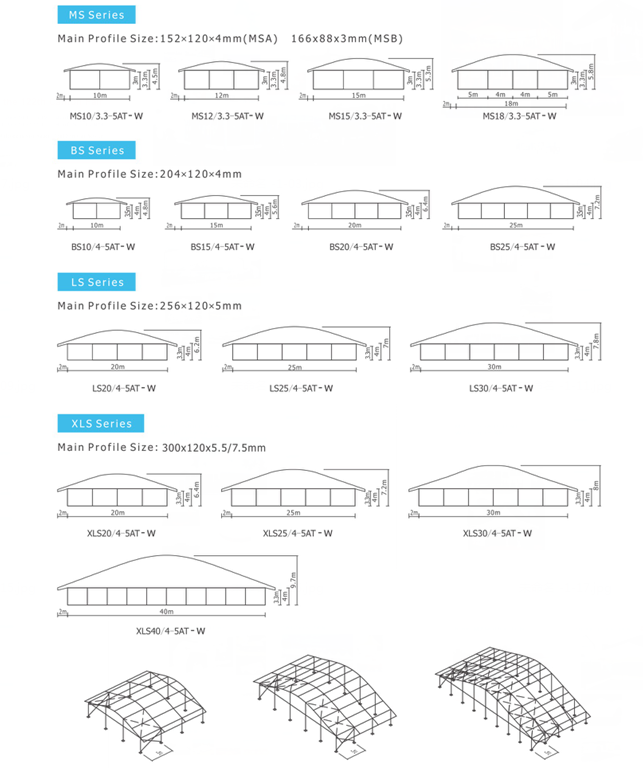

The specification of outside tents for parties:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
204x120x4mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to
DIN4102 B1,M2,650-900g/sq.m
|
The accessories of commercial party tents:
