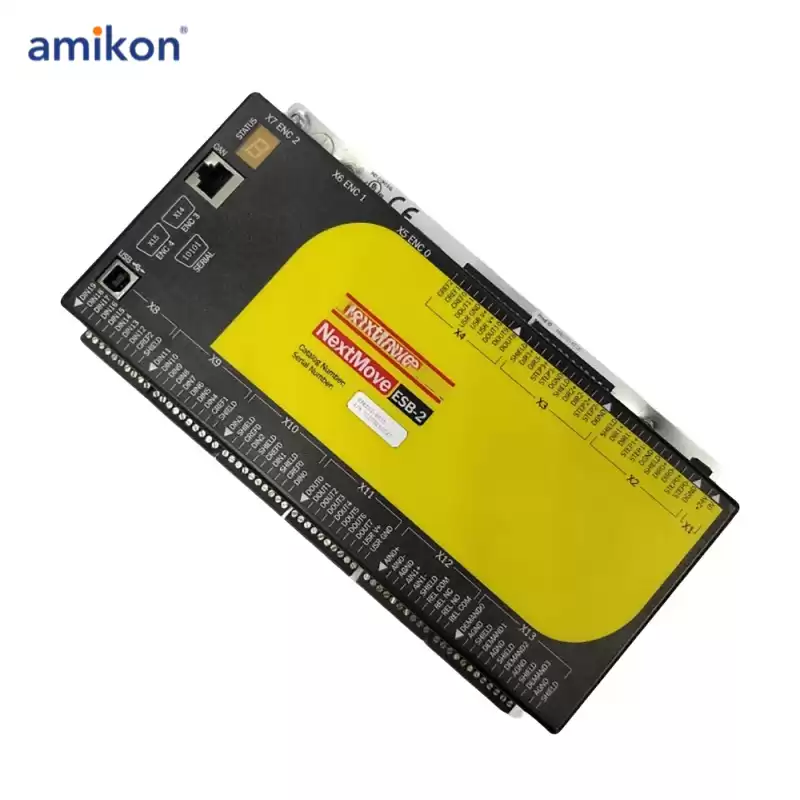

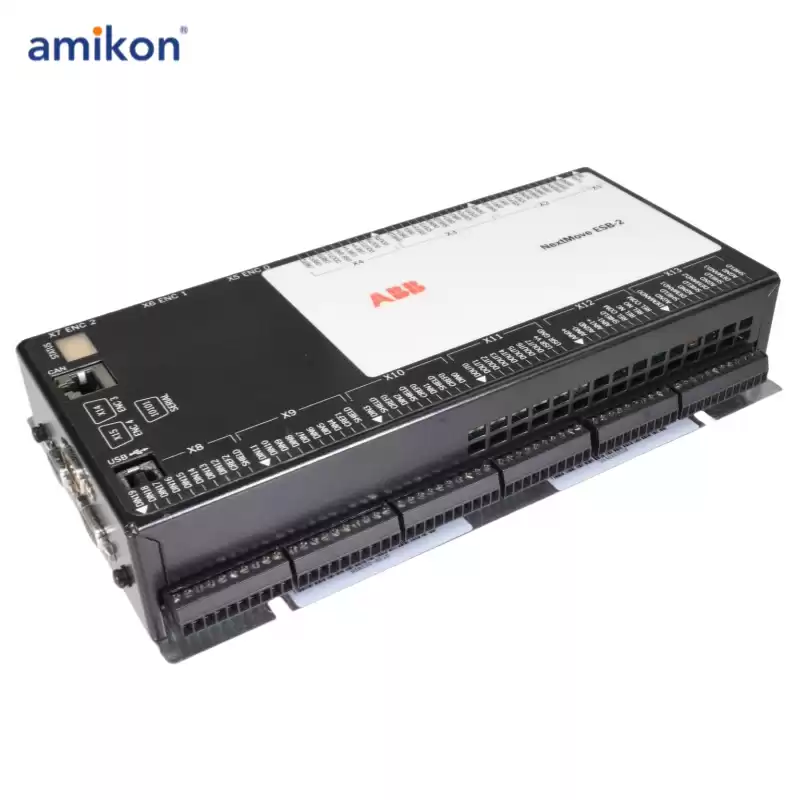

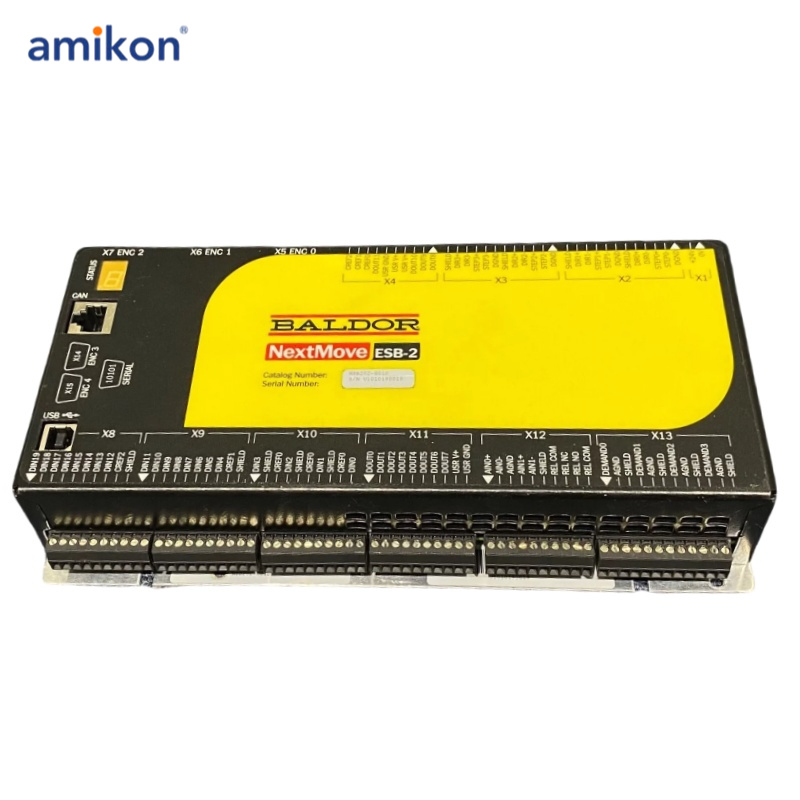

BALDOR Motion Controller NSB202-601D

Brand:  BALDOR

Part Number: NSB202-601D

Model: Motion Controller

Standard features include:

-Control of 4 stepper axes and either 3 or 4 servo axes (model dependent).
-Additional encoder input for master follower applications.
-A wide variety of motion types including point to point moves, software cams and
gearing.
-20 general purpose digital inputs, software configurable as level or edge triggered.
-12 general purpose digital outputs.
-2 differential analog inputs with 12-bit resolution.
-4 single-ended analog outputs with 12-bit resolution.
-USB 1.1 serial port (compatible with USB 2.0 and USB 3.0).
-CANopen protocol for communication with Mint controllers and other third party
CANopen devices.
-Programmable in Mint.
-Drop-in replacement for NextMove ESB.

NextMove ESB-2 features the Mint motion control language. Mint is a structured form of Basic, custom designed for stepper or servo motion control applications. It allows you to get started very quickly with simple motion control programs. In addition, Mint includes a wide range of powerful commands for complex applications.
