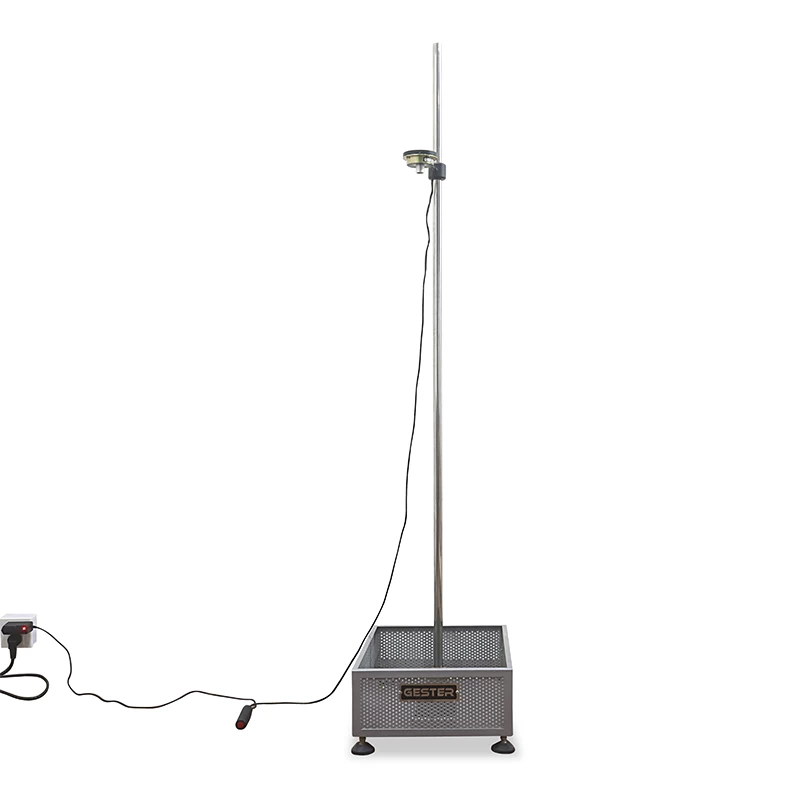

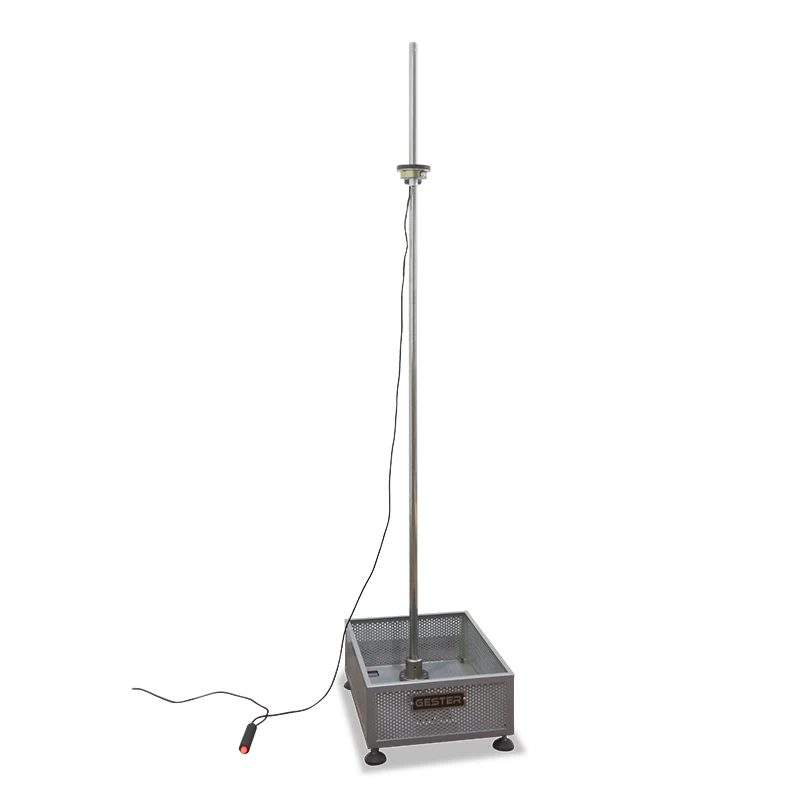

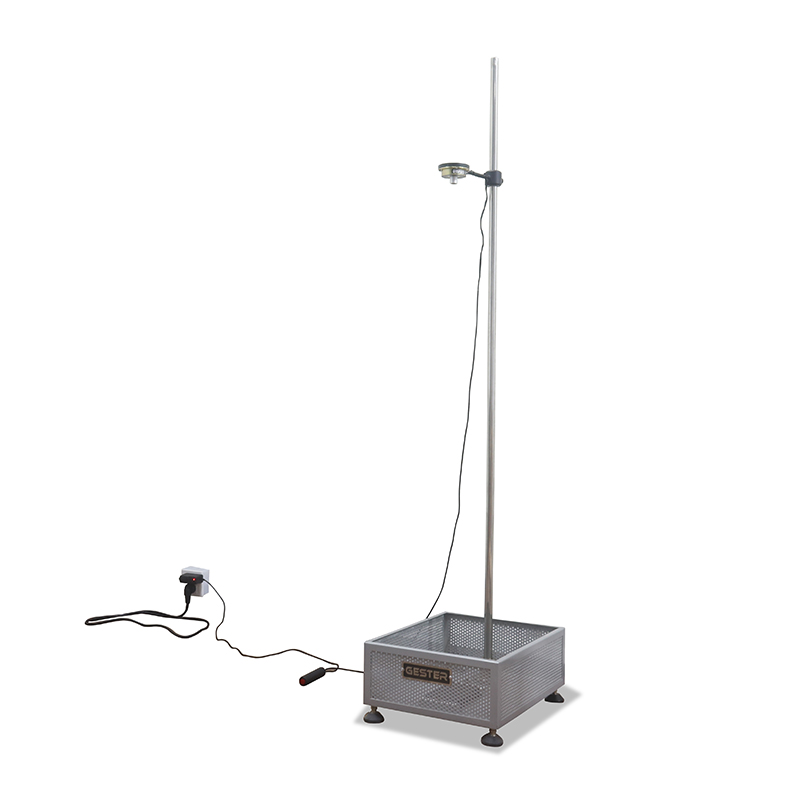

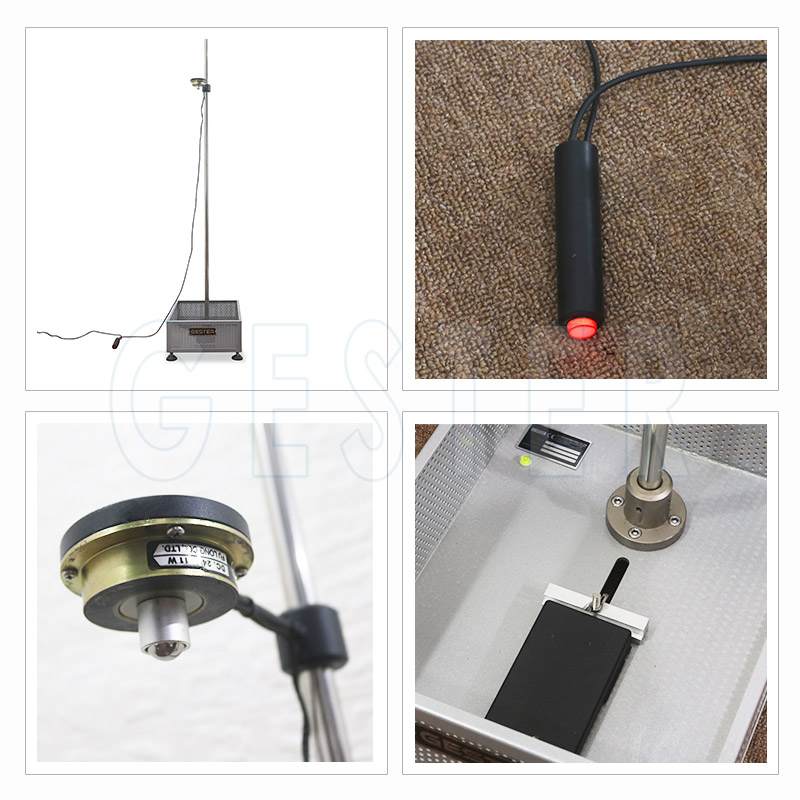

Ball Impact Tester GT-M28

Accessories

Ball Drop Test Equipment Instructions:

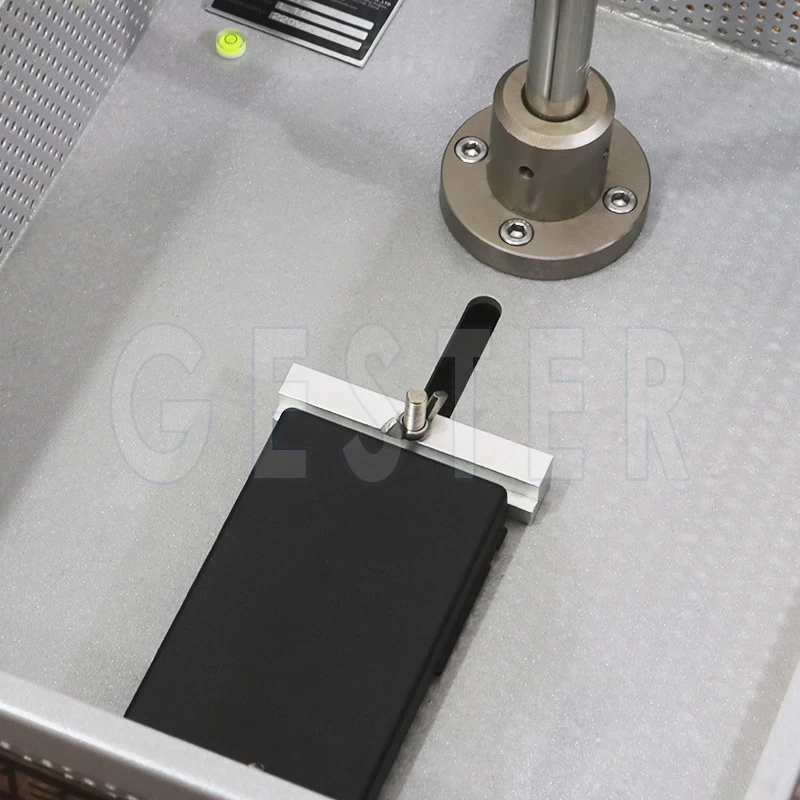

1) Affix the toy. Use the universal clamp to affix the toy firmly. (sample should be affixed firmly or not should be depend on the shape of toy and client’s requirement.)

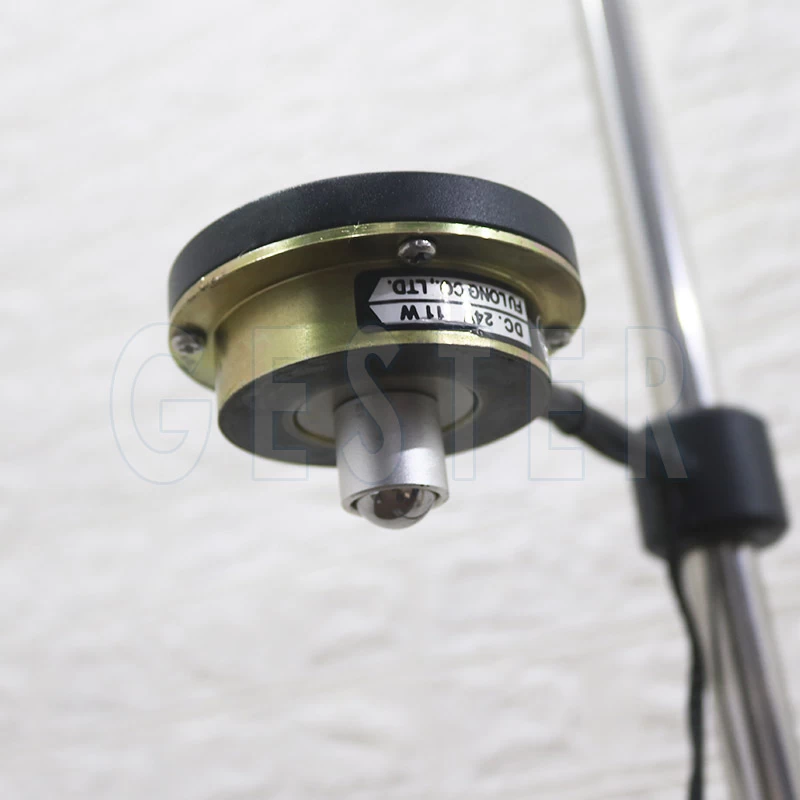

2) Set the testing stroke range. Use left hand to unscrew the fix handle in the electromagnet rod, move the bottom of the electromagnet rod to the height which is above the drop height in 4cm (the drop height is not accurate in this moment), then screw the fix handle slightly, adsorb the steel ball to the electromagnet. Place the one end of the square perpendicular to the scale in the height required on drop bar, move slightly to let the bottom of steel ball to be vertical to the scale in the height required on the height gauge, then screw the fix handle firmly.
3) Start the test. Press the fall key, the steel ball will be free falling to impact the testing sample. Test could be done repeatedly or change the steel ball to test or change the sample to test, and the result of each test should be recorded.
