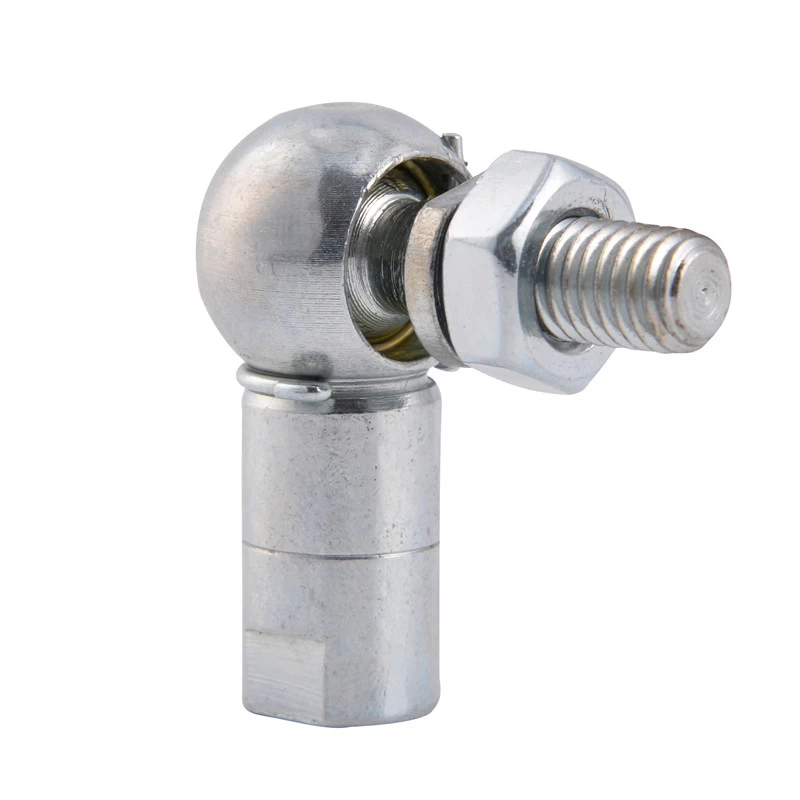

Ball Joints CS

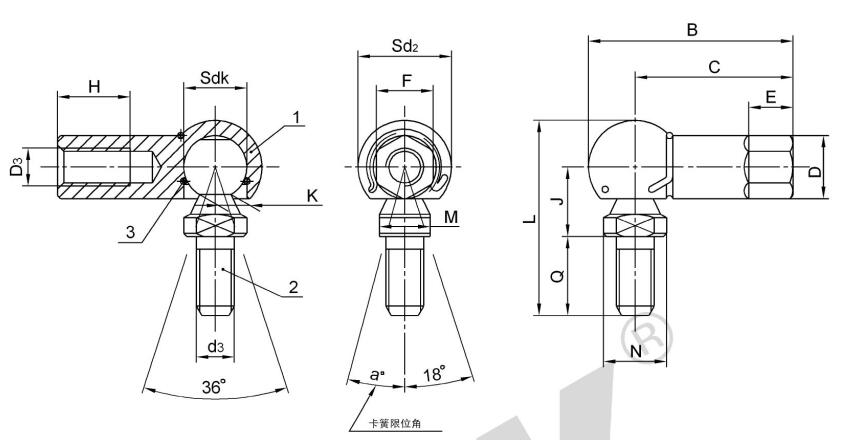

CS Ball joint metric size

Material:

Body: Low carbon steel.

Ball stud: Carbon steel, Ball is induction hardened.

Inner retaining ring and safety clip: Hard drawn spring steel.

Protective Finish:

Ball joint components zinc plated and clear passivated, Ball stud.

Inner retaining ring and safety clip are de-embrittled.

Features

Ball stud is retained by a captive internal wire ring.

Additional stud retention security is provided by the external wire safety clip.

For improved wear resistance, the ball is induction hardened.

Optional polychloroprene gaiter available to help resist dirt ingress.

If a fitted gaiter is required, please add G to the part number e.g. CSG 8/1.

Hexagon form on body.

Spanner flats are not available on CS 12/1 and 16/1.

Burnished ball for smoother operation.
