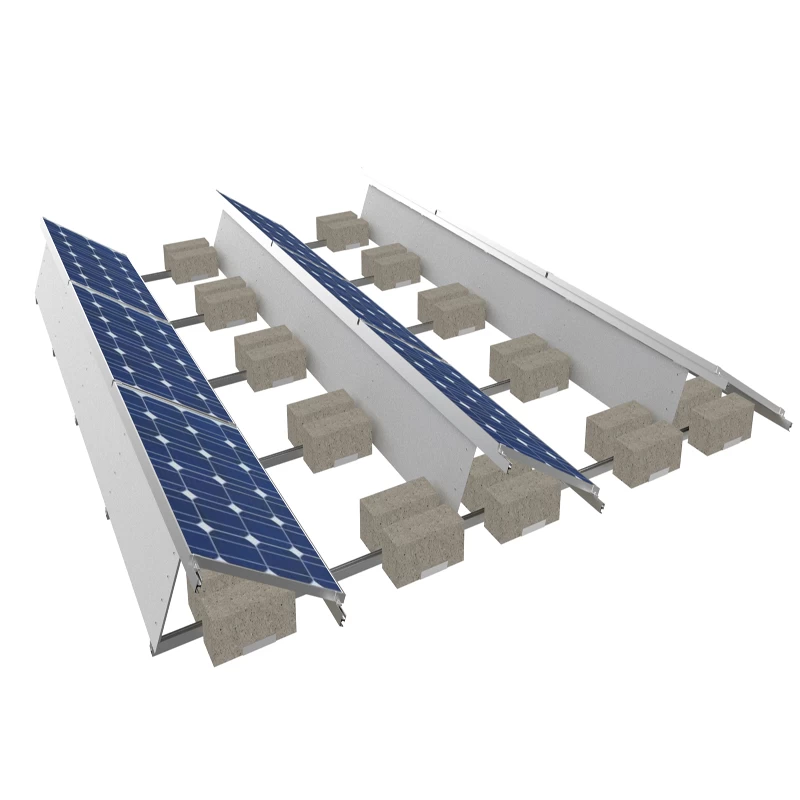

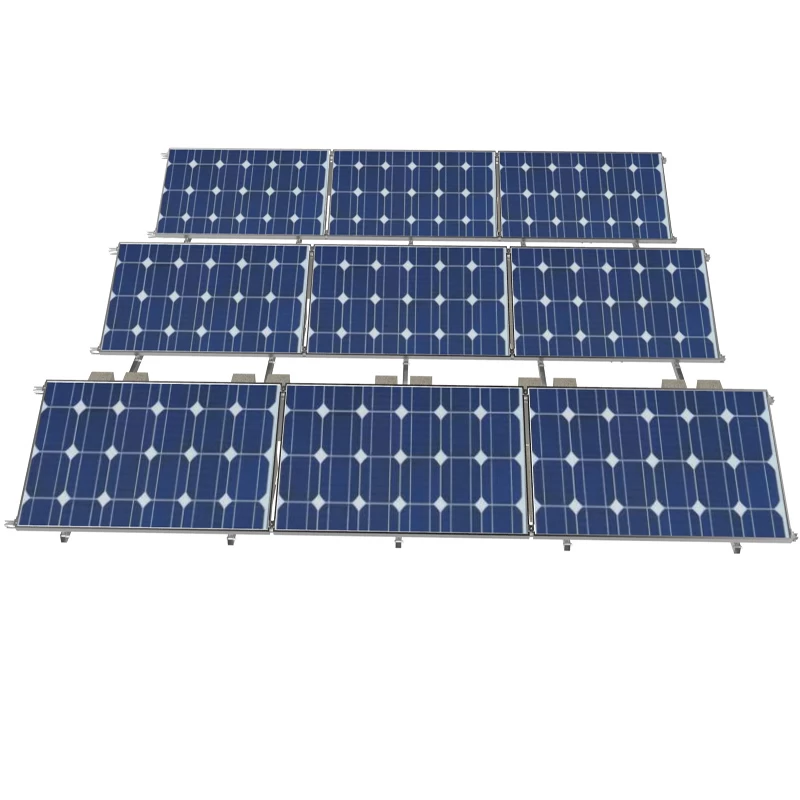

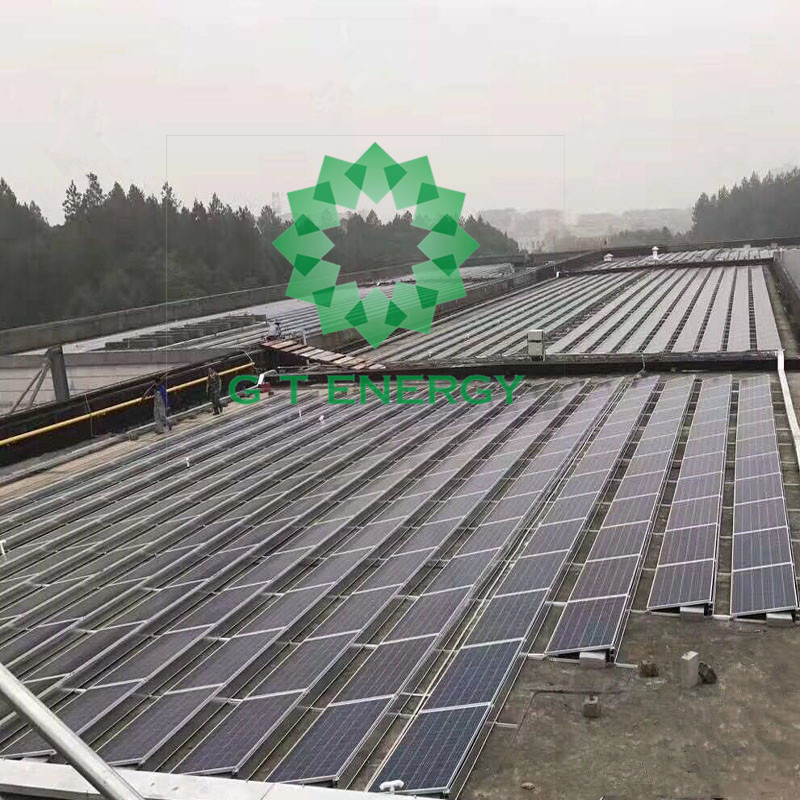

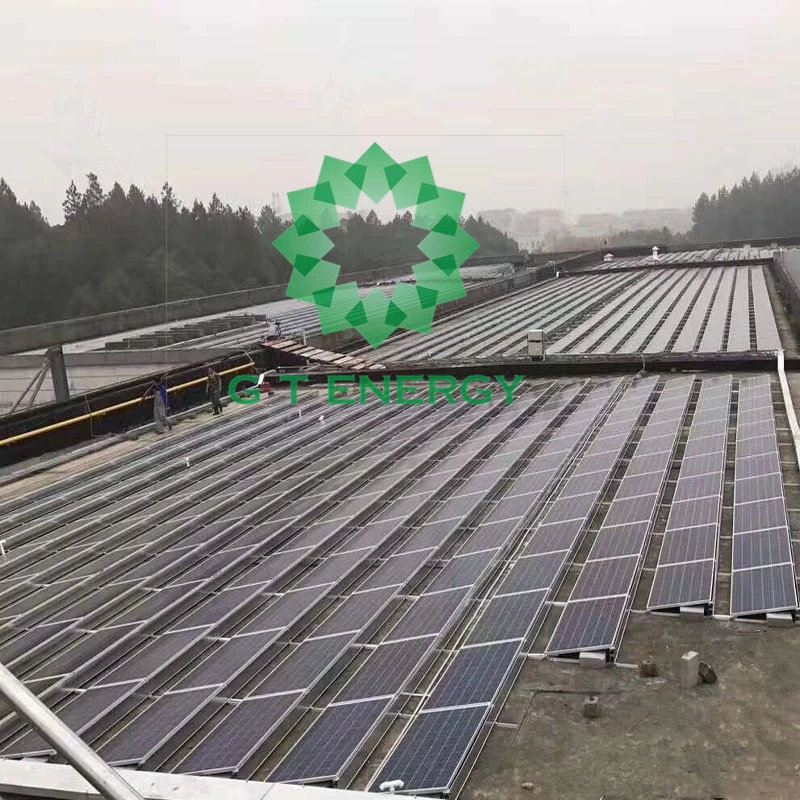

Ballast roof mount

Ballast roof mount with windshield ensure the stability of mounting system when strong wind blows


  • Warranty12 years

Ballast roof mount with windshield is easy installation and perfect for flat concrete roof.It not only does not damage the roof but also integrates the entire bracket to make the whole system more stable. The windshield prevents the wind from blowing off the solar panel.


Technical Parameters


Installation Angle

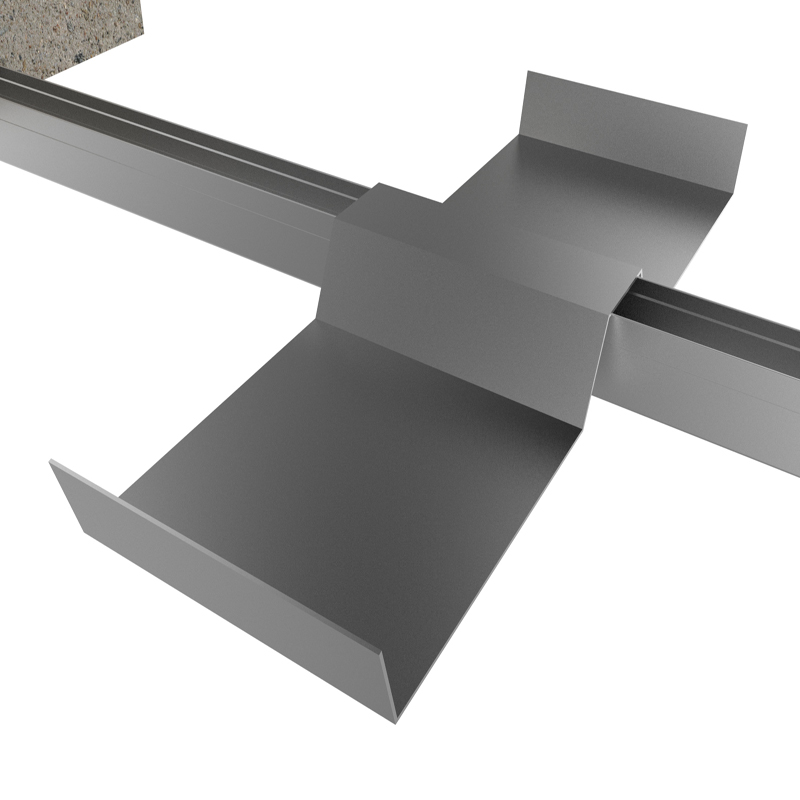

5-60°

Wind Load

60m/s

Snow Load

1.6KN/m2

PV Modules

Framed,unframed

Module Orientation

Landscape

Standards

AS/NZS 1170



DIN 1055



JIS C 89552017



International Building Code IBC 2009



California Building Code CBC 2010

Material

Al6005-T5(Anodized)

Color

Silvery or according to customer requirements

Warranty

12 years




Ballast roof mount with windshield


Feature:

1. Every line of mounting system install windshied,ensure the stability of mounting system

    when strong wind blow;

2. Install ballast sheet on t he bottom beam,then use the brick to fasten the whole mounting system;

3. Angle is adjustable;

4. Simple structure,easy installation;

5. Never damage the roof


Advantage


High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed :up to 60m/s;
Material:Al 6005-T5;
Anti-corrosive:anodized;
Warranty:12 years;
Duration:25 years.

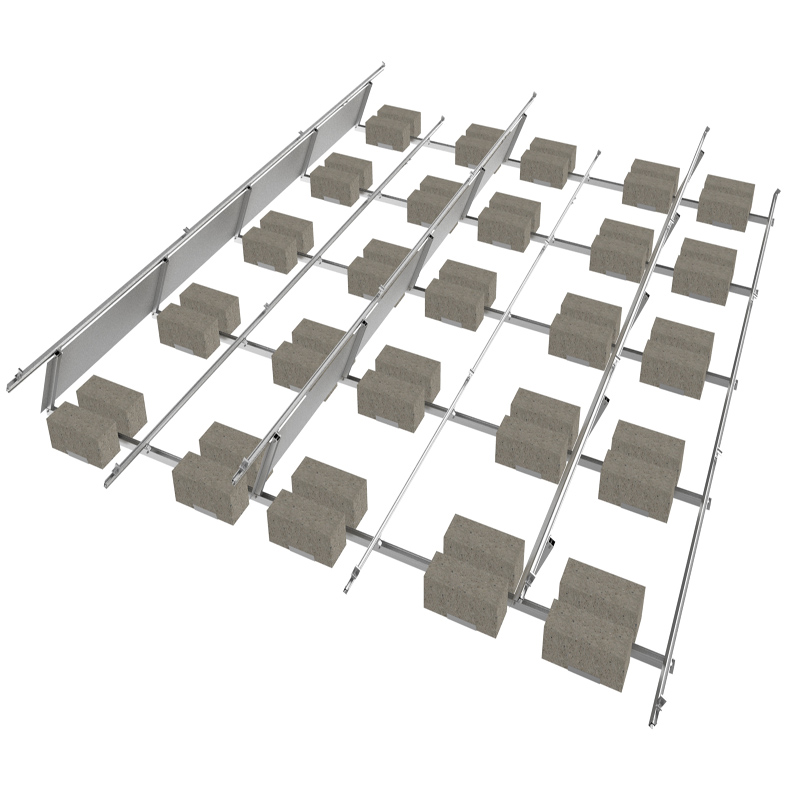

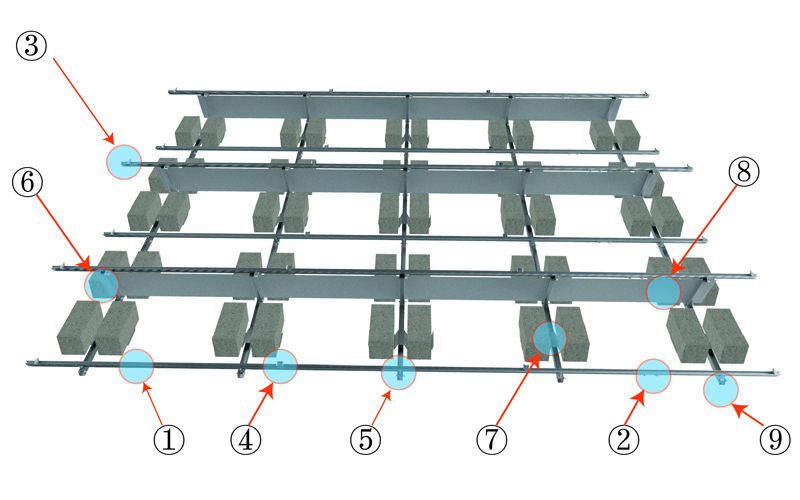

Component photos of ballast roof mount with windshield

ballasted solar racking systems

Solar roof railSolar roof rail spliceSolar end clamp Solar inter clamp

     1. Solar roof rail               2.  Solar roof rail splice             3. Solar end clamp                4. Solar inter clamp

Rotator of front leg - ballast roof mountBack leg - ballast roof mountBallast plate-ballast roof mountWindshield -ballast roof mount

  5.  Rotator of front leg                    6.  Back leg                          7.  Ballast plate                      8.  Windshield

Bottom beam - ballast roof mount

       9.  Bottom beam

Installation photos of ballast roof mount with windshield

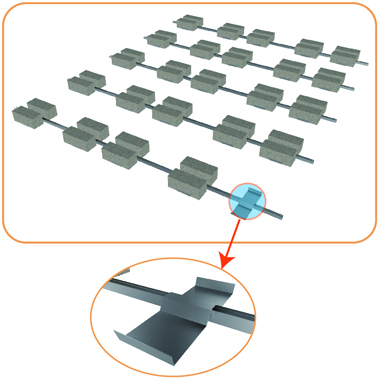

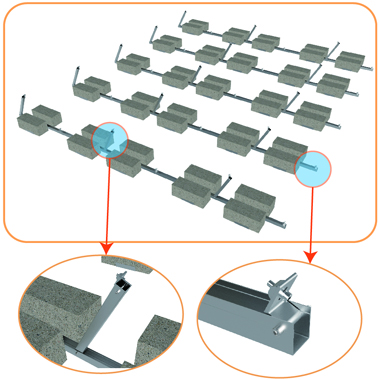

Step1:Install bottom beams and ballast plates            Step2: Install front legs and back legs



solar ballast mounting systems     ballasted mount

                             Ballast plate                                                           Back leg                                  Front leg

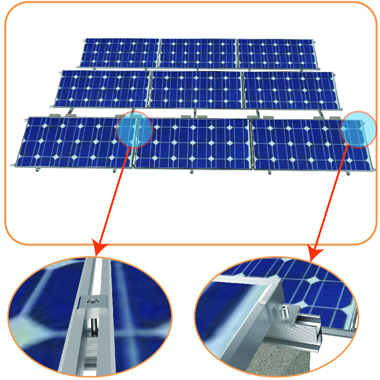

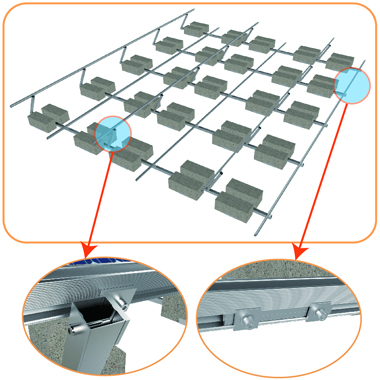

Step3:Install roof rail and rail splices                        Step4:Install inter clamps and end clamps


ballast roof mount     ballasted roof mount solar racking

Connect back leg and rail    Connect rail and rail                     Inter clamp                           End clamp

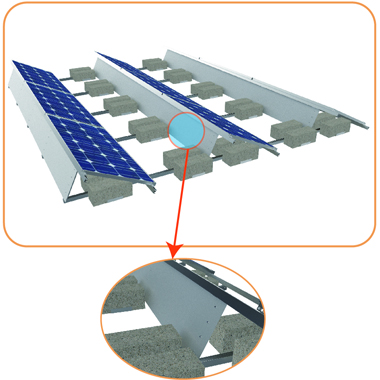

Step5:Install wind sheets



flat roof ballasted solar racking

                               Wind sheet



low ballasted aluminum pv mounting system
