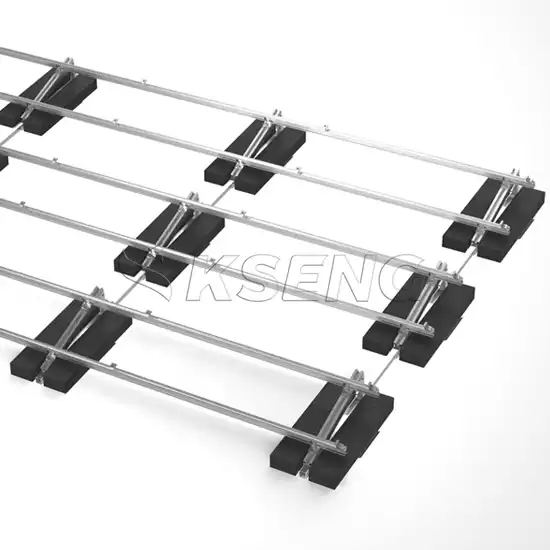

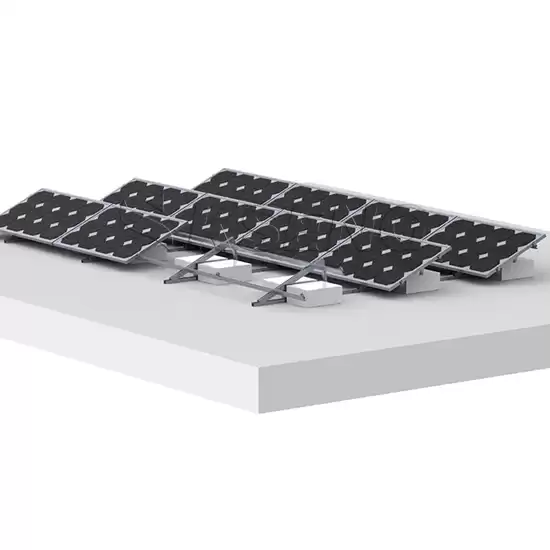

Ballasted Solar Mount for Flat Roof
The ballasted system is a flat roof racking system, typically used on flat or low sloping roofs. This racking system is typical in larger commercial projects where the property owner wishes to make minimal penetrations while adding solar to their location.
Variety configuration of solar panel can be built for optimal solution for South-faced roofs, North-south roofs and East-west roofs.
|
Material:
|
Aluminum 6005-T5 & SUS 304 Stainless Steel
|
|
Application:
|
Tin Roof
|
|
Standard:
|
AS/NZS 1170
|
|
Wind Load:
|
60M/S
|
|
Snow Load:
|
1.4KN/M2
|
|
Certification:
|
ISO9001/CE/UL
|
|
Warranty:
|
10 Years
|
|
Components:
|

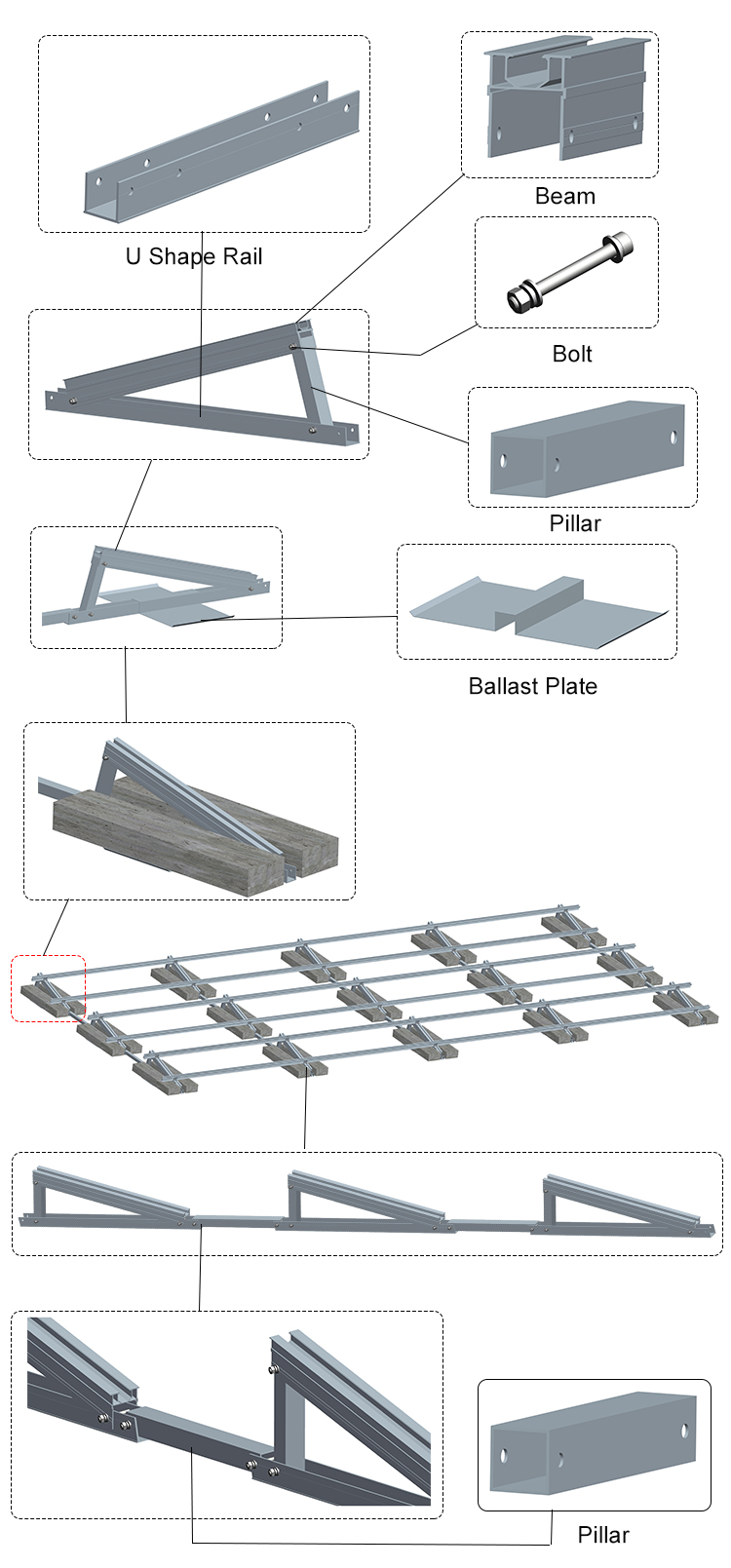

U-shape rail, U-shape connecter, Beam, Pillar, Ballast Plate, Rail, Rail Splice, End Clamp, Middle Clamp, L Foot Acce ssory, Reinf orcing Beam etc.
|
|
Service Life:
|
25 Years
|
|
Applicable Module:
|
Framed or Frameless
|
