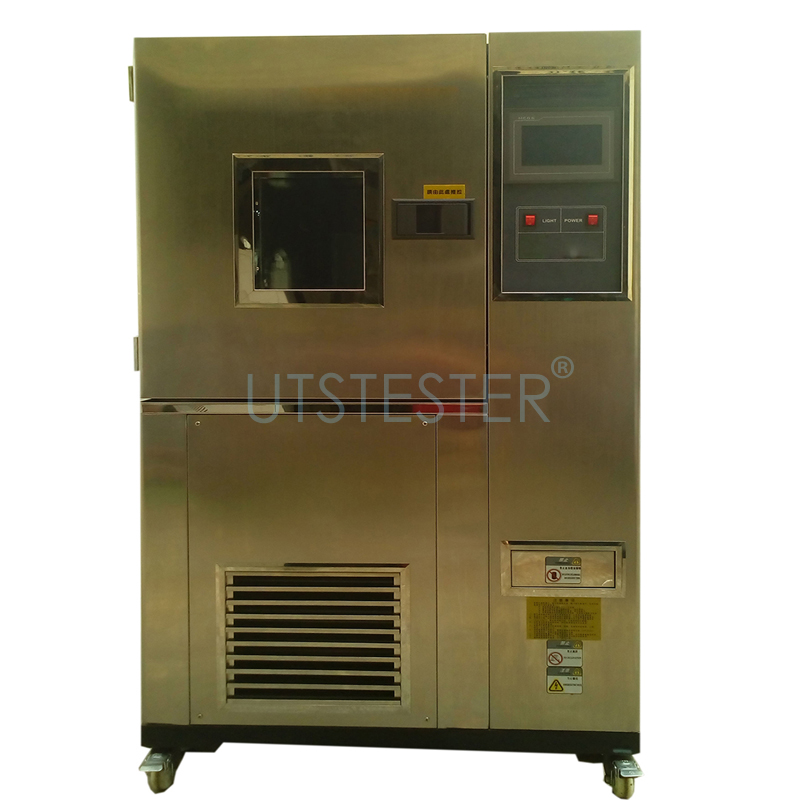

Bally leather resistance flexing tester to determine resistance to flex property for leather, coated fabric, etc under low temperature. Assess the flexing resistance of leather by damage condition of samples after flexing for a certain of times.
Test Principle

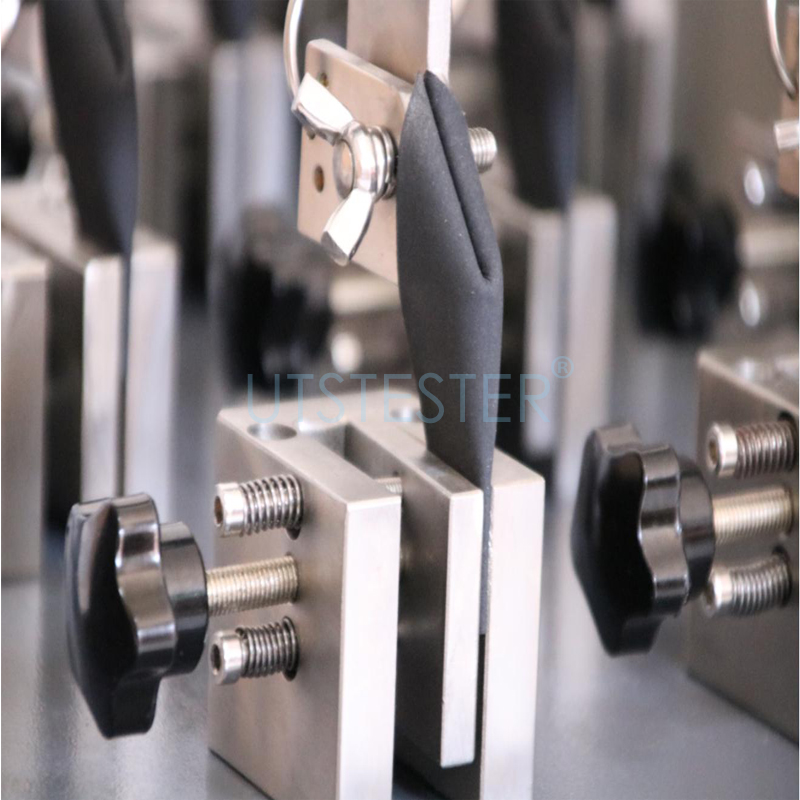

Fix one end of sample on the upper fixture, the other end onto bottom fixture to make sample at 90. Then flex sample at a specified speed and angle. After flexing for a certain of times to assess damage degree of sample.
Standards
SATRA TM 55 ; IULTCS/IUP 20-1; ISO5402-1; ISO 17694
EN 13512 ; EN344-1 ; EN ISO 20344;
GB/T20991 ; AS/NZS 2210.2 ; GE-24; JIS-K6545
Features
(1)Strong function
1. Adopt international brands imported compressor, the international well-known refrigeration parts, ensure the stable performance of cooling system. PID adjustment, high precision temperature and humidity control. Have recording the temperature and humidity function
2. Inner chamber uses SUS304 # mirror stainless steel
3. Outside the chamber adopts SUS304 # of the lacquer that bake, the beauty is generous
4. Imported digital temperature controller (TEMI880 South Korea).
5. Multiple safety protection: the refrigerant pressure protection and compressor overload protection, over current protection, over temperature protection, leakage protection.
6. A new perfect modelling design, the appearance of high quality level. Low noise design, can connect the computer.
7. Glass Windows with high brightness fluorescent lamp, can be observed the status of the test box at any time.
8. Using muilti-wing type blower power supply air circulation, to avoid any dead space, make indoor temperature distribution is uniform.
9. The door sealing strip adopts high and low temperature resistance of silicone rubber, with good sealed performance.
(2)Good performance
1. Good heat preservation and fast cooling speed.
2. Wide temperature and humidity range. Temperature can be down to minus 70℃
(3)Reasonable designation
1. Compact and firm structure, running with low noise.
2. With multi-protection device to support equipment in safe usage.

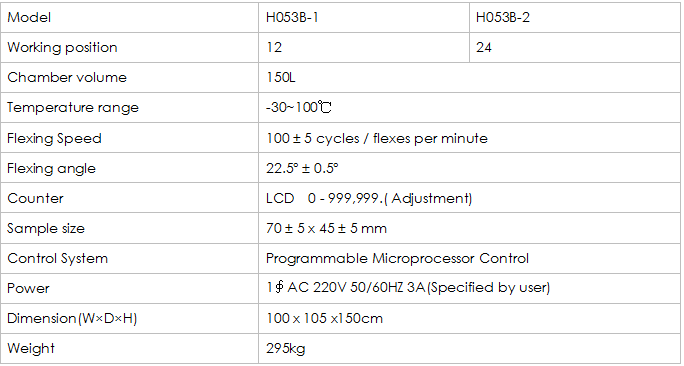

Key Specifications
Application
