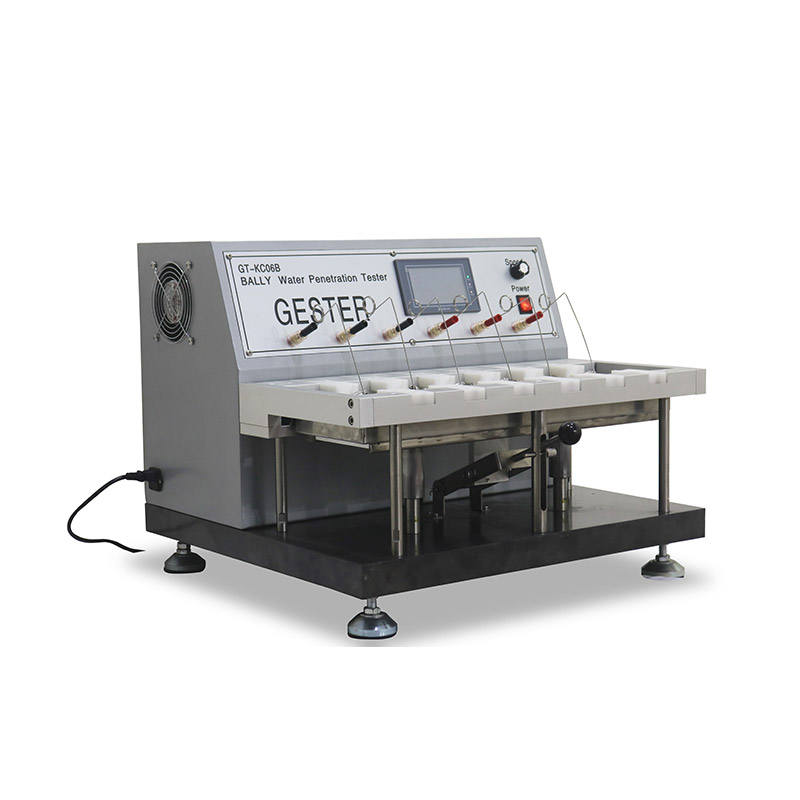

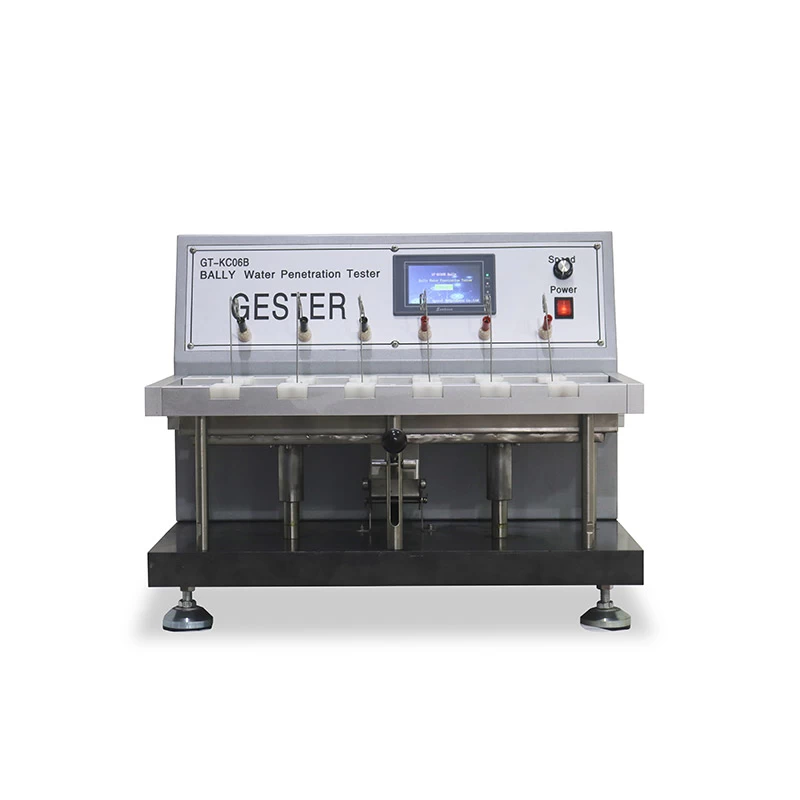

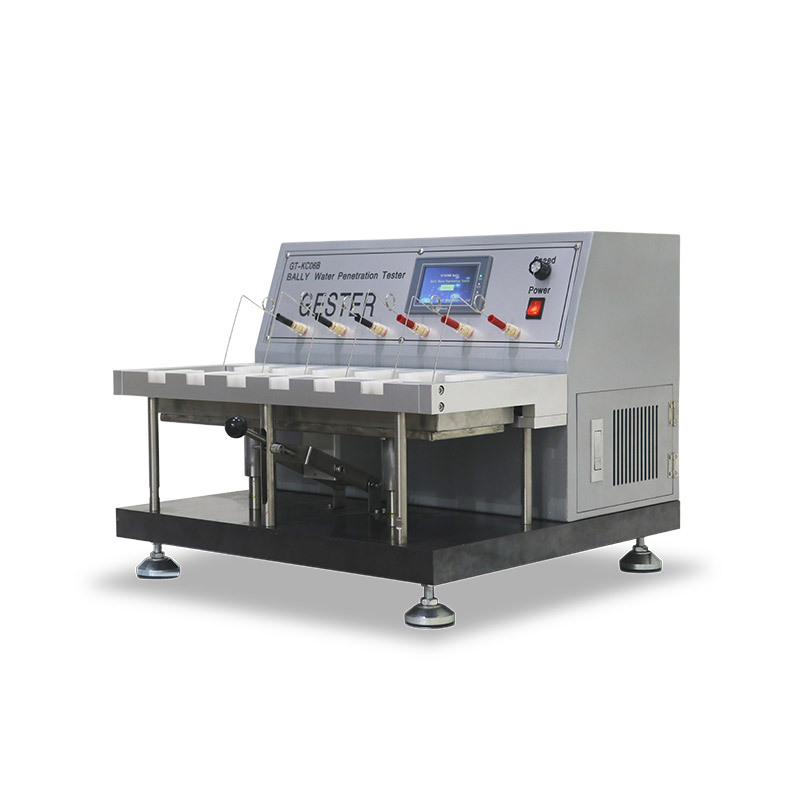

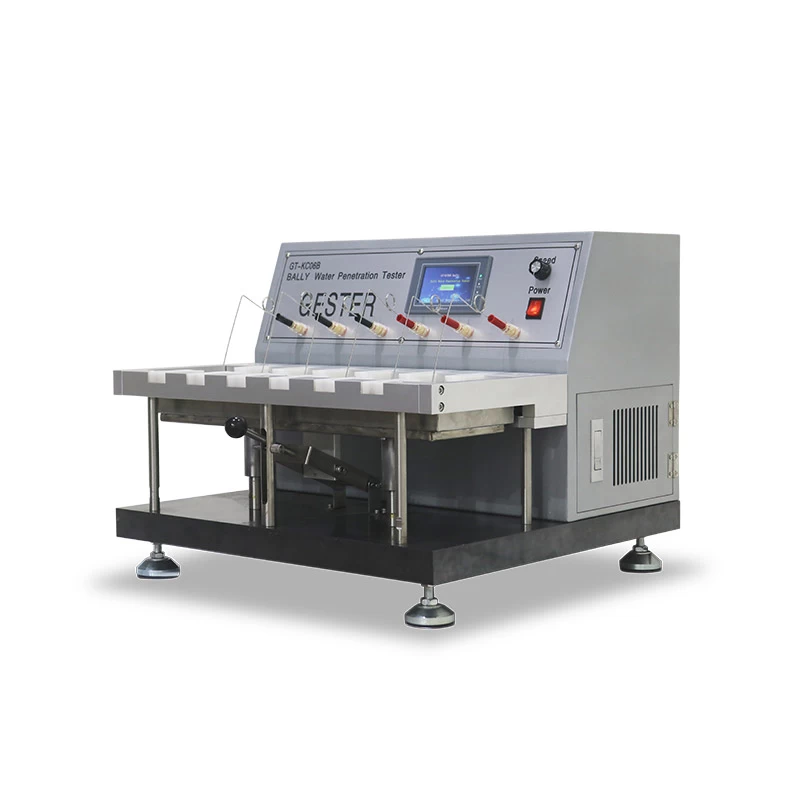

BALLY Water Penetration Tester GT-KC06
Product Introduction
|
Application of bally water penetaometer:
This BALLY Water Penetration Tester is used for determining the resistance of leather, artificial leather, fabric and so on footwear upper material to water penetration on flexing, in order to assess the suitability for the end use.
Standards of bally water penetrometer:
DIN53338, ISO 5403-1, ISO 17702, EN ISO 20344 section 6.13, EN 344-1 section 5.12, EN ISO20347 section 6.3.1, AS/NZS 2210.2 section 6.13, QB/T 3903.17, GB/T20991section 6.13
|

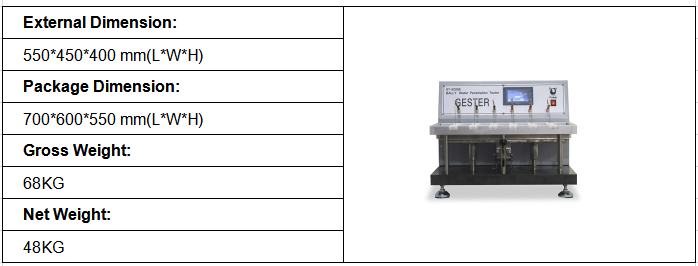

Dimensions
Principle

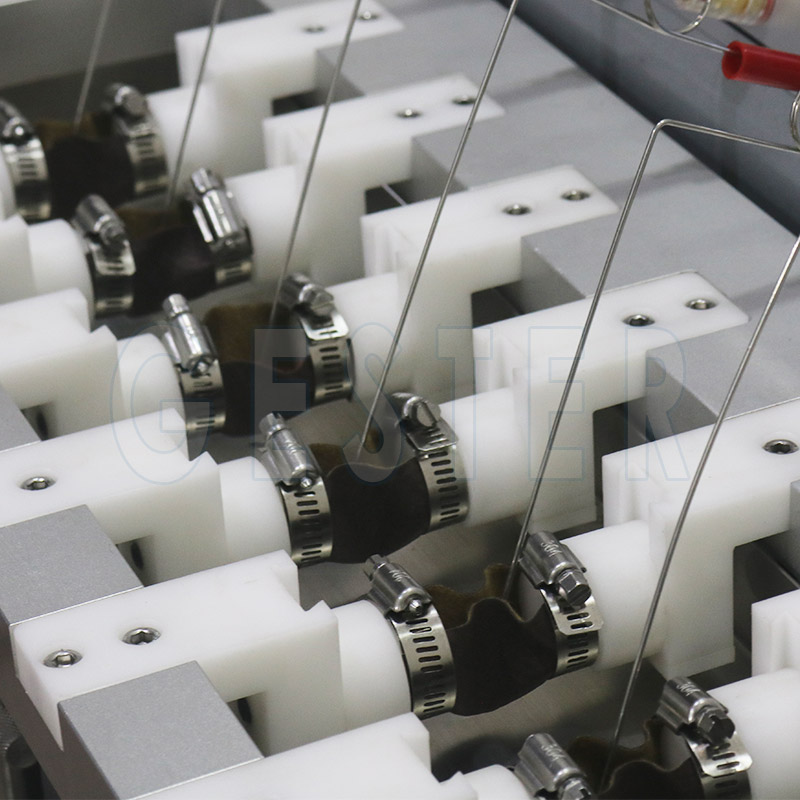

A rectangular test specimen is bent partly round, and secured between, two cylindrical clamps so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The time taken for water penetration through the test specimen to occur is recorded. The mass of water absorbed by, and transmitted through, the test specimen can also be measured.

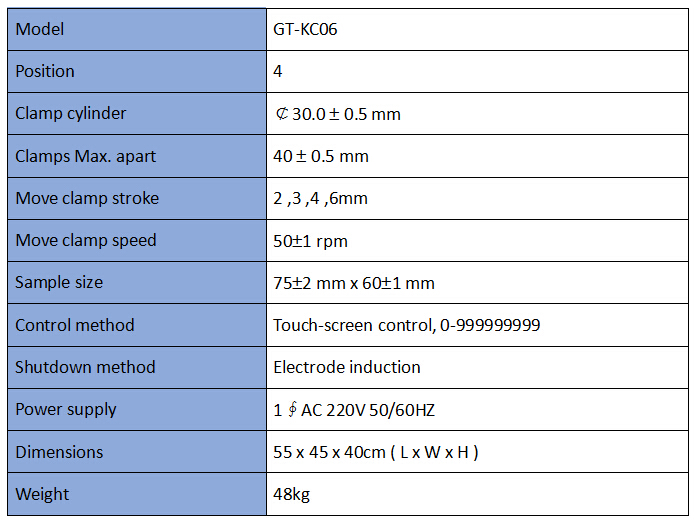

Key Specifications
Application Industry
All kinds of electroplating materials can be tested on the BALLY Water Penetration Tester.
