Barrel segments for Twin Screw Extruder- Spare Parts twin Screw barrels

Barrel segments for Twin Screw Extruder- Spare Parts twin Screw  barrels

HS CODE: 8477.9000

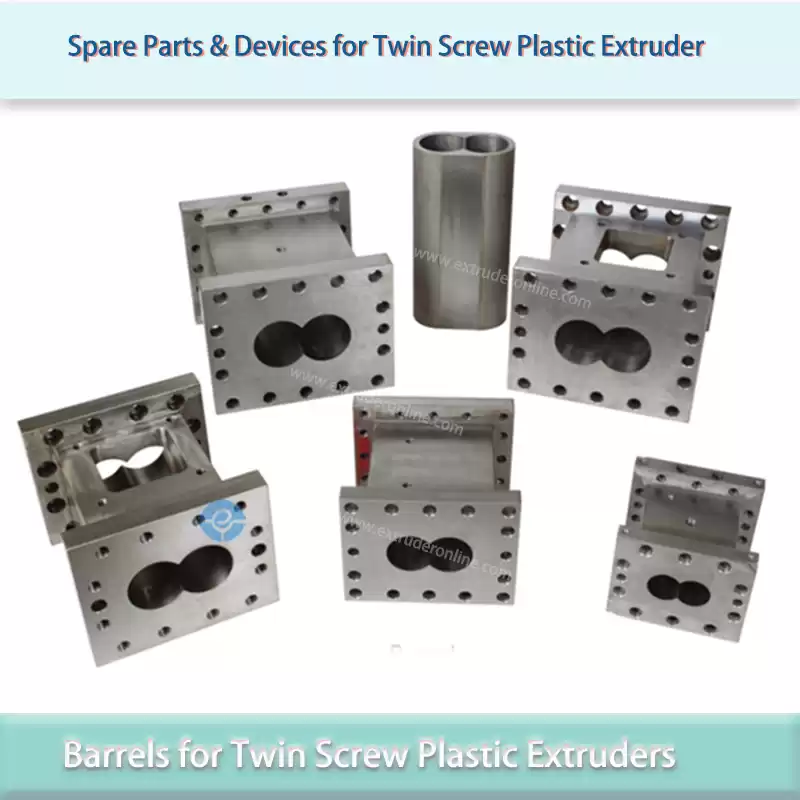

We supply you various kinds of barrel segments for twin screw / three screw plastic extruders,

like to say:

1) Closed barrel segments

2) Opened barrel segments

3) Side Feeding barrel segments

4) Side feeding barrel segments with air discharging barrels

5) Liquid adding barrel segments

6)  Bio-mass degradable materail convoying barrel segments

     and other special barrel segments

barrels

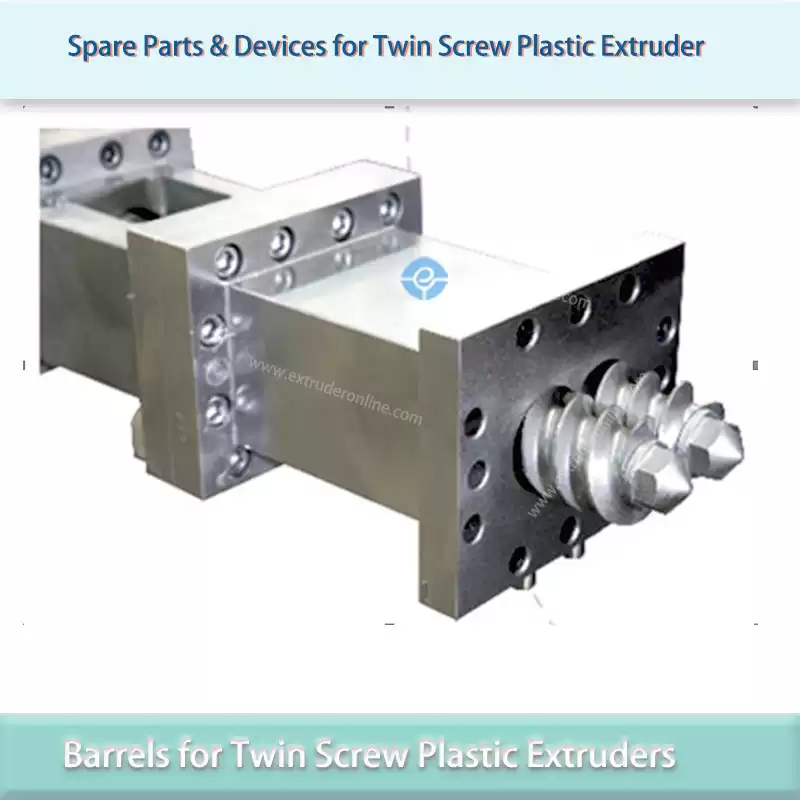

Barrel segments with shafts ( set segments with the shafts):

different barrel segments have various kind of function:

opened barrel segments are for air discharge or for vacuum system set;

barrel



Side feeding barrel segmetns with air discharging mouth: This device is for the clients' special request set, like to say if you need add more CaCO3 Powder in to the formula, then this device is a good choice. this deive could add more powders or short glass fibres or other material for high percentage or reinforced function by the granules.

side feeder barrel

Liquid inject barrel segments are for liquid adding by specail device for accurate measurment.

Some side feeding barrel segments with air discharege is also a special barrel for clients professional and accurate request.

Bio degradable barrel is a very special device for bio mass or bio degradable plastic granules making, it's a professional design and used in picky and fussy using environment.

Anyway,  We also made following plastic extruders:

Technical Parameter:

Model

Screw Dia.
(mm)

 Screw Rotary
Speed (rpm)

 Motor Power
(kw)

 L/D

Output Capacity
(kg/h)

 SHJ-20

 21.7

 600

 4

 32-60

0.5-15

 SHJ-35

 35.6

 500

 11-15

 32-60

15-40

 SHJ-50

 50.5

500

 45/55/75

 32-60

135-225

 SHJ-65

 62.4

500/600

 55-75-90

 32-60

 25-375

 SHJ-75

 71.0

500-600

 90/110/132

 32-60

330-550

 SHJ-95

 93.0

400-500

 250/315

 32-60

750-1250

Our machine can process the following materials:

Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate
