Base Station Telecom Equipment Nokia NSN BBU RRU Flexi MCPA FHEA 472168A
Product Description
|
item
|
value
|
|
Brand Name
|
NOKIA
|
|
Model Number
|
FHEA
|
|
Type
|
RRU
|
|
Use
|
BTS
|

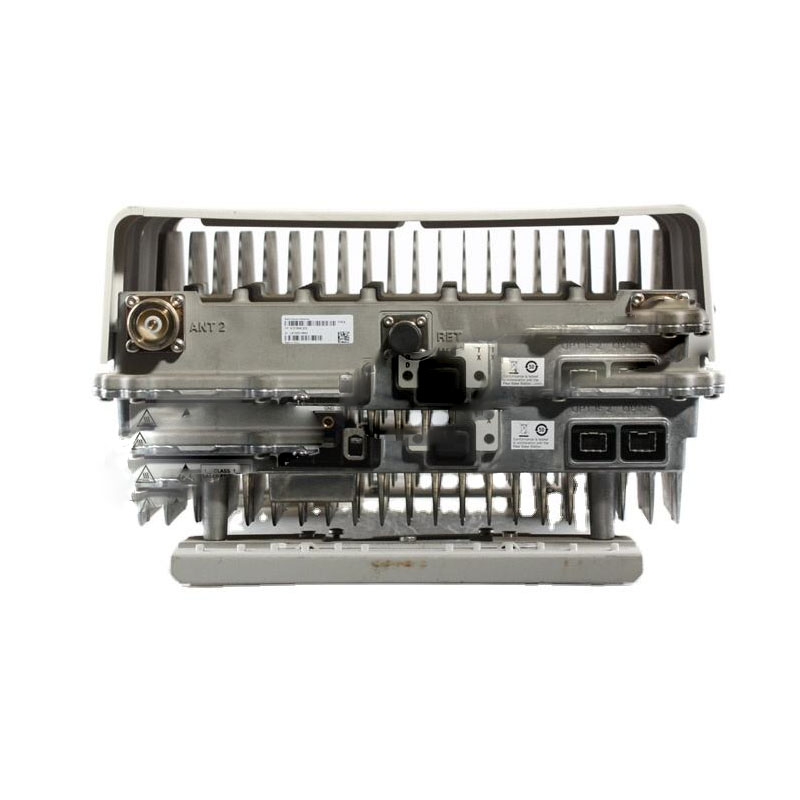

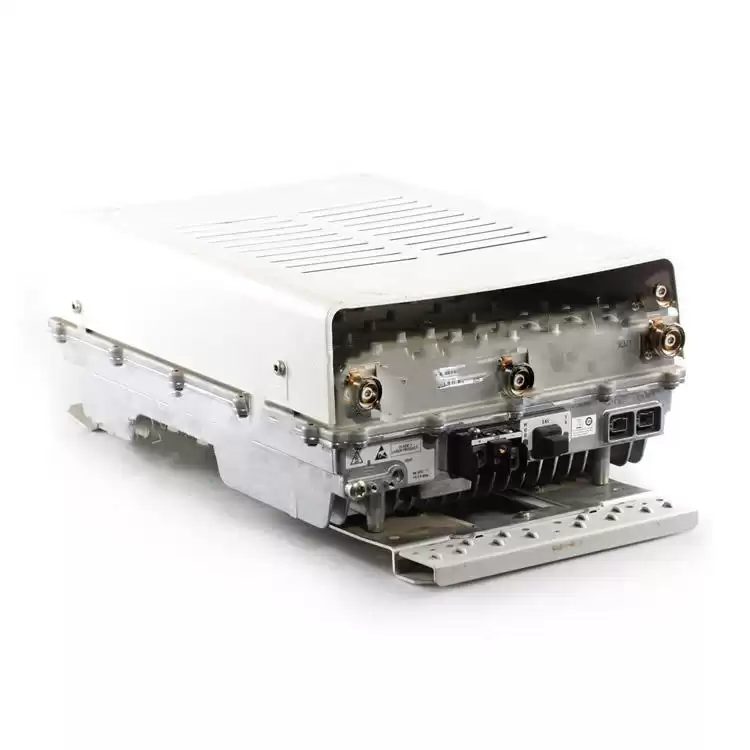

Flexi Remote Radio Head FHEA
Flexi Remote Radio Head FHEA Remote Radio Head is a *-branch MCPA unit optimized for single sector usage with *-way diversity. It consists of two individual branches to transmit and receive Multicarrier signals of multiple radio technologies concurrently. Each branch contains the transmitter and receiver chains and front end filters. Each branch contains one receiver chain in the RRH. The front end filters are fixed filters covering the whole band. FHxA contains inte-grated antenna line supervision. Similar to a RF module, RRH contains the necessary common functionality like digital and control circuitry, OBSAI interface and the needed DC/DC power conversion. RRH uses natural convection cooling, i.e. it does not have cooling fans. There is a common baseband part for the transceivers within the system modules.
The following is the list of interfaces in FHxA:
*8 VDC
External Alarm Interface
Optical OBSAI RP**1 Interface
Duplexed Antenna interfaces
RET interface, AISG 2.0
Antenna tilt support
The following is the list of features supported by FHxA:
Two Transceivers to support 2 TX MIMO
*0 + *0 W output power at antenna connectors
Two Linear Power Amplifiers
Two RF filters for TX/RX
Product Details
Our Advantages
We have NOKIA FHEA 472168A for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
NOKIA FHEA 472168A, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
NOKIA FHEA 472168A represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
