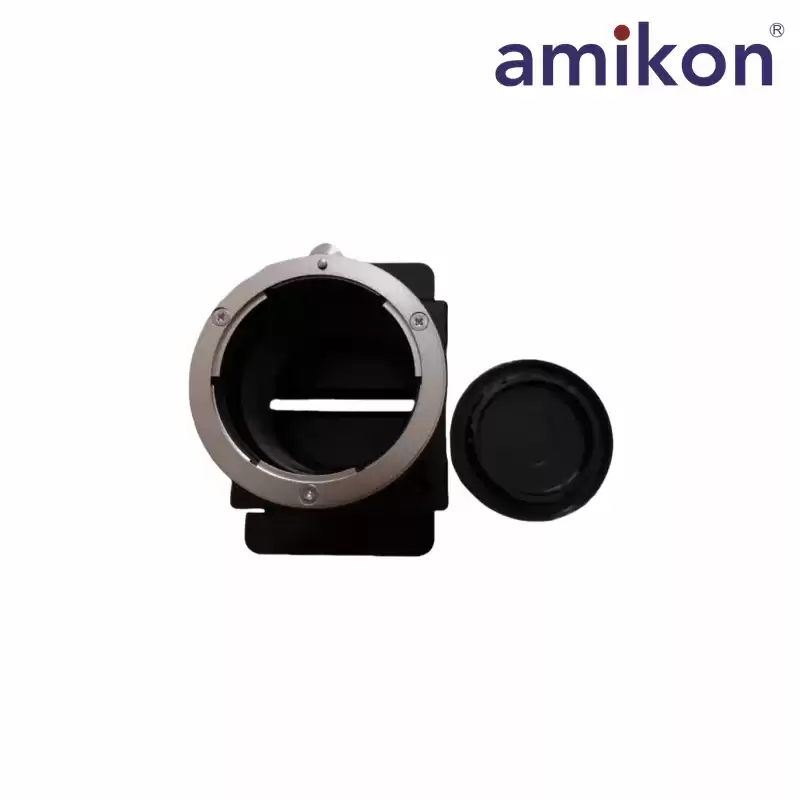

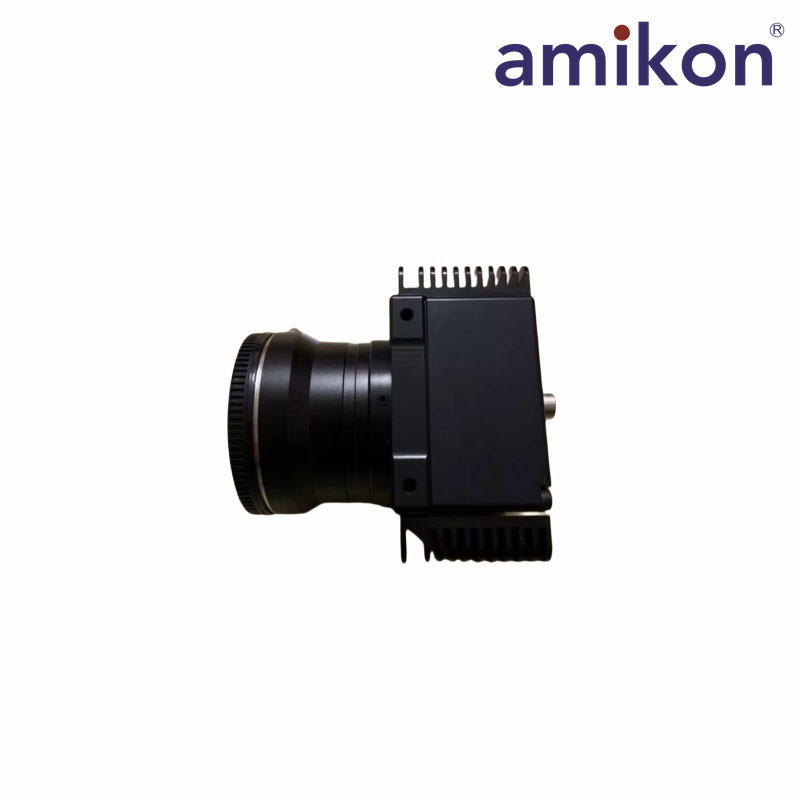

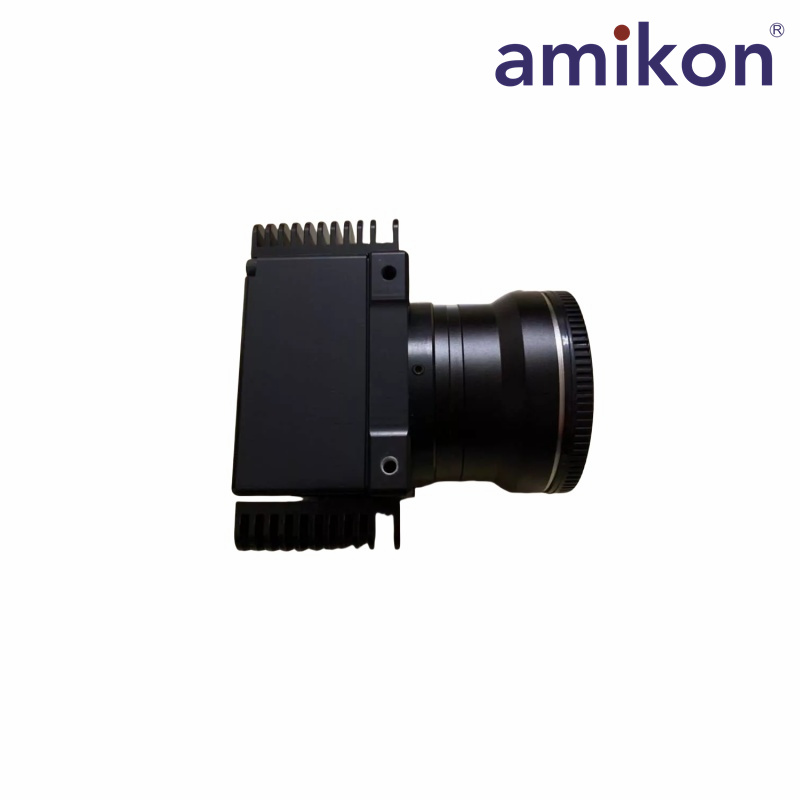

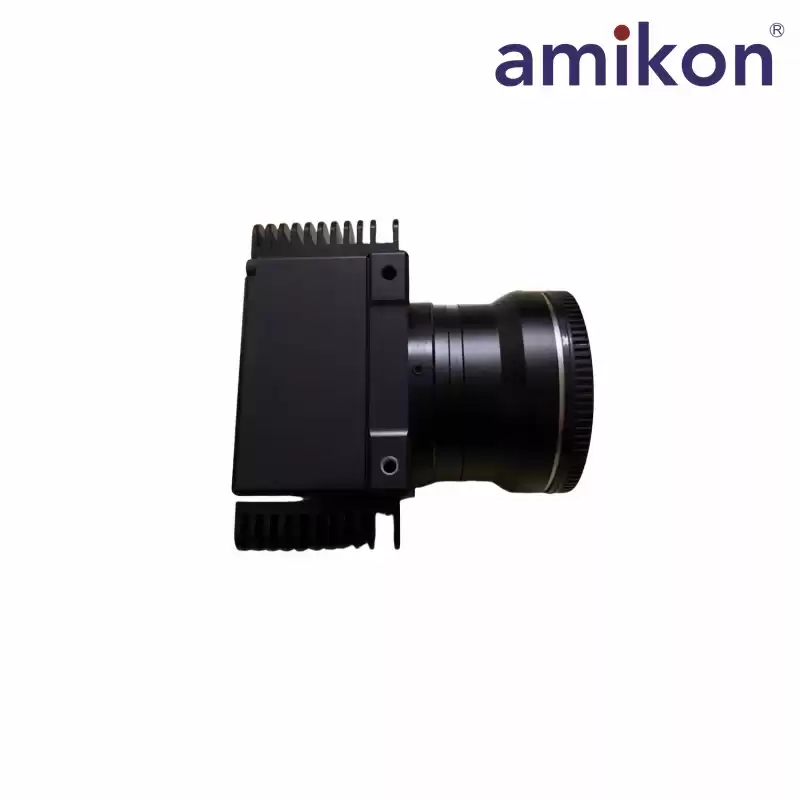

➱SPL4096-140KM F-mount lens
Basler CMOS/Dual line 4096 pixels, 140kHz, mono, 4k, F-mount lens
SPL4096-140KM sprint line scan cameras combine high speed (up to 140 kHz at 4k resolution) and excellent sensitivity.
Next generation CMOS dual line scan technology
Up to 140 kHz at 2k or 4k resolution, up to 70 kHz at 8k resolution
Color line scan with 70 kHz at 4k resolution
High sensitivity at high speed with very low noise
Flexible color concepts and high color fidelity
|
Resolution H x V
|
2 x 4096 px
|
|
Pixel Size horizontal/vertical
|
10 µm x 10 µm
|
|
Line Rate
|
140.00 kHz
|
|
Mono/Color
|
Mono
|
|
Interface
|
Camera Link
|
|
Video Output Format
|
2 tap - 8, 10, or 12 bit / 4 tap - 8,10, or 12 bit / 8 tap - 8 bit
|
|
Pixel Bit Depth
|
12 bits
|
|
Camera Link Clock
|
40/80 MHz
|
|
Synchronization
|
external trigger ; free-run
|
|
Exposure Control
|
edge-controlled, level-controlled, or programmable
|
|
Housing Size (L x W x H) in mm
|
48 x 87 x 62
|
|
Housing Temperature
|
0 °C - 50 °C
|
|
Lens Mount
|
F-mount ; M42 x 1-mount
|
|
Power Requirements
|
12 VDC
|
|
Power Consumption (typical)
|
10.0 W
|
|
Weight (typical)
|
360 g
|
|
Conformity
|
CE
|
|
Manufacturers
|
BASLER
|
Model Type
|
F-mount lens
|
|
Warranty
|
12 Months
|
MOQ
|
1 Piece
|
|
PackagePackage
|
100% Original
|
Payment term
|
100% advance bank wire transfer
|
|
Shipping Ways
|
DHL, UPS, Fedex, and TNT
|
Delivery time
|
1-3DAY
|
|
Inquiry response time
|
Within 1 Hour
|
Service
|
After-sales Service
|
Discounted price will be support if you buy big quantity of SPL4096-140KM
