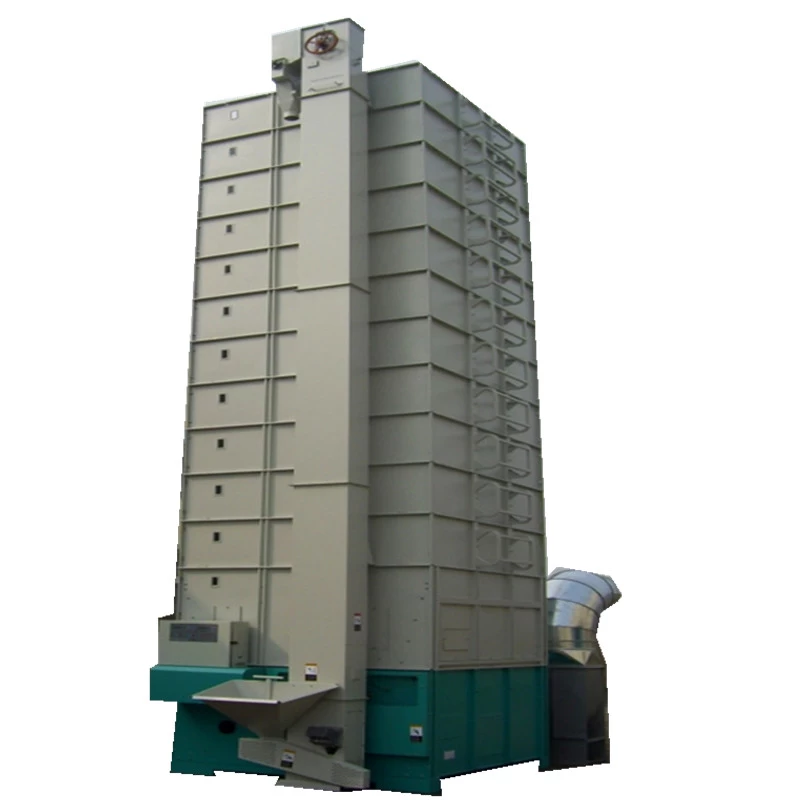

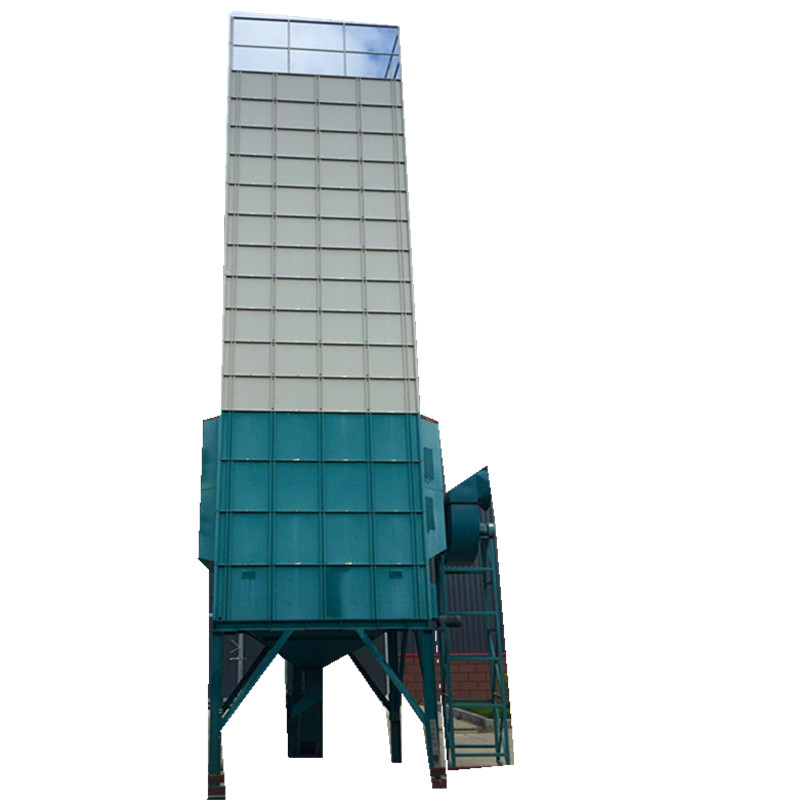

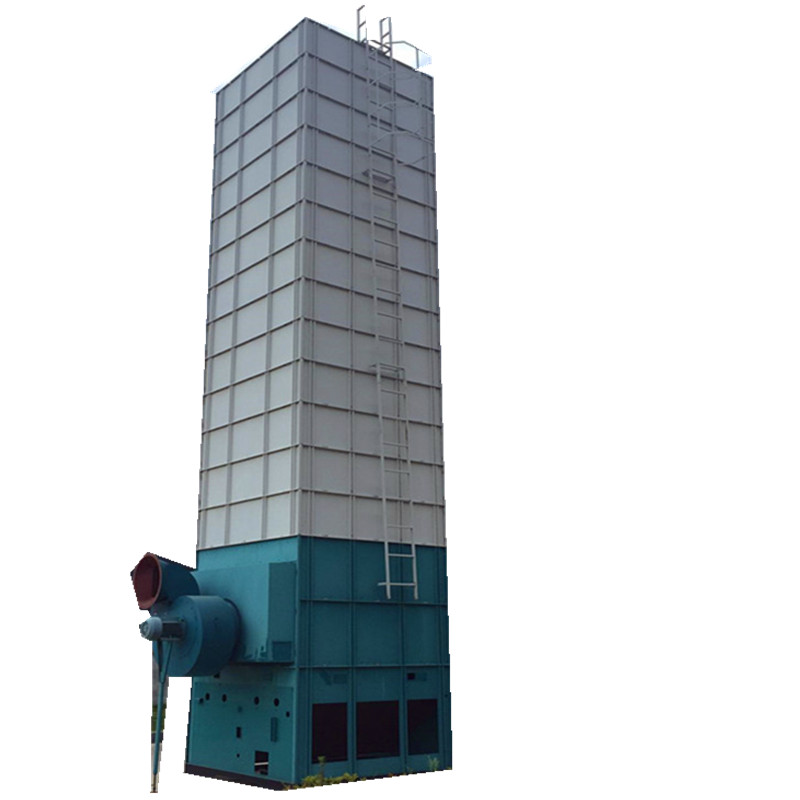

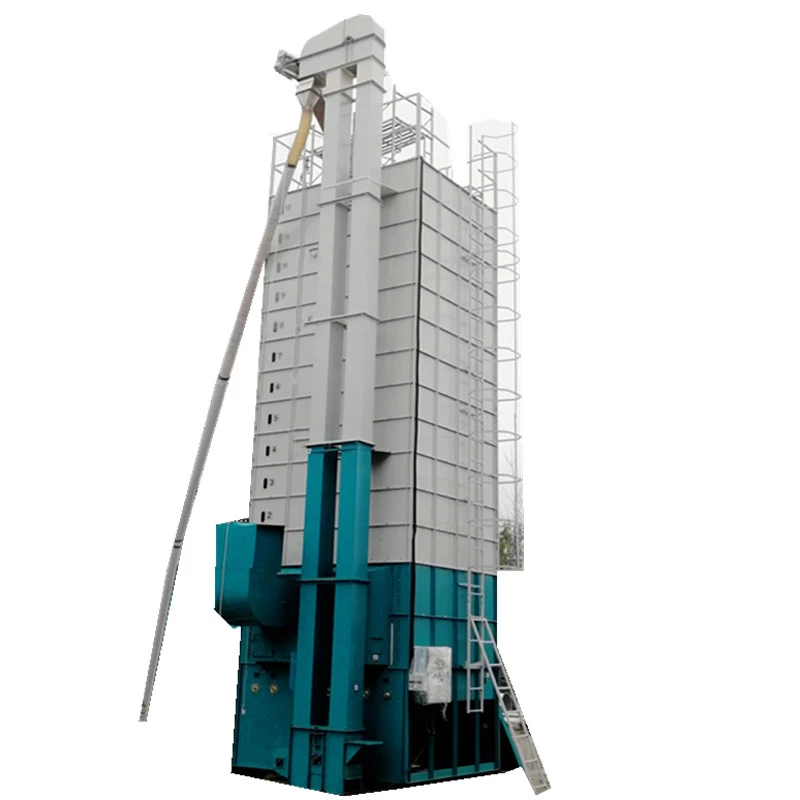

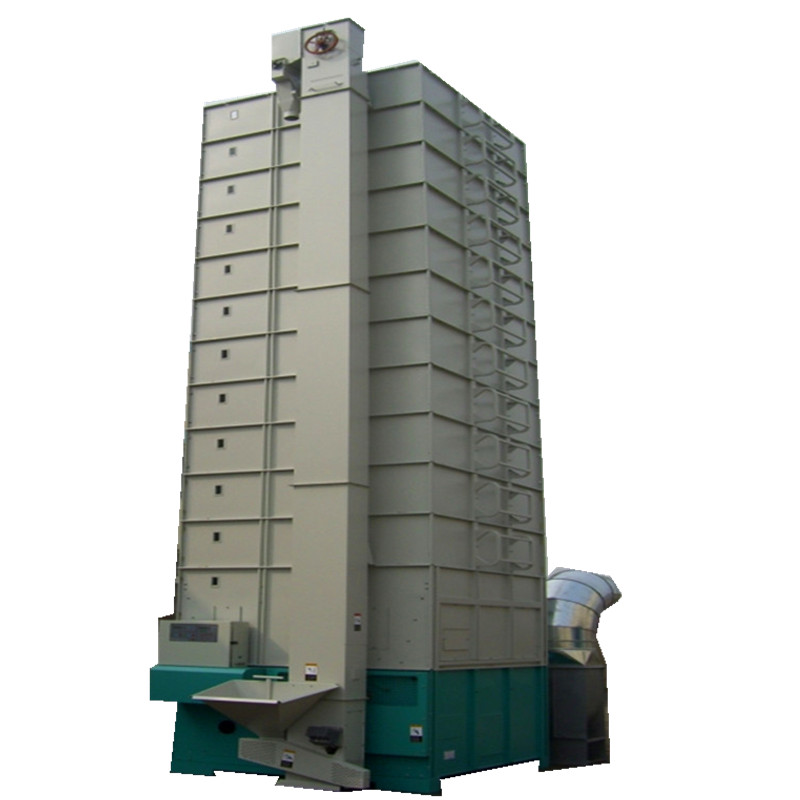

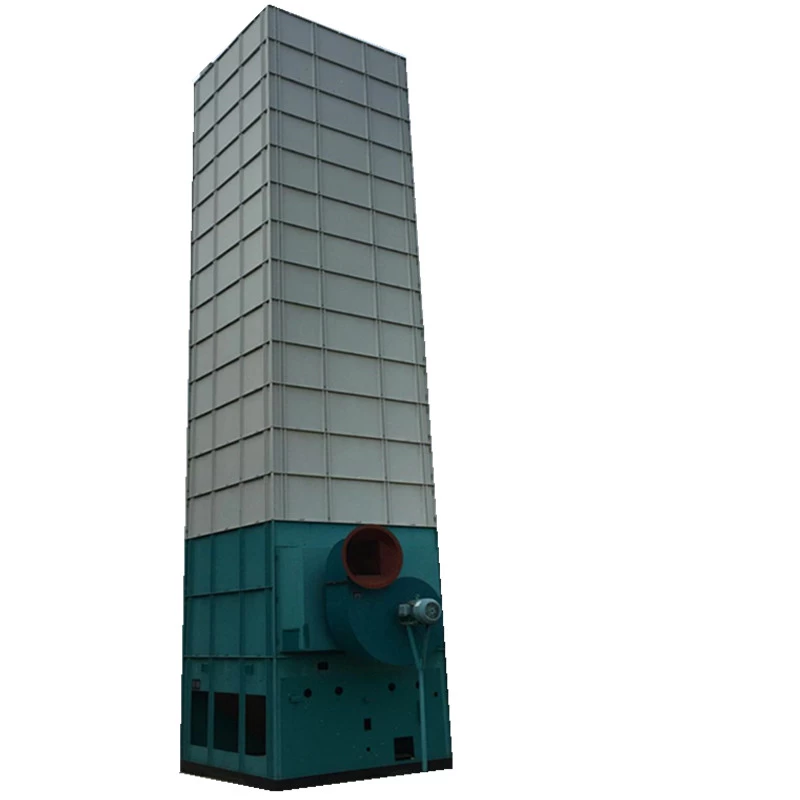

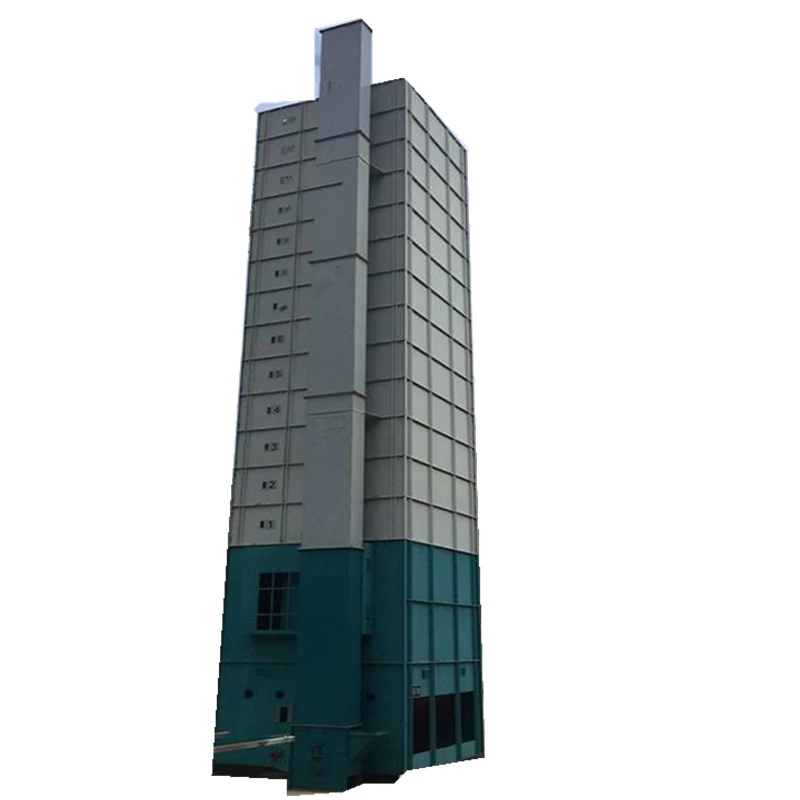

Product Item: Drying machine for paddy wheat corn grain
Application of grain drying machine:
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Product Feature:
Low speed mixing, anti-broken elevator, grain broken rate low, good drying quality
Vertical large-size four-slot and large amount of air drying layer with high drying efficiency
Automatic intelligent electronic control system, the operation is easier
Optional imported online grain moisture meter to achieve accurate detection of grain moisture
Multiple heating method and fuels options with low drying costs

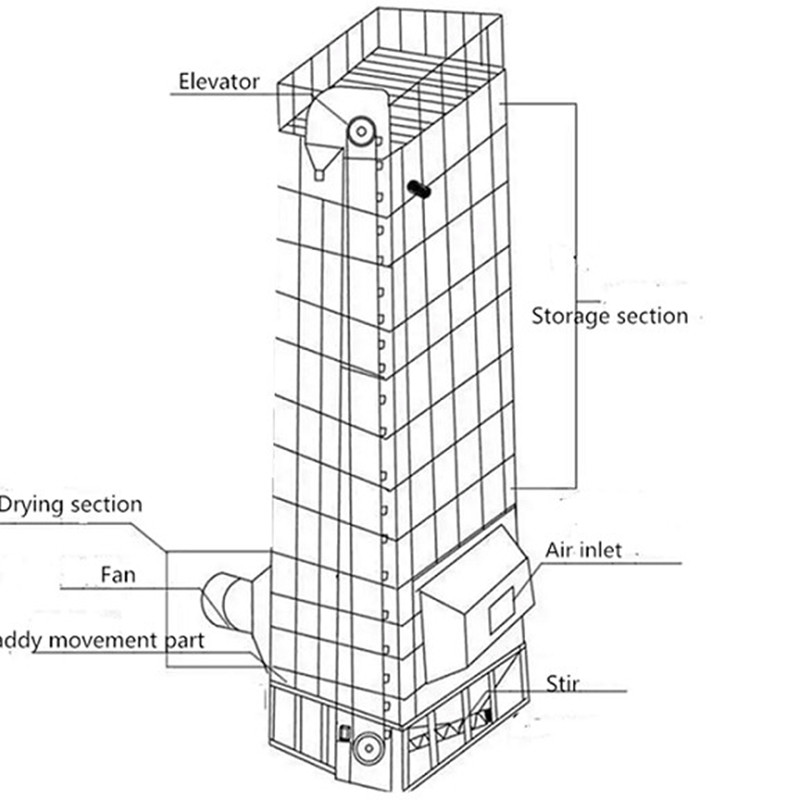

Components of paddy dryer:
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Working Principle of paddy dryer:
It adopts rotary heating device, it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Technical Parameters
|
Dryer Type
|
HP-12.5T
|
HP-15T
|
HP-30T
|
|
Structure Type
|
Fixed
|
Fixed
|
Fixed
|
|
Whole Machine Weight(kg)
|
3240
|
3625
|
4280
|
|
Overall Dimension(Length*width*height) (mm)
|
3836*2480*10547
|
3836*2480*11637
|
4137*4058*12107
|
|
Volume（kg）
|
Paddy(560 kg / m³)
|
2500-12500
|
2500-15000
|
6500-22000
|
|
Wheat(680 kg / m³)
|
3035-15200
|
3035-18200
|
7800-25000
|
|
Heating Method
|
Hot stove, boiler, burner, Indirect heating
|
Hot stove, boiler, burner, Indirect heating
|
Hot stove, boiler, burner, Indirect heating
|
|
Voltage
|
3 phase,380V,50HZ
|
3 phase,380V,50HZ
|
3 phase,380V,50HZ
|
|
Whole Machine Power(KW)
|
9.77
|
9.77
|
10.77
|
|
Capacity
|
Feed time(Minute)
|
50-60
|
60-70
|
60-70
|
|
Discharge time(Minute)
|
45-55
|
50-60
|
50-60
|
|
Precipitation rate(%/hour)
|
0.5-1.2
|
0.5-1.2
|
0.5-1.2
|
|
Safety Devices
|
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown
|
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown
|
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown
|
