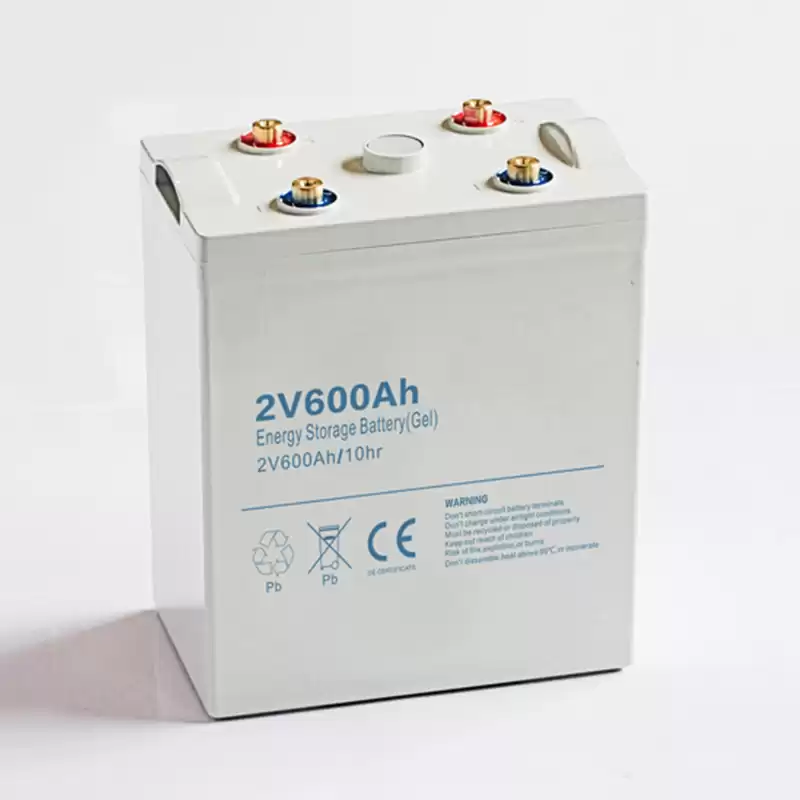

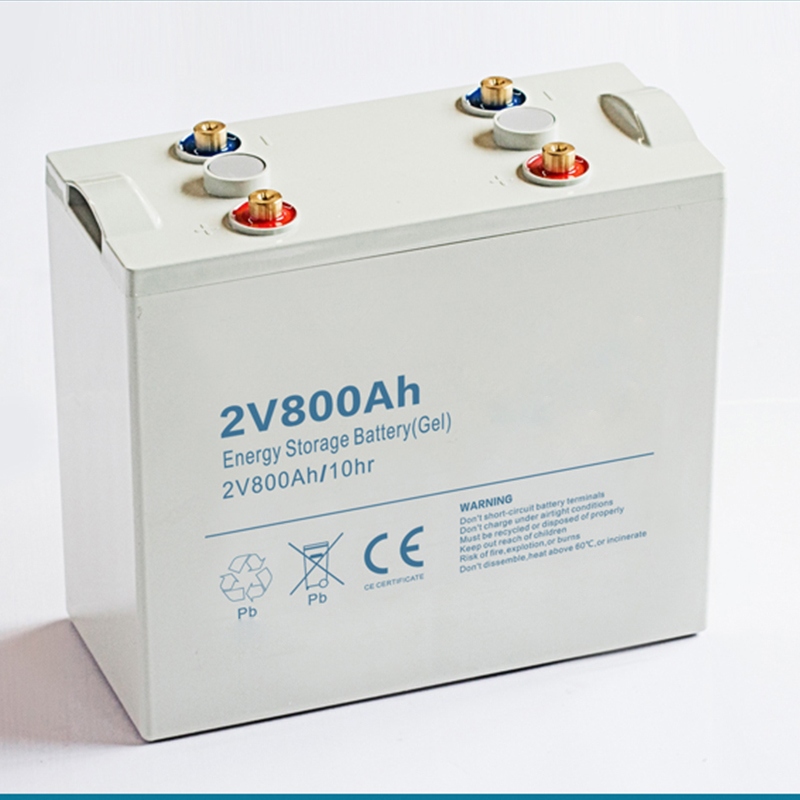

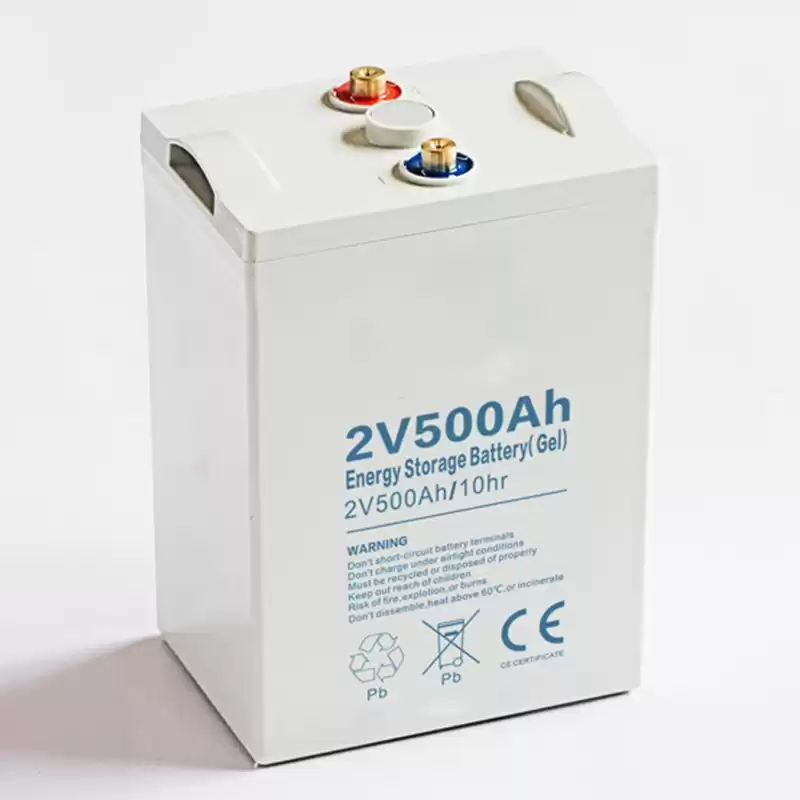

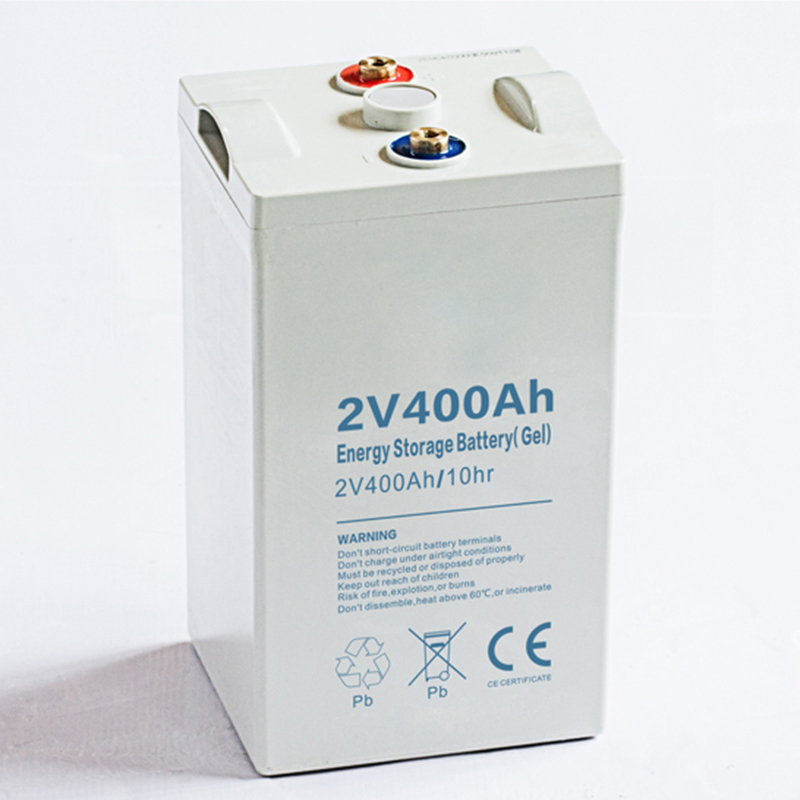

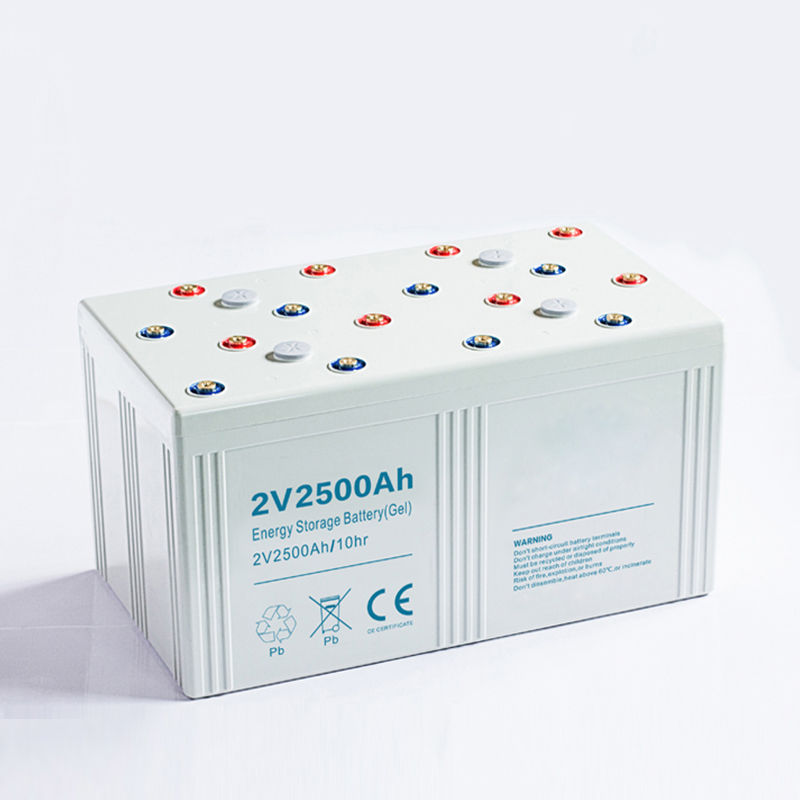

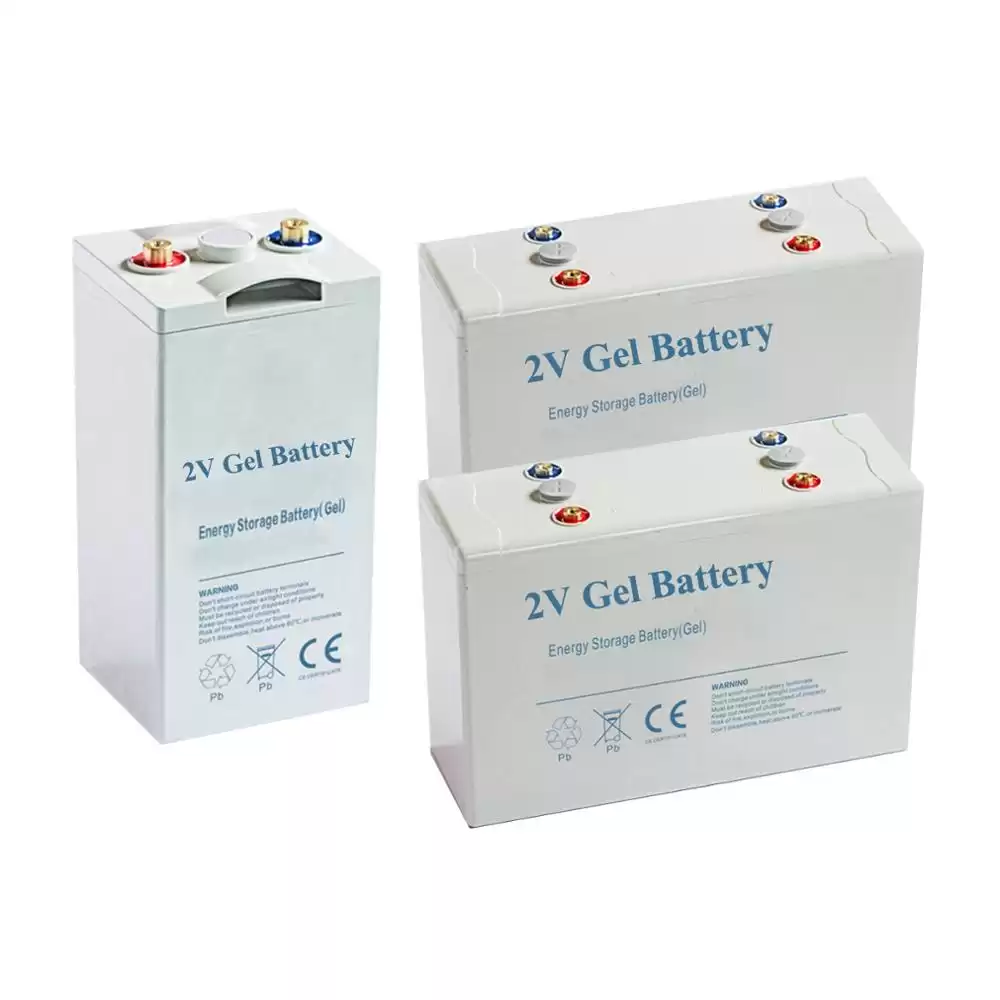

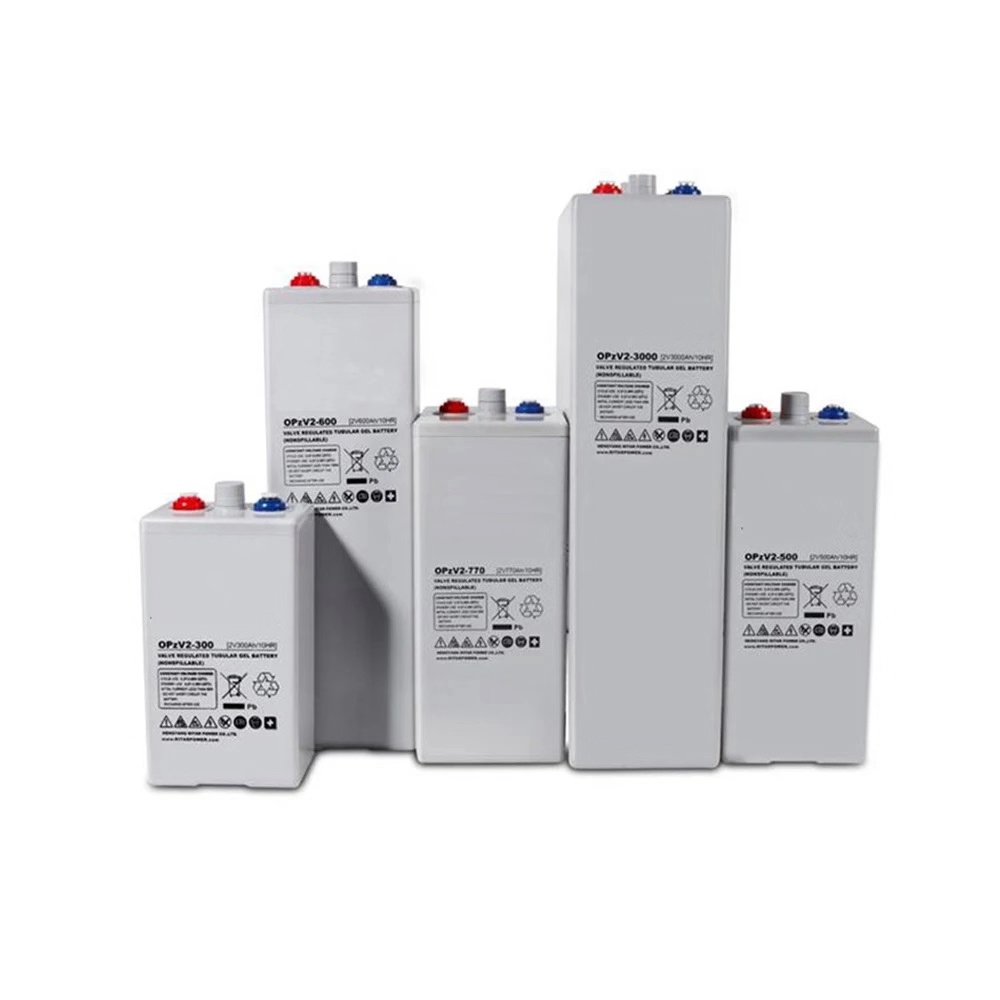

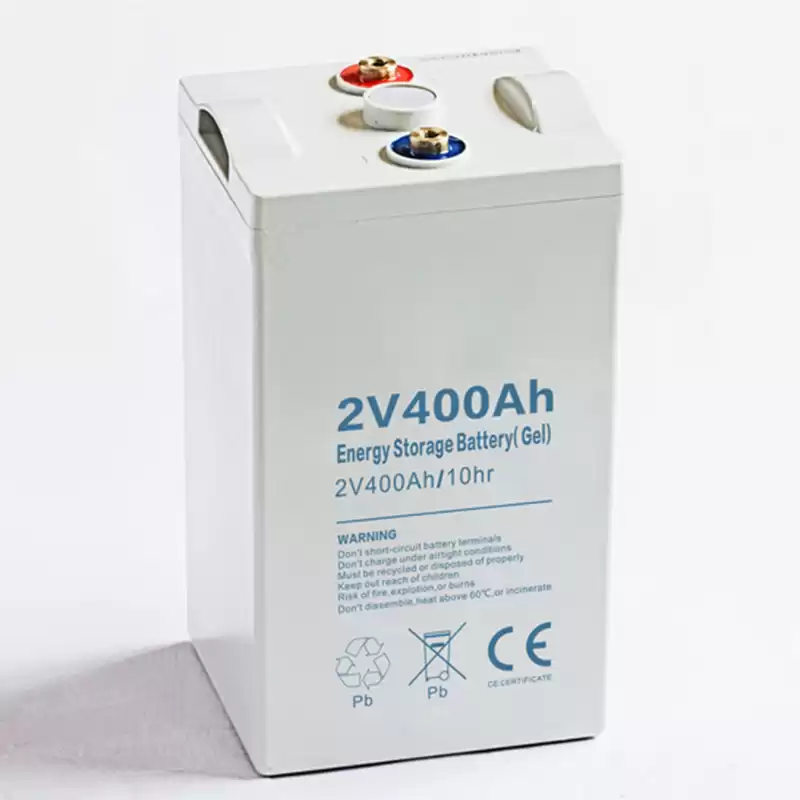

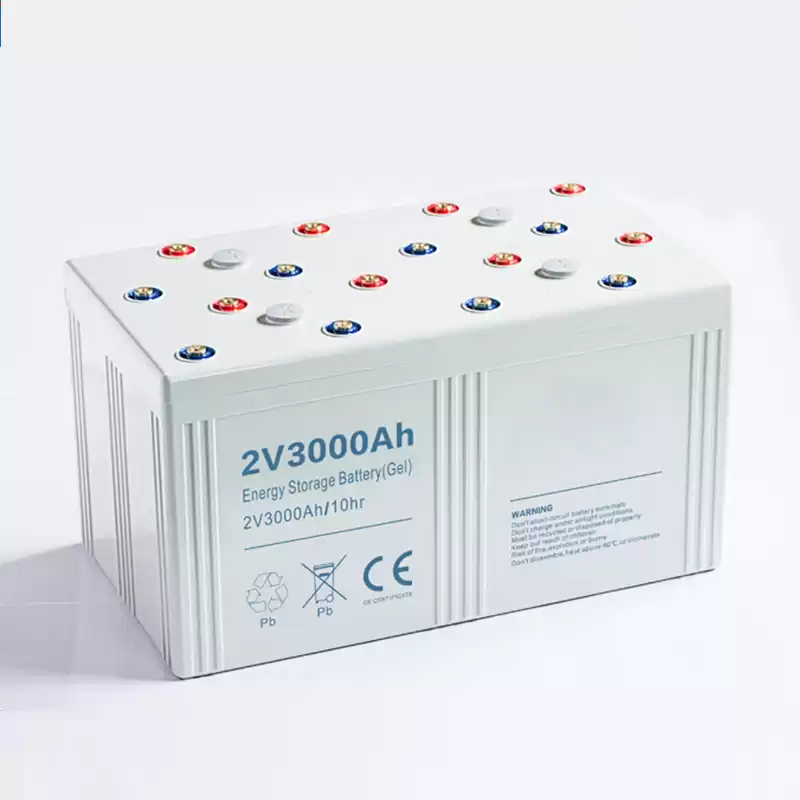

Batteries 2V 200-3000AH Solar Storage Tubular Gel Battery
Products Specification
|
1, Function Parameter
|
5, Environment Temperature
|
|
Norminal Voltage
|
2V
|
Discharge Temperature
|
-40-60℃
|
|
Norminal Capacity(10 hours rate)
|
1000Ah
|
Charge Temperature
|
-15-50℃
|
|
Numbers of Cells
|
1Cell
|
Storage Temperature
|
-15-40℃
|
|
2, Rated Capacity at 25℃(77℉)
|
6, Inner Resistance & Max. Discharge Current
|
|
10hr,1.80V/cell,20℃/68℉
|
1000Ah
|
Fully Charge Battery at 25℃(77℉)
|
0.37mΩ
|
|
5hr,1.75V/cell,20℃/68℉
|
865Ah
|
Max. Discharge Current
|
2500A(5s)
|
|
3hr,1.75V/cell,20℃/68℉
|
762Ah
|
Short Circuit Current
|
5400A
|
|

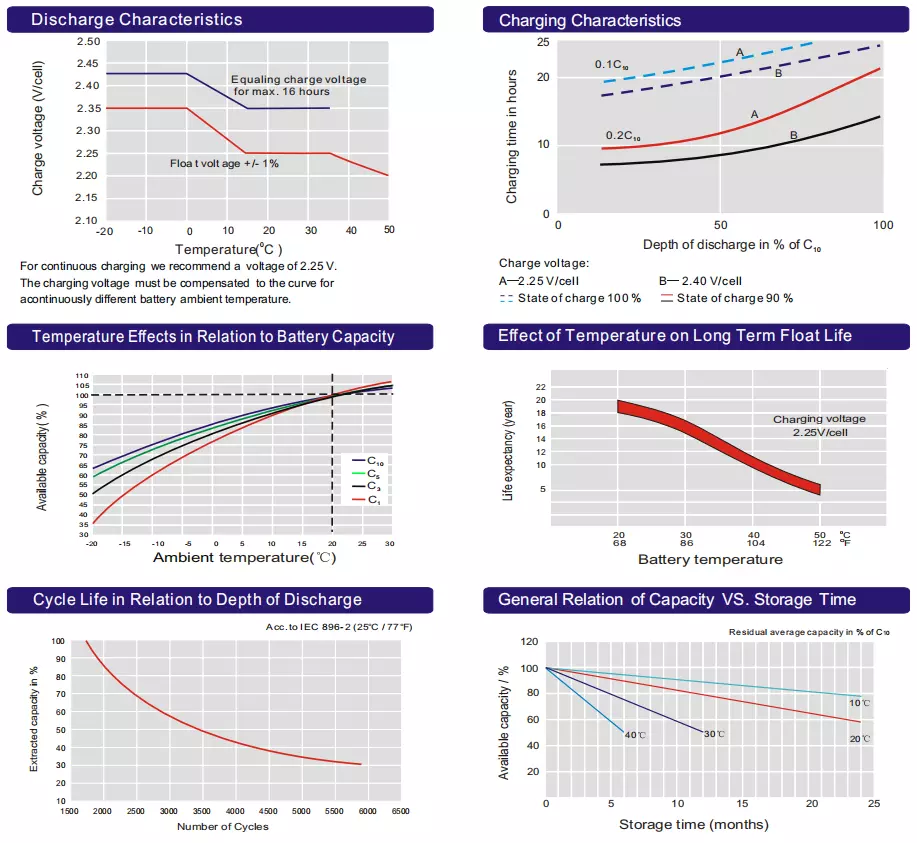

3, Capacity affected by Temperature(10 hour rate)
|
7, Self-discharge@25℃(77℉)
|
|
40℃(104℉)
|
102%
|
Capacity after 3 Month Storage
|
94%
|
|
25℃(77℉)
|
100%
|
Capacity after 6 Month Storage
|
88%
|
|
0℃(32℉)
|
90%
|
Capacity after 9 Month Storage
|
82%
|
|
-15℃(5℉)
|
70%
|
Capacity after 12 Month Storage
|
76%
|
|
4, Constant Voltage Charging at 25℃(77℉)
|
8, Dimension & Weight
|
|
Cycle Charge
|
2.40V~2.50V
|
Length
|
233mm
|
|
Max Charging Current
|
250A
|
Width
|
210mm
|
|
Temperature Compensation
|
-5mV/℃
|
Height
|
646mm
|
|
Float Use
|
2.25-2.3V
|
Total Height
|
681mm
|
|
Temperature Compensation
|
-3mV/℃
|
Reference Weight
|
78.5
|
Package and Delivery
Application
