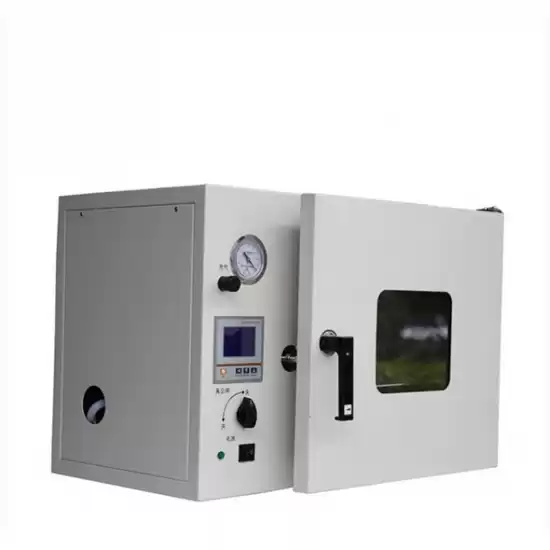

Battery 50L 200C Vacuum Dry Oven (16.3 X 13.5 X 14.5" ) With Digital Temperature Controller
Features
1. Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
2. 52 L Middle size vacuum chamber.
3. 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
4. Silicone door gasket and positive latch door maintain seal at all vacuum levels.
5. Exclusive polycarbonate safety shield protects door glass.
6. Vacuum fittings require .25" (6.35 mm) I.D. tubing.
7. Easy-to-clean #304 stainless steel chamber interior.
8. Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
9. Two removable stacking aluminum shelves included.
10. CE certificated

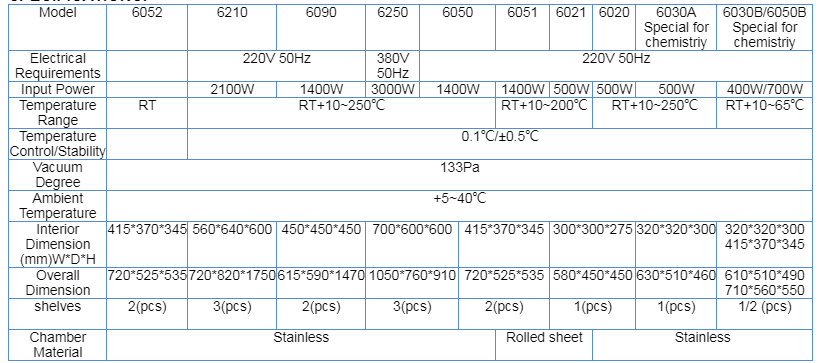

SPECIFICATIONS:
|
Chamber and Door
|
1. The chamber is structured with stainless steel and welded to bracing pieces.
2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 11", 25 Liter)
3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield.
5. Two stainless steel shelves are included to facilitate processing efficiency.
|
|
Vacuum Pump
(optional)
|
Ultimate Vacuum Level: 1000 millitorrs.
|
|
Working Voltage
|
AC 110 - 240 V 50/60 Hz
|
|
Input Power
|
500W
|
|
Working Temperature
|
RT+10 ~ 200°C for the continuous use
|
|
Temperature Controller
|
1. Single point temperature setting
2. Built-in over-temperature protection
3. PID precise temperature control
4. Temperature control accuracy: +/-0.1°C
5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x6" area only
|
|
Fittings
|
This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One years limited warranty with lifetime technical support
|
|
Attention
|
1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
2. Please do not place the sample on the chamber bottom directly.
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
