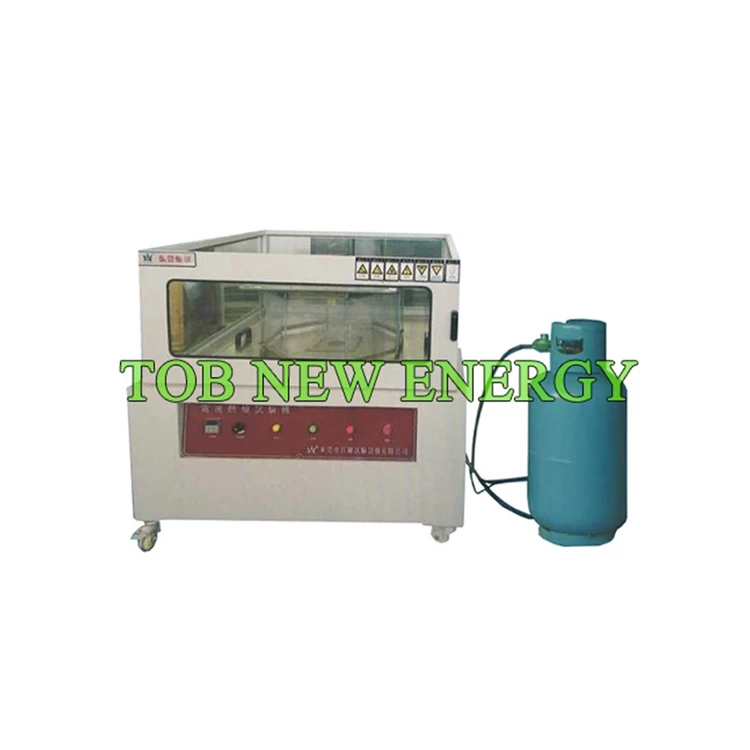

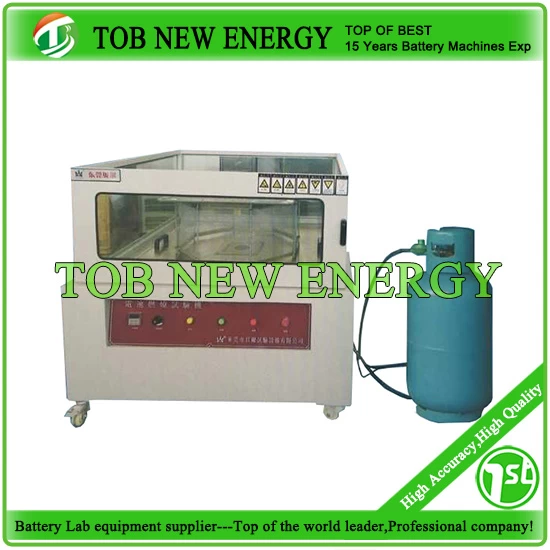

Battery Burning Test Machine For Lithium Battery Safety Performance Testing
SPECIFICATIONS
|
Model
|
Battery burning test machine TOB-BE-6046
|
|
Dimension
|
W1100*D1030*H1110mm
|
|
Source voltage
|
AC 220V， 50HZ
|
|
Power
|
2000W
|
|
Weight
|
About 180kg
|
|
Burner
|
Bunsen burner,Tube diameter9.5mm，length:100mm
|
|
Flame burning time
|
1~9999S or 1~99H59M(can be set)
|
|
Flame burning height
|
10~75±2mm
|
|
Test hood width
|
305mm*355mm，Octagons
|
|
Test hood height
|
610mm
|
|
Remote control distance
|
7M，No solid obstruction
|
|
Burning gas
|
High-purity liquefied petroleum gas（Self-Ready）
|
