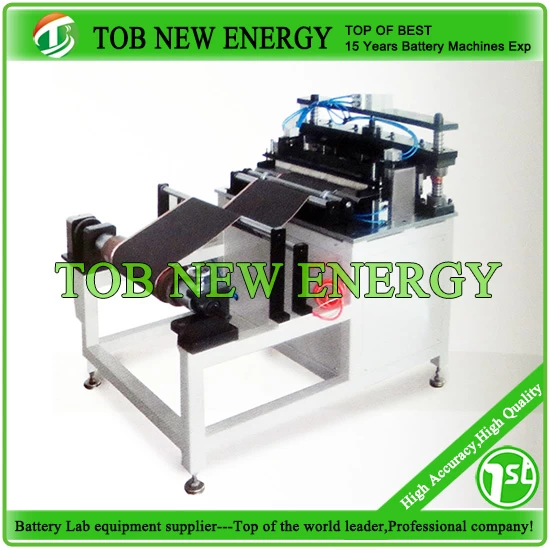

Battery Electrode and Aluminum Laminated Film Cutting Machine

1 Thisbattery cutting machineis used for lithium battery anode/cathode electrode and aluminum laminated film Automatic continuous roller cutting.

2 For thisautomatic cutting machine,the cutting length can be set, and it’s cutting quantity can be counted and set automatically, it is a very useful machine for battery production line.

3 This battery cutting machine is used after electrode coating for cutting the electrode to big pieces for rolling press simply.



500mm Width Automatic Battery Cutting Machine For Lithium Battery Electrode And Aluminum Laminated Film Roller Cuttiing


Specifications



1 Thisbattery cutting machineis used for lithium battery anode/cathode electrode and aluminum laminated film Automatic continuous roller cutting.

2 For thisautomatic cutting machine, the cutting length can be set, and it’s cutting quantity can be counted and set automatically, it is a very useful machine for battery production line.

3 This battery cutting machine is used after electrode coating for cutting the electrode to big pieces for rolling press simply.

Model

TOB-MY-C-30

TOB-MY-C-50

Source voltage

AC220V/110V  50/60HZ

Power

200W

Warranty

One year limited warranty with lifetime support

Applicable width

300mm

500mm

Cutting length

400mm adjustable

500mm adjustable

Applicable roller diameter

400mm

400mm

Cutting speed

500 times/H

400 times/H

Air supply

0.6-0.8MPa

Dimension(L*W*H)

700*650*1850mm

1000*2850*1200mm

Weight

650kg

720kg


Product Display

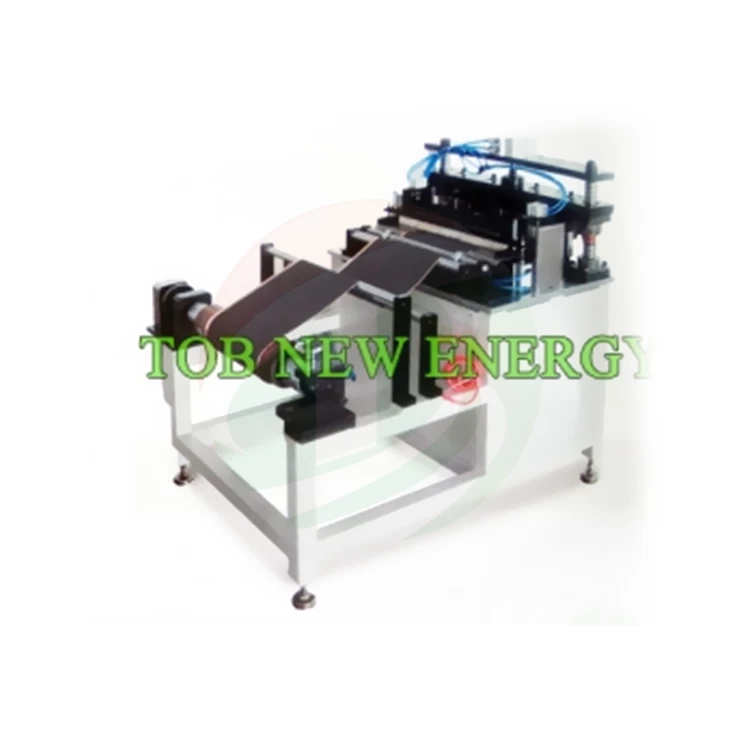

battery electrode cutter
