Battery Electrode Calendering Machine of Lithium Battery Assembly Line
Product Specification
Rolling machine through mechanical transmission, using two vertical pair of rolls way,
carried on the roll pressing,tablet thickness can be adjusted, the roller speed is adjustable, adapted to lithium batteries, nickel hydrogen batteries,capacitors pole piece repression,the roller surface hard chrome plated, the hardness up to HRC62 or more, the product compact structure, smooth rolling, easy to operate.
|
Power Supply
|
AC 380 / 50Hz ,3KW
|
|
Rotational speed
|
4 ~ 9r / min (adjustable)
|
|
Roll working face width
|
160mm, roller diameter φ150mm
(Customized according to customer requirements)
|
|
The roll gap
|
0 ~ 2mm (adjustable)
|
|
The pressure roller surface roughness
|
0.8um, precision:± 0.005mm
|
|
Dimensions (L * W * H)
|
1350 * 700 * 1500mm
|
|
Machine weight
|
220KG
|

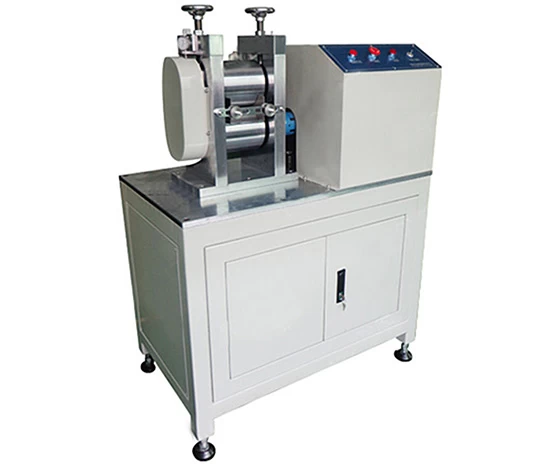

Product Image
Product Packing
