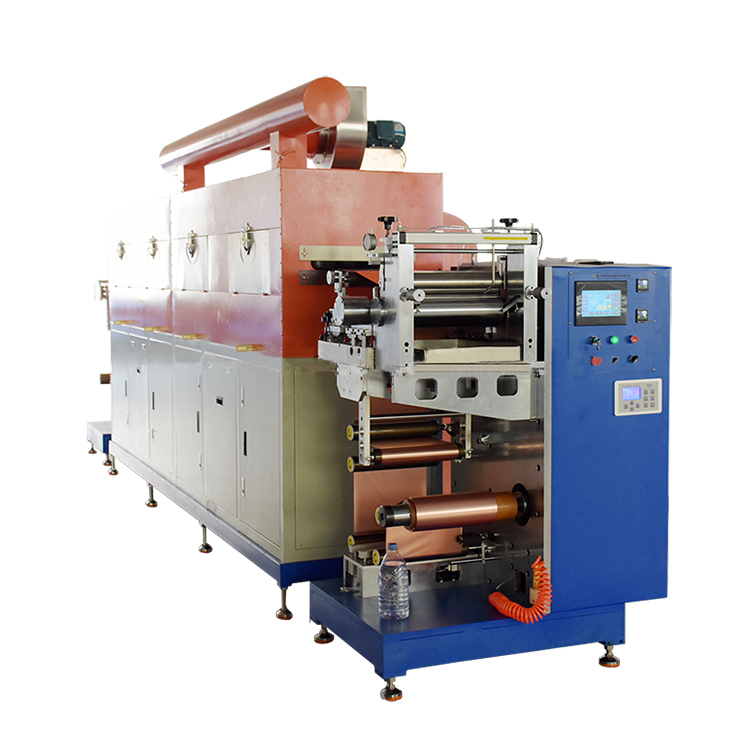

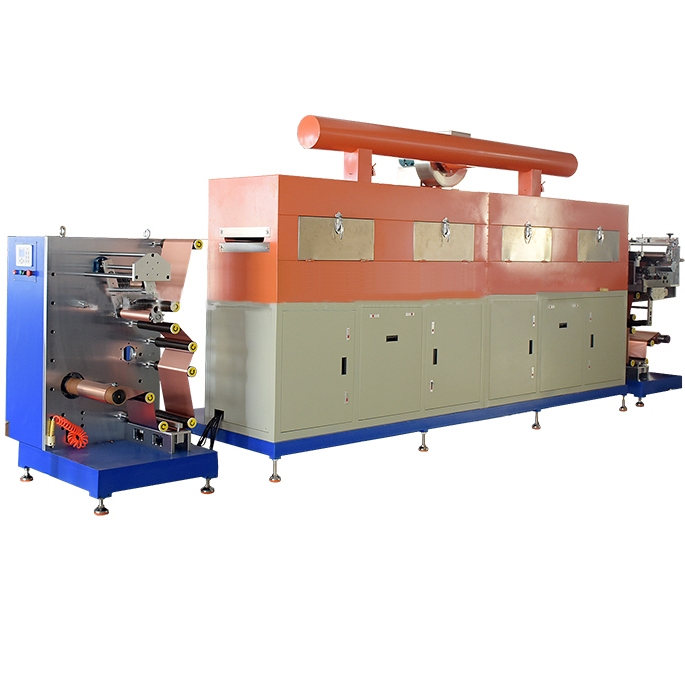

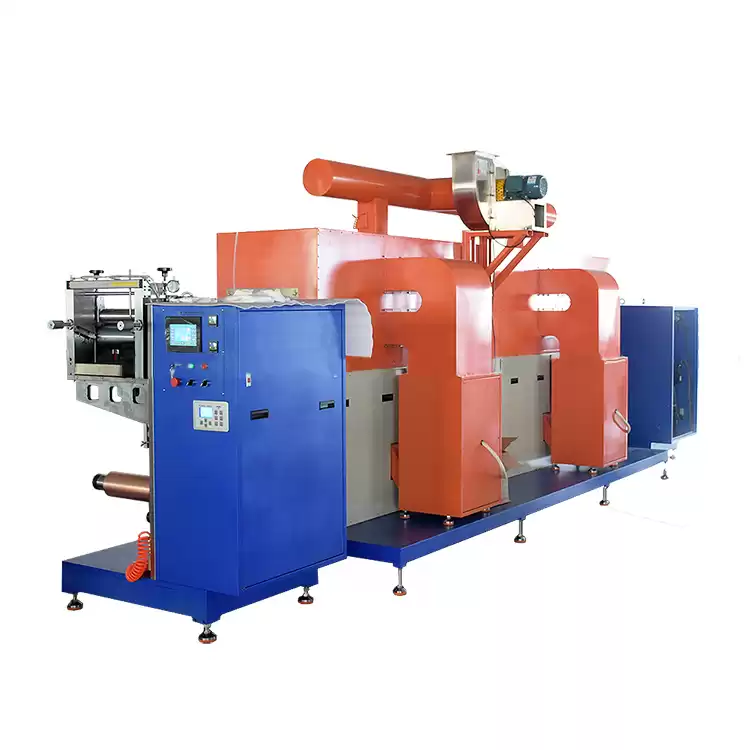

Battery Electrode Intermittent Coating Machine For Production Line
Transfer interval coating machine,the coating thickness is easy to adjust,more accuracy,easy to operate.it can do both continuous coating and interval coating.
Specifications
|
Model
|
TMAX-ITM
|
|
Power
|
3PH 380V,50HZ,
|
|
Suitable system
|
LiFePO, lithium cobalt oxide,Lithium manganese oxide system and coating process of battery anode and cathode
|
|
Operating material thickness
|
Al foil: 10~30um Cu foil: 7~30um
|
|
The design of the roll surface width
|
300mm
|
|
Guaranteed coating width
|
50~280mm
|
|
Mechanical running speed of equipment
|
7m/min
|
|
Coating speed
|
1-7m/min(Depending on the drying condition)
|
|
Suitable for slurry viscosity
|
2000~16000 Cps
|
|
Single coating thickness range
|
50-150μm
|
|
Minimum interval length
|
5mm
|
|
Multi section minimum coating length
|
20mm
|
|
Solvent properties
|
Oiliness solvent NMP(s.g=1.033,b.p=204℃)
|
|
Water solvent H2O/NMP(s.g=1.000,b.p=100℃)
|
|
Suitable solid content
|
Anode S.C. 60%±20%
|
|
Cathode S.C. 60%±20%(PVDF system)
S.C. 50%±5%(SBR system)
|
|
specific gravity
|
Anode 1.5—2.59/cm2
Cathode 1~1.89/cm2
|
|
Coating method
|
Double sides 3 sections, unequal intermittent transfer coating / second sides automatic tracking / continuous transfer coating
|
|
Base material running direction
|
Forward coating ,The base material empty foil movement Positive, reverse.
|
|
Control pressure
|
0 ~ 50N
|
|
Rectify deviation
|
EPC control,stroke 80mm
|
|
Oven length
|
12m
|
|
Material quality
|
SUS304 stainless steel,Inner tank 1.0mm,outside tank 1.2mm
|
|
Warranty
|
One year limited warranty with lifetime support
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
