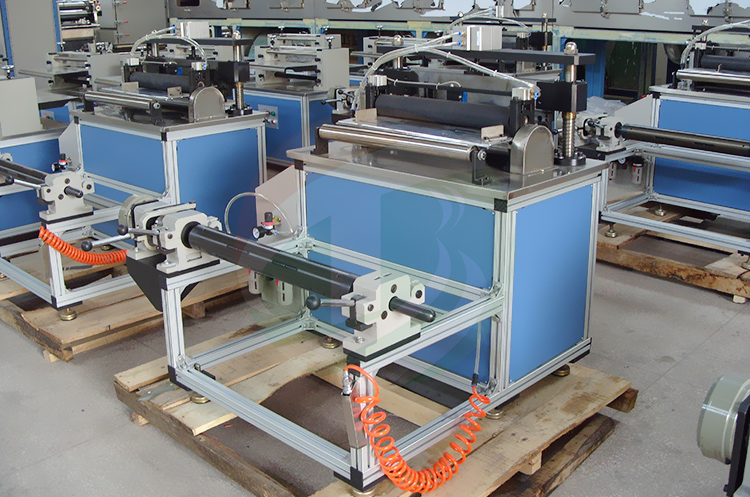

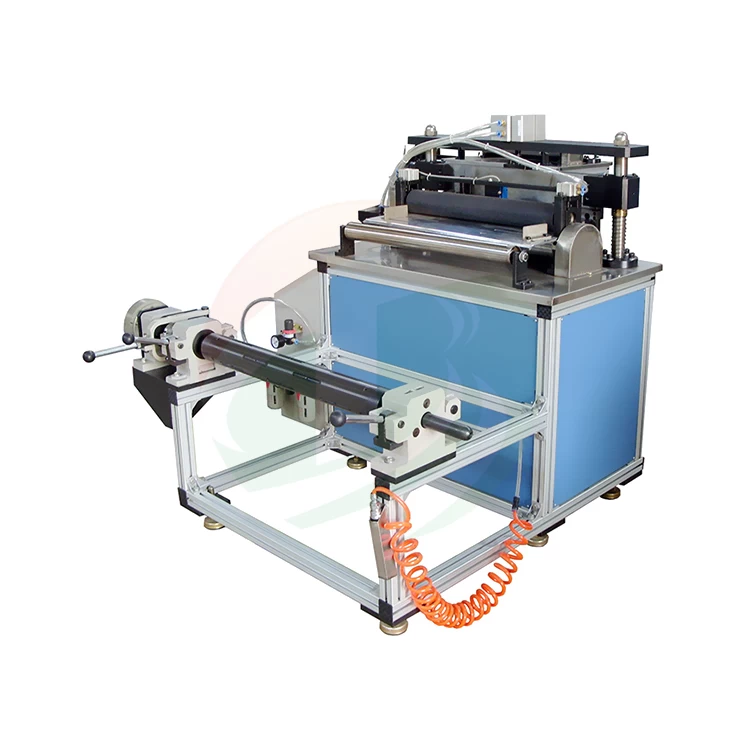

Battery Electrode Shear Cutting Machine 500mm

Model

Lithium ion Battery Electrode Cutter Machine  TOB-DYG-140B-500mm

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

500W

Warranty

One Year limited warranty with lifetime support

Max electrode width

500mm

Cutting material

Battery continuous or clearance cathode and anode electrode

Cutting speed

0-12m/min, adjustable

Cutting accuracy

≤±0.3mm

Dimension(L*W*H)

1450*1250*1050mm

Advantage

1 Driven by stepper motor feed, fixed-length precision is high

2 PLC control, set length, easy to operate, intuitive

3 With digital set fixed-length cutting, clearance trace length shearing

4 Pneumatic drive shear, little noise

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
