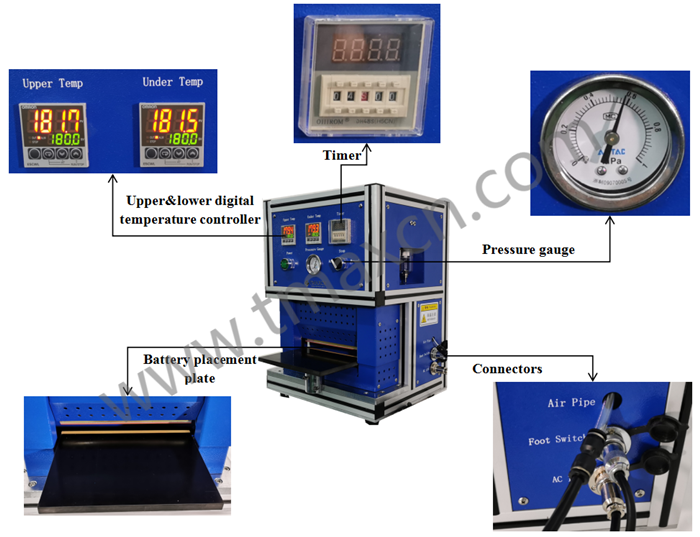

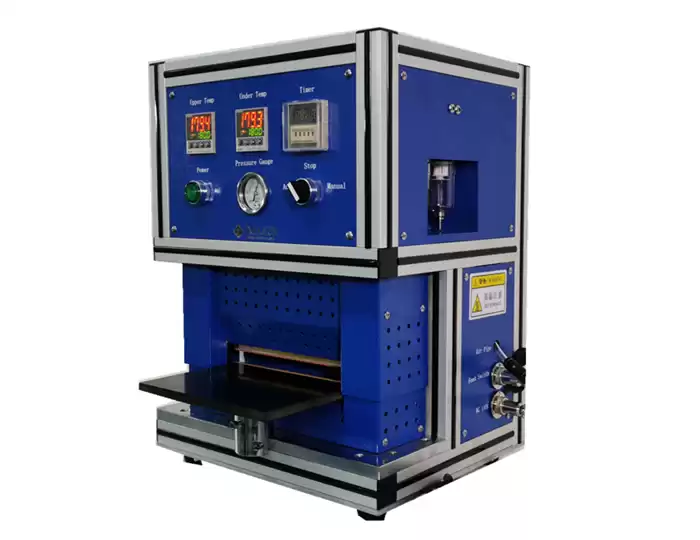

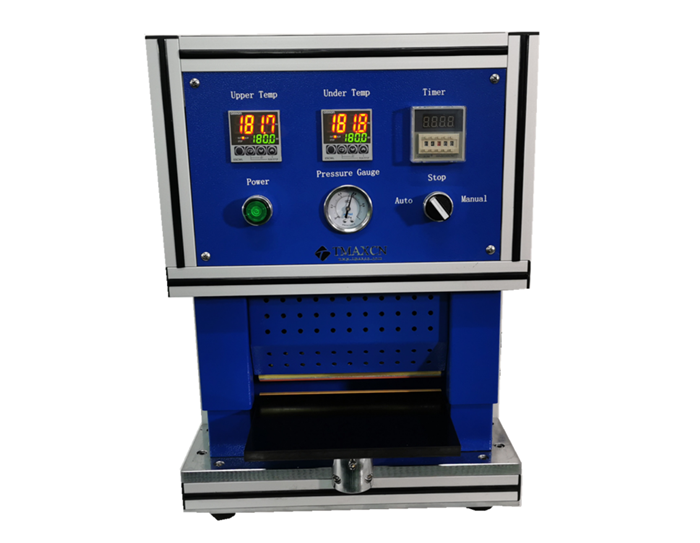

Battery Heat Sealer Crimping Machine for Pouch Cell
1 TMAX-SFZ200 Battery heat sealing machineis a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
2 Thebattery heat sealing machineadopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.
3 It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.
|
Model
|
Battery Heat Sealing Machine TMAX-SFZ200
|
|
Voltage supply
|
110/220V 50/60Hz Single Phase
|
|
Power
|
600W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|

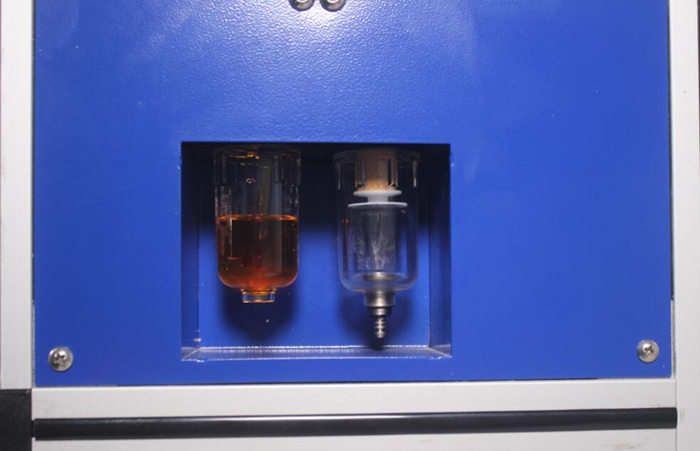

Compressed air
|
≥ 6kg/cm2
|
|
Suitable battery size
|
Top sealing ≤200mm, Side sealing ≤200mm
|
|
Sealing head length
|
200mm, Customized
|
|
Sealing thickness
|
0.15-0.3mm
|
|
Sealing stamp width
|
6mm (Can be customized upon request without extra charger)
|
|
Sealing pressure
|
0.5- 0.7 MPa (0 - 99 psi) adjustable
|
|
Sealing temperature
|
RT-250℃, adjustable with controlling accuracy +/-2 °C
|
|
Sealing time
|
0-99s adjustable
|
|

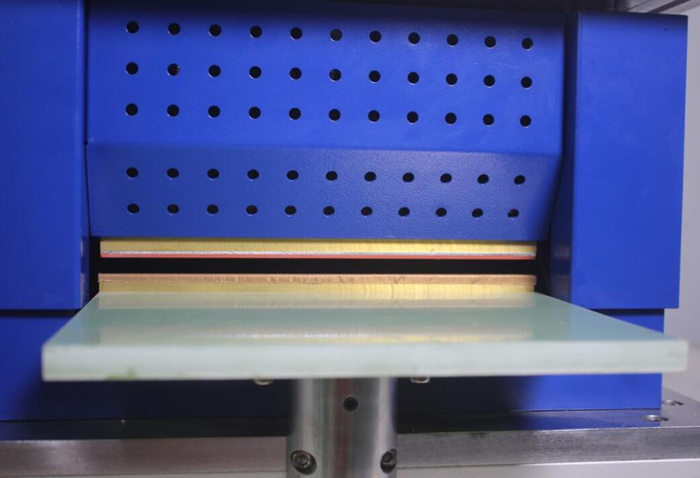

Sealing blade type
|
Soft sealing blade
(Copper sealing blade with aluminum and Silicone rubber piece,
good for Al film case sealing and case with tab in between,
suitable for both top sealing and side sealing)
|
|
Dimension(L*W*H)
|
330*330*500mm
|
|
Weight
|
40kg
|
|
Package size (L*W*H)
|
420*450*580mm
|
|
Package weight
|
58kg
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
