Battery Heat Sealing Machine Price for Pouch Cell Top-Side Sealing
Product specification
1 LIO-SFZ-400 Battery heat sealing machine is a new designed compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation. It has the 400mm length sealing head which is suitable for more larger Pouch cell lab research.
2 The battery heat sealing machine adopts soft sealing bar, It has soft sealing in top sealing head. So it can be used for both top and side sealing for pouch cell.
3 It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.
|
Model
|
Battery Heat Sealing Machine LIO-SFZ-400
|
|
Voltage supply
|
110/220V 50/60Hz Single Phase
|
|
Power
|
600W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Compressed air
|
≥ 6kg/cm2
|
|
Suitable battery size
|
Top sealing ≤400mm, Side sealing ≤400mm
|
|
Sealing head length
|
400mm, Customized
|
|
Sealing thickness
|
0.15-0.3mm
|
|
Sealing stamp width
|
6mm (Can be customized upon request without extra charger)
|
|
Sealing pressure
|
0.5- 0.7 MPa (0 - 99 psi) adjustable
|
|
Sealing temperature
|
RT-250℃, adjustable with controlling accuracy +/-2 °C
|
|
Sealing time
|
0-99s adjustable
|
|
Sealing blade type
|
Soft sealing blade
|
|
Dimension(L*W*H)
|
330*550*500mm
|
|
Weight
|
60kg
|
|
Package size (L*W*H)
|
390*650*700mm
|
|
Package weight
|
70kg
|

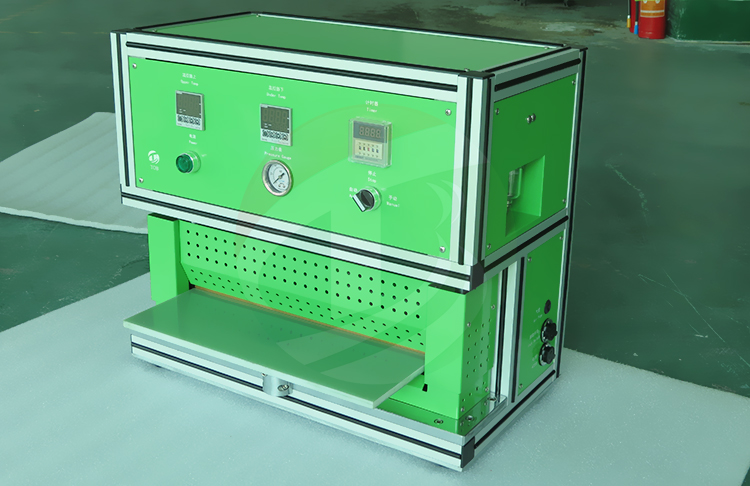

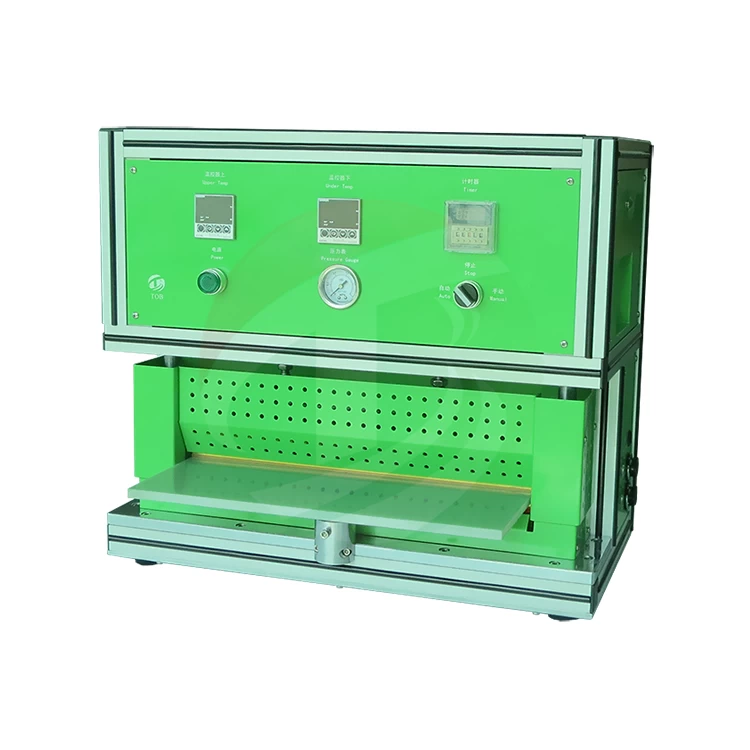

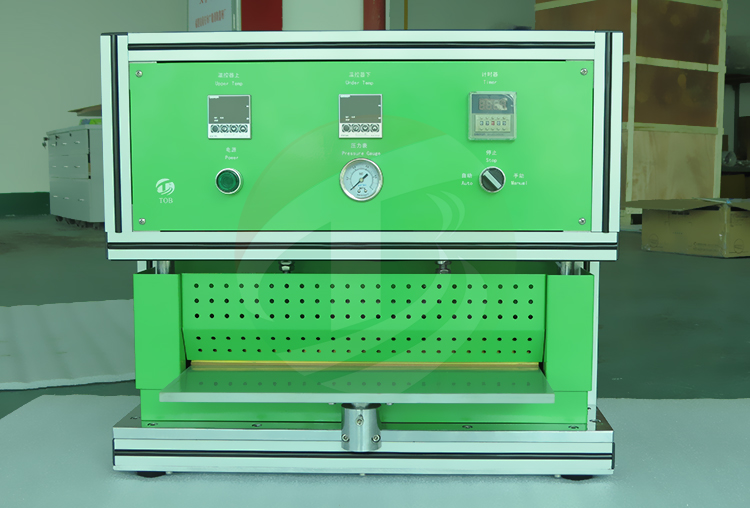

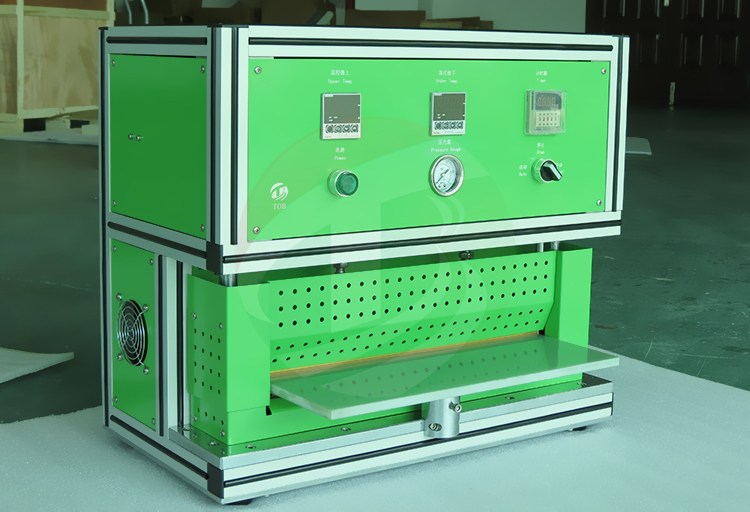

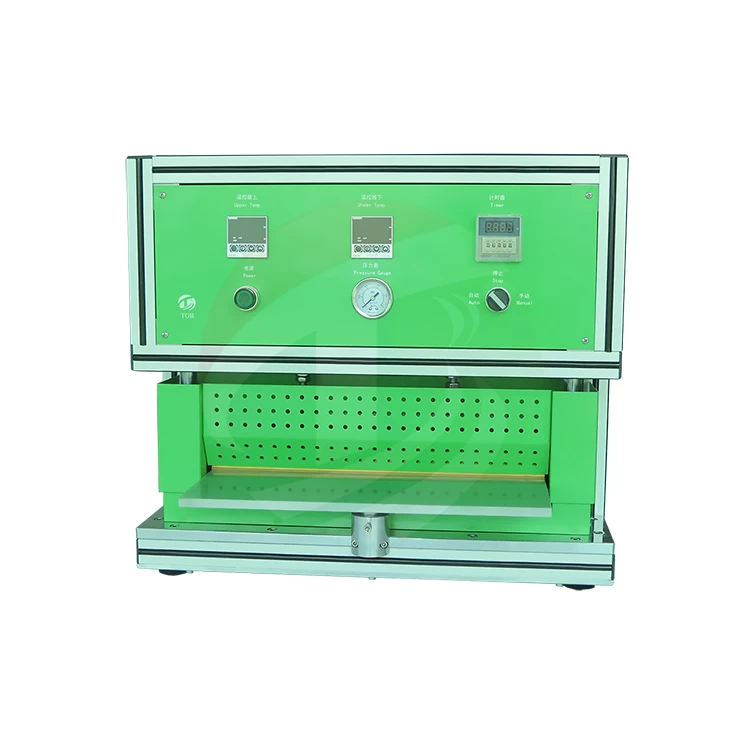

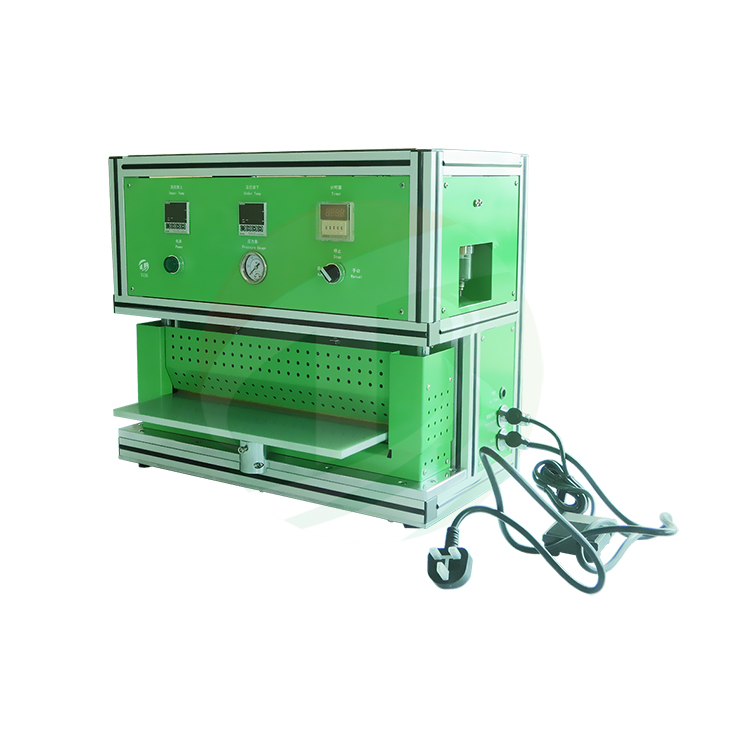

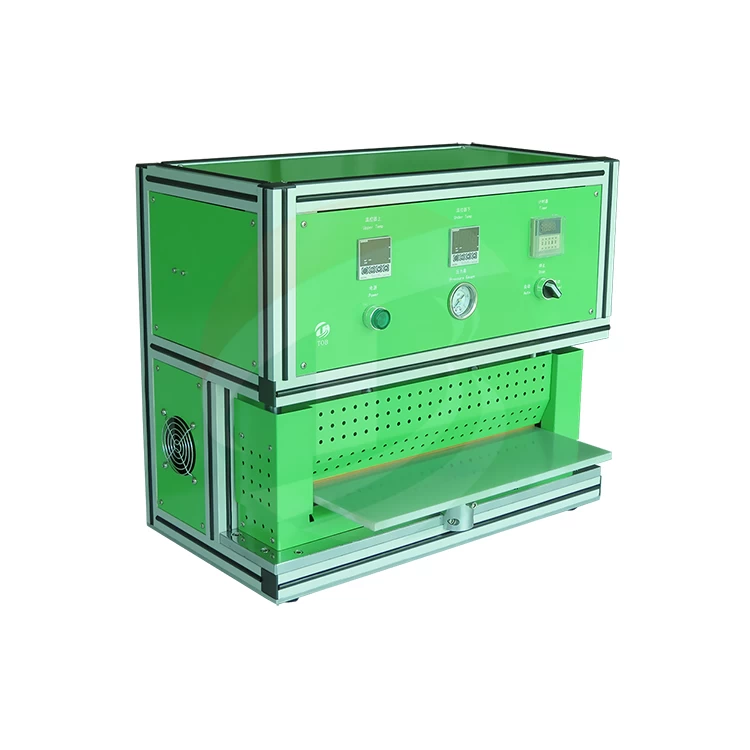

Product Images

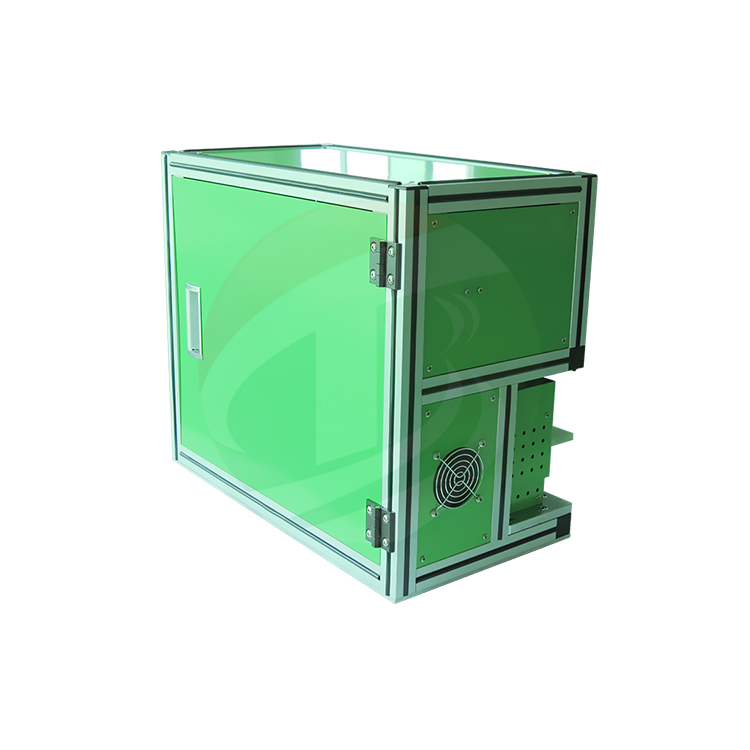

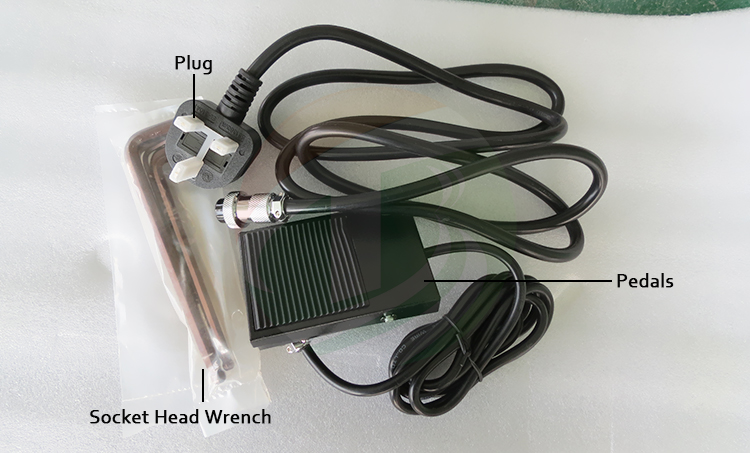

Product Packing
