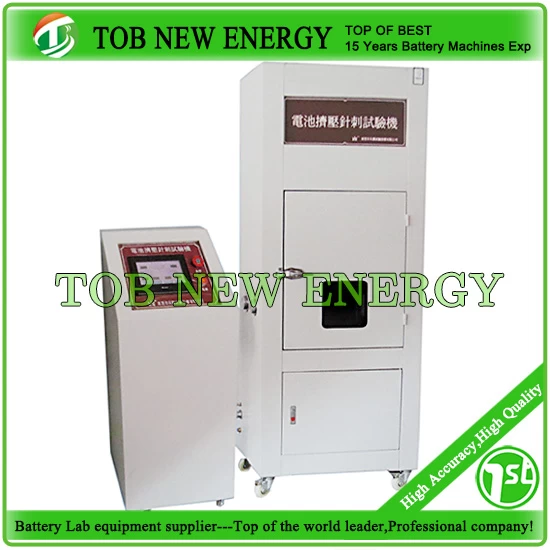

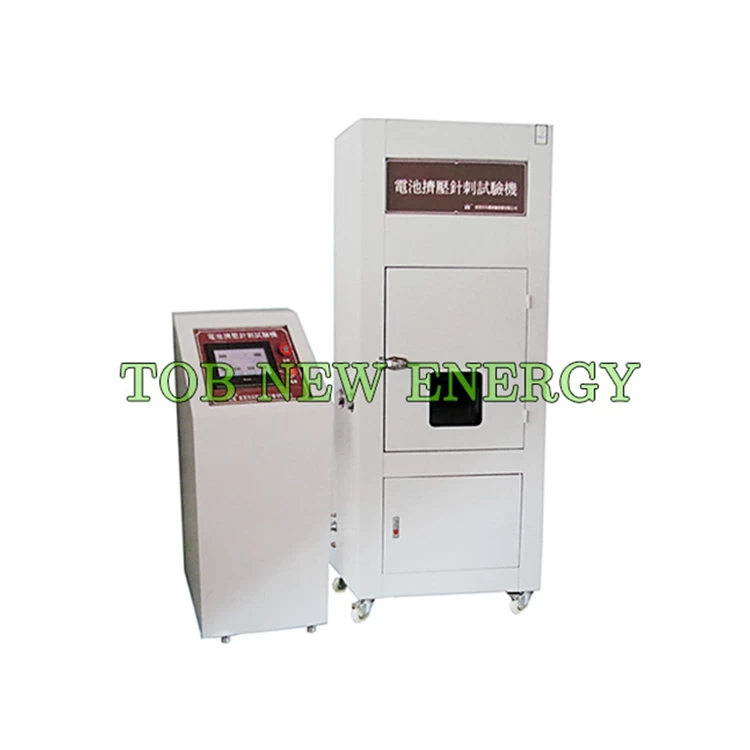

Professional Battery needling and crushing machine For Lithium Battery Safety Performance Testing
SPECIFICATIONS
|
Model
|
Battery Needling And Crushing Machine TOB-BNCT
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Dimension
|
750*650*1900mm
|
|
Weight
|
250kg
|
|
Controller dimension
|
330*330*1040mm
|
|
View window dimension
|
200*200mm, 10mm thickness Double explosion-proof glass
|
|
Source voltage
|
AC 380V, 50HZ
|
|
Power
|
1500W
|
|
Needling/Crushing mode
|
Hydraulic
|
|
Force range
|
1-15KN，±1% accuracy
|
|
Plate diameter
|
150mm
|
|
Max testing size
|
200*200*200, adjustable
|
|
High temperature resistant steel needle
|
φ3mm φ5mm φ8mm
|
|
Needling speed
|
0-80mm/s, adjustable,
|
|
Delayed function
|
0-9999s can be set
|
|
Anti explosion case
|
Bottom is provided with four universal wheels, and can move freely
|
|
Exhaust fan port
|
15mm diameter
|
