Battery Roller Coating Machine for Productin Line
Product Specification
The battery coating machine adopts continuous coating mode, is mainly used for lithium battery pilot scale production line.
|
Model
|
Lithium ion Battery Coating Machine LIO-130-500-6M
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
28000W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Max electrode width
|
400mm
|
|
Configuration
|
Put volume (with tension adjustment), coating, drying box 6m, main drive,
winding (with tension, rectifying);
|
|
Winding rectifying control precision
|
≤± 0.2mm
|
|
Baking oven
|
Stainless steel, 2M/section,
Dry temperature : RT-150℃, adjustable, With accuracy ±3℃
|
|
Coating speed
|
0-5m/min, adjustable
|
|
Coating accuracy
|
≤±0.003mm
|
|
Control pressure
|
0-25N, adjustable
|
|
Air compression
|
0.5-0.7MPa
|
|
Coating mode
|
Single face continuous coating
|
|
Application foil
|
Aluminum foil, Copper foil
|
|
Advantage
|
1 This machine is single surface continuous coating machine,
2 Drying oven is heated hot air circulation structure
3 Equipped with tension control, winding rectifying automatic control
4 All parts contacted with electrode with chrome plated or stainless steel corrosion resistance
|

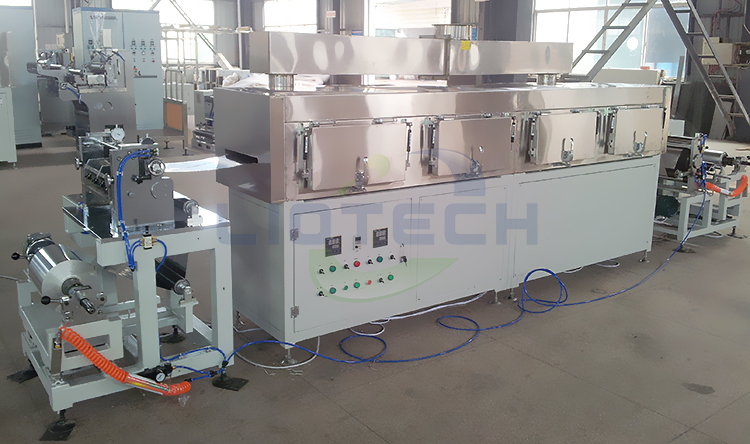

Product Images
