Battery Secondary Vacuum Heat Sealing Machine for Pouch Cell
Specifications
This device is mainly applied to flexible packaging (medium and small size) lithium battery in the injection of liquid after standing vacuum, hot compression package; simple secondary packaging.
|
Cavity made of aluminum alloy, corrosion-resistant,
solid structure
|
|
Vacuum up to-90Kpa ~ 0 adjustable (the buyer-owned
vacuum pump)
|
|
Head temperature:
|
RT ~ 250 ℃,
temperature adjustable
|
|
Temperature control accuracy:
|
± 1.5 ℃
|
|
Heat sealing pressure:
|
0 ~ 7Kg / cm2 adjustable
|
|
Sealing time:
|
0 ~ 99 seconds adjustable
|
|
Edge width:
|
5mm (according to customer requirements)
|
|
The maximum edge size:
|
200mm
|
|
Head parallelism:
|
with triple carbonless paper, head pressure at 0.6MPa,
the temperature at 200 ℃ when
the seal out of the seal
|
|
Air consumption:
|
about 0.2L compressed gas / each time
|
|
Pneumatic working speed:
|
≥ 180 times / h
|
|
Power:
|
300w heat pipe, heating when the power consumption of
about 0.6KW
|
|
Power supply:
|
220V / 50Hz
|
|
Power:
|
50W
|
|
Compressed air source:
|
0.5 ~ 0.7Mpa
|
|
Dimension
|
|
Working Department:
|
520mm * 350mm * 650mm
|

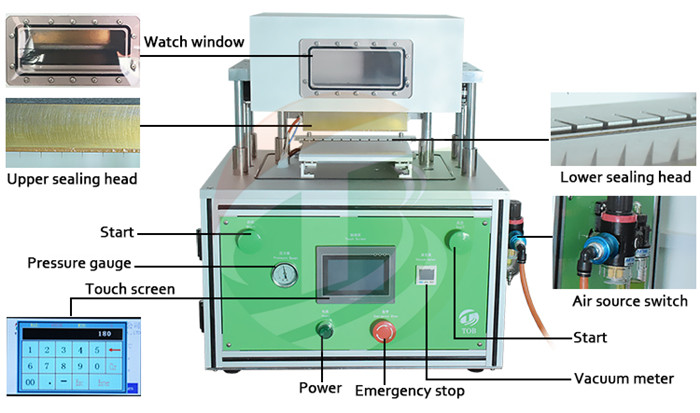

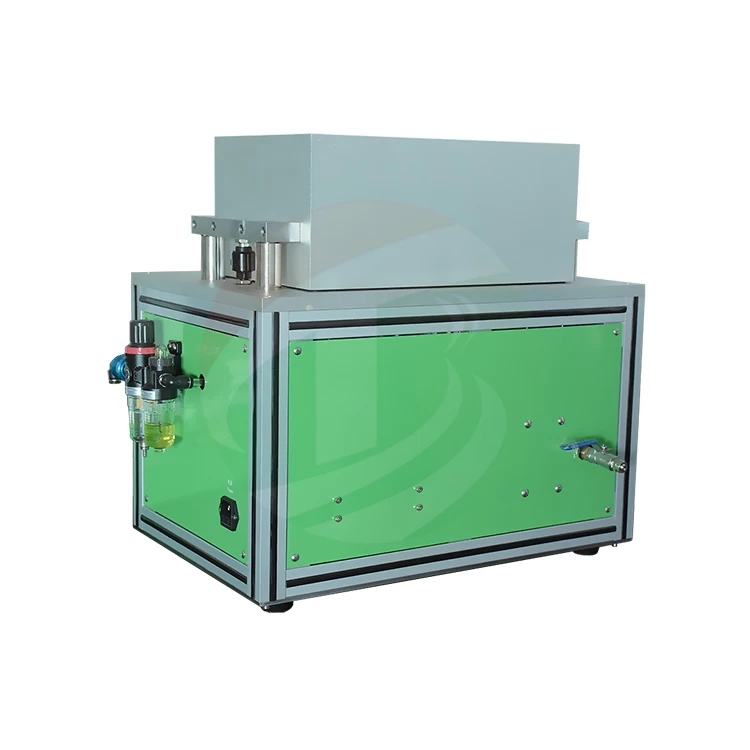

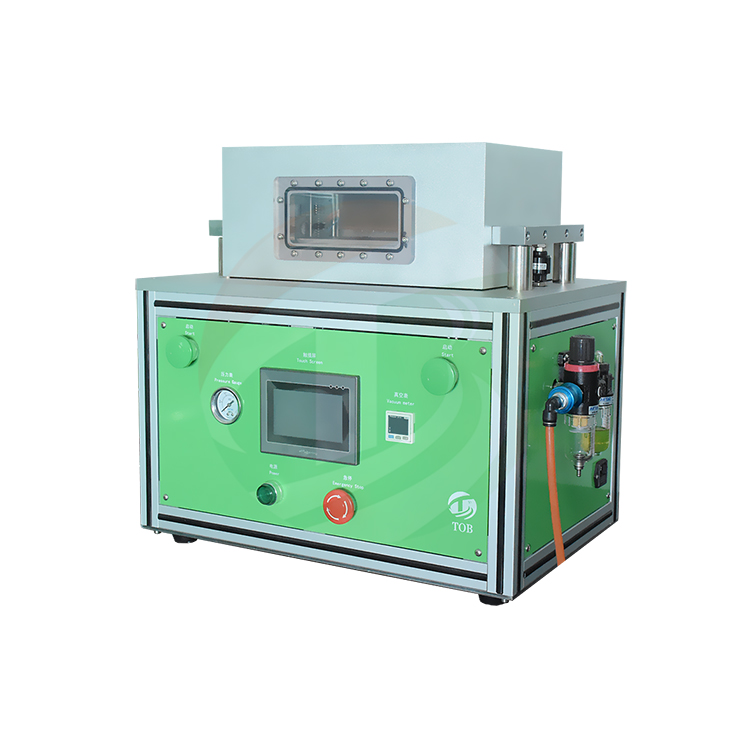

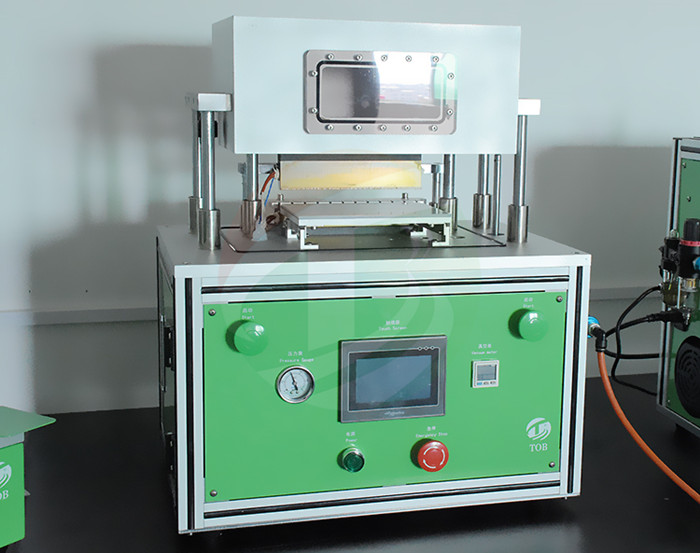

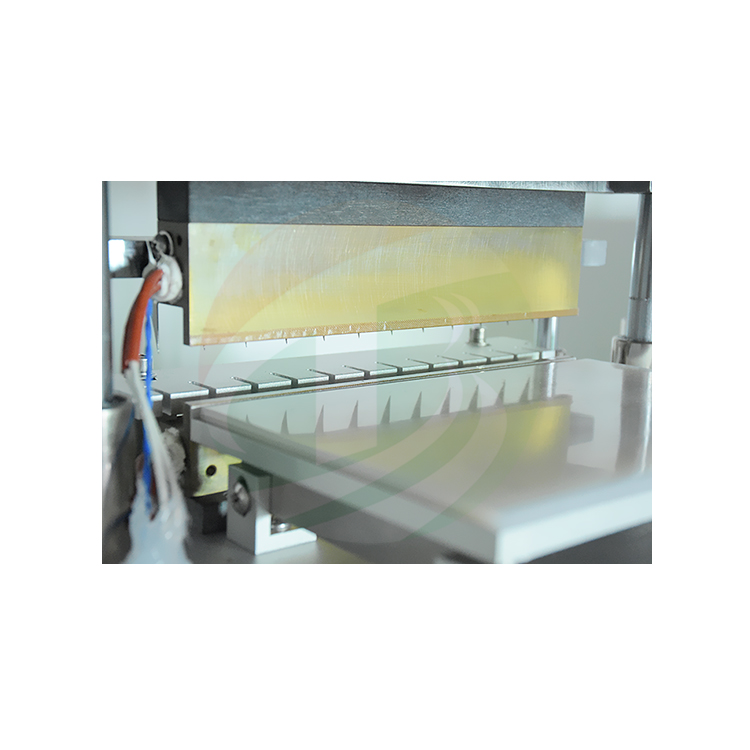

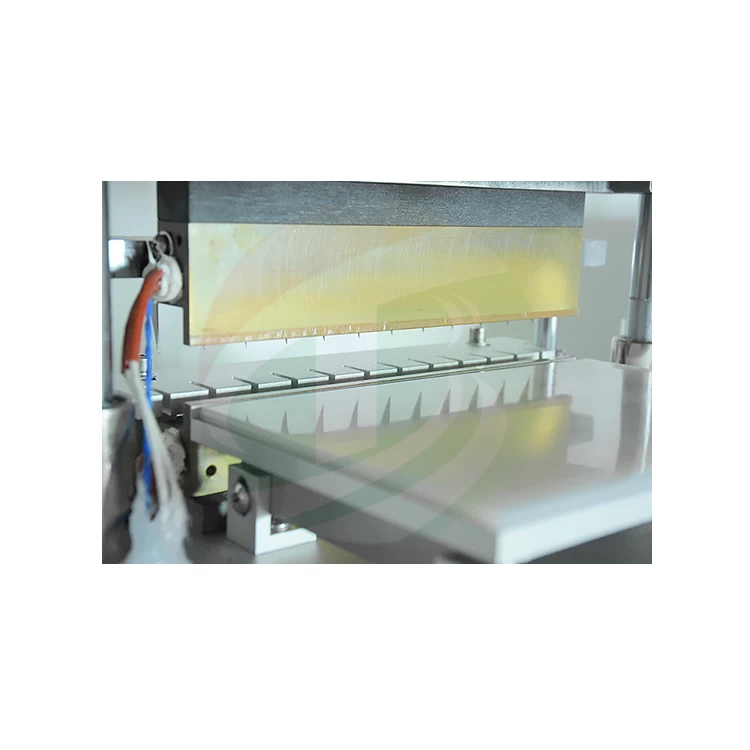

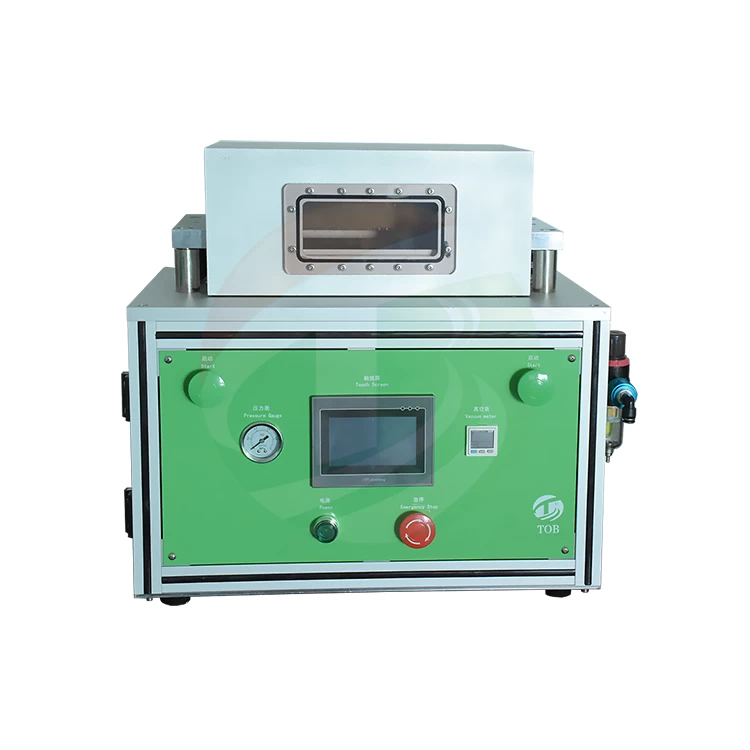

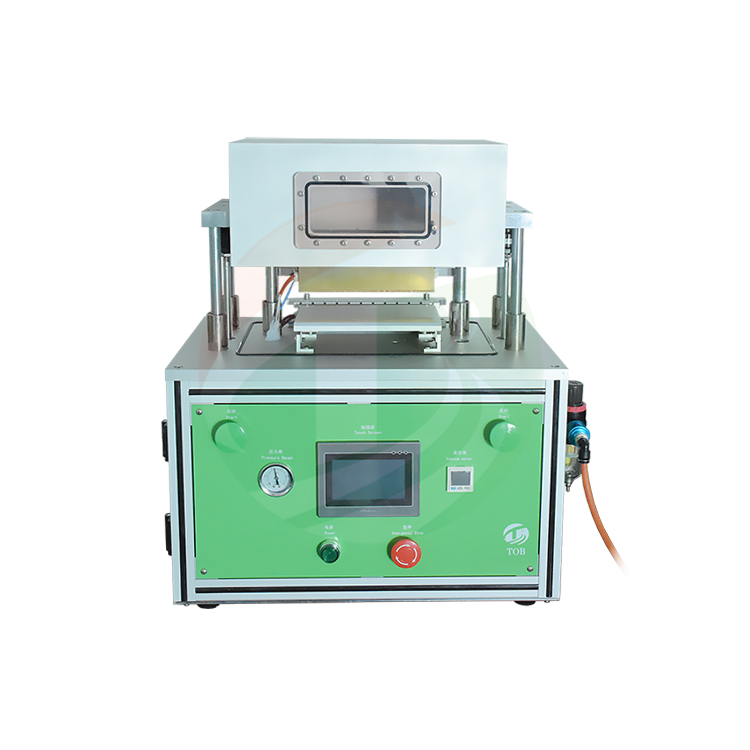

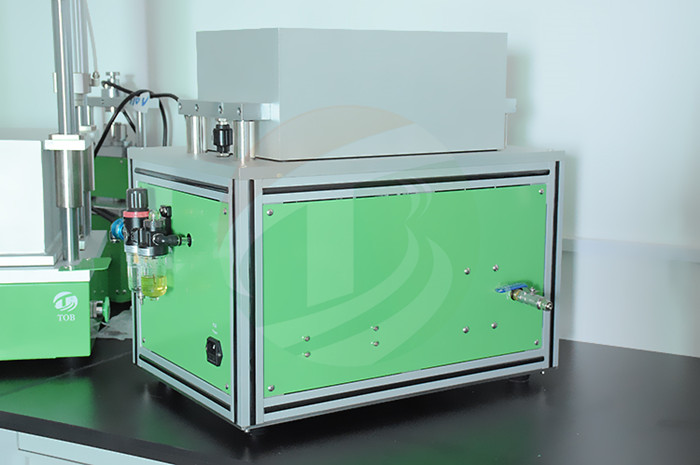

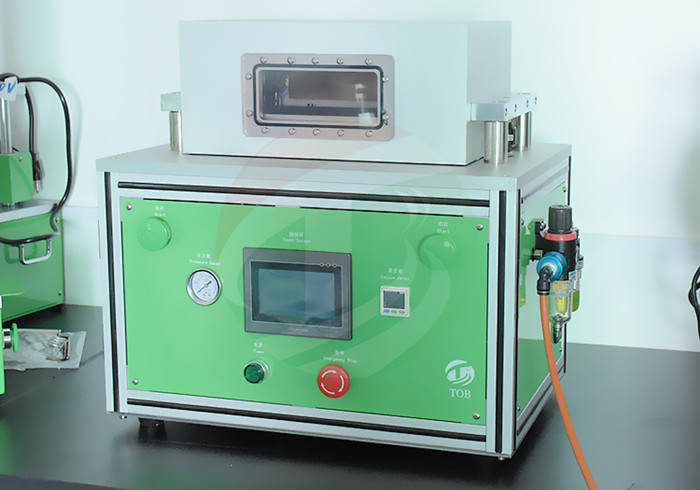

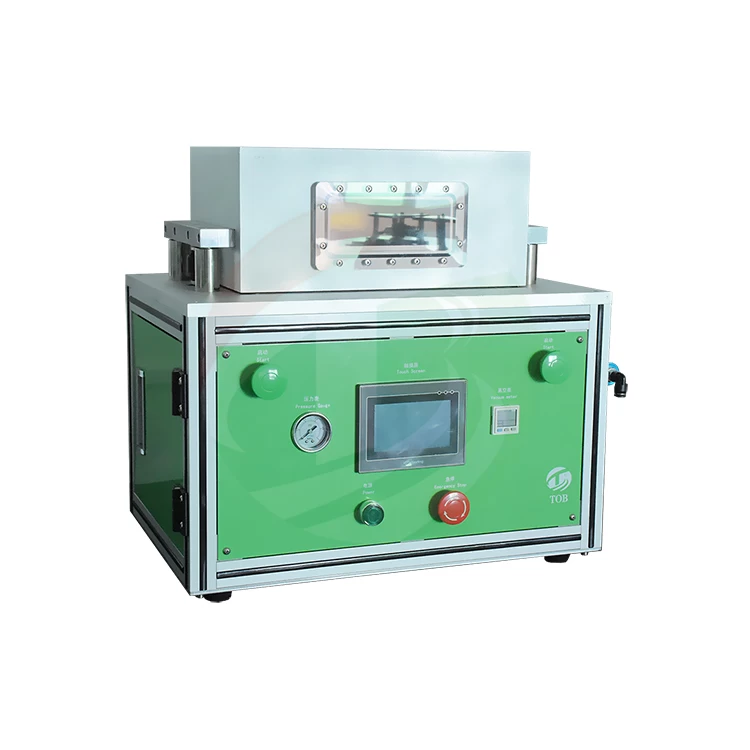

PRODUCT DISPLAY
PACKAGE
