Battery Separator and Plastic Slitting and Rewinding Machine
Product Specification
The machine with photoelectric tracking correction system, magnetic powder clutch for winding and unwinding tension control, host frequency, cots on activities is controlled by cylinder can also fit, slitting, can also separate joint or separate cutting, accurate slitting, fast slitting speed and operation and maintenance is convenient etc.
|
Model
|
TOB-SL650
|
|
Size(mm)
|
2400x1700x1300
|
|
Weight(kg)
|
1000
|
|
Power supply
|
AC220V
|
|
Power (kw)
|
2.2
|
|
Slitting speed(m/min)
|
80
|
|
Max slitting size(mm)
|
650
|
|
Min slitting size(mm)
|
8
|
|
Feeding roll diameter(mm)
|
600
|
|
Winding roll diameter(mm)
|
450
|
|
Slitting accuracy(mm)
|
±0.1mm
|

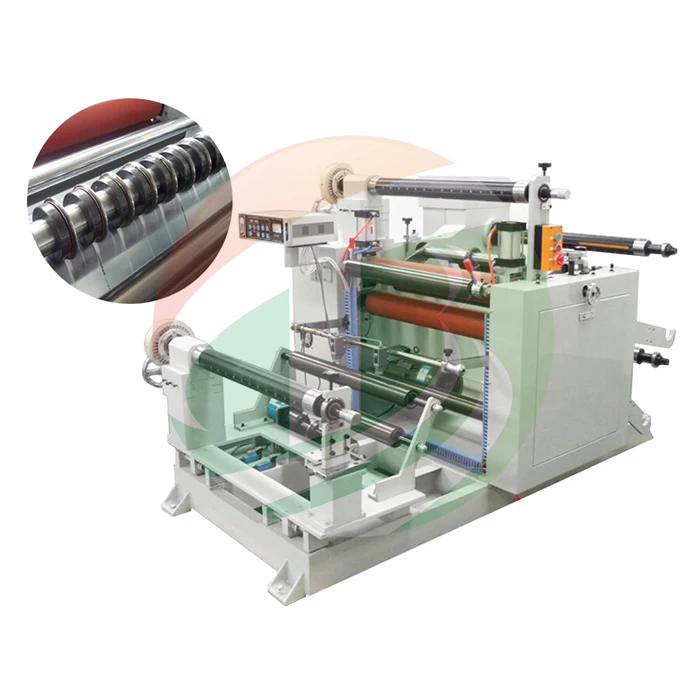

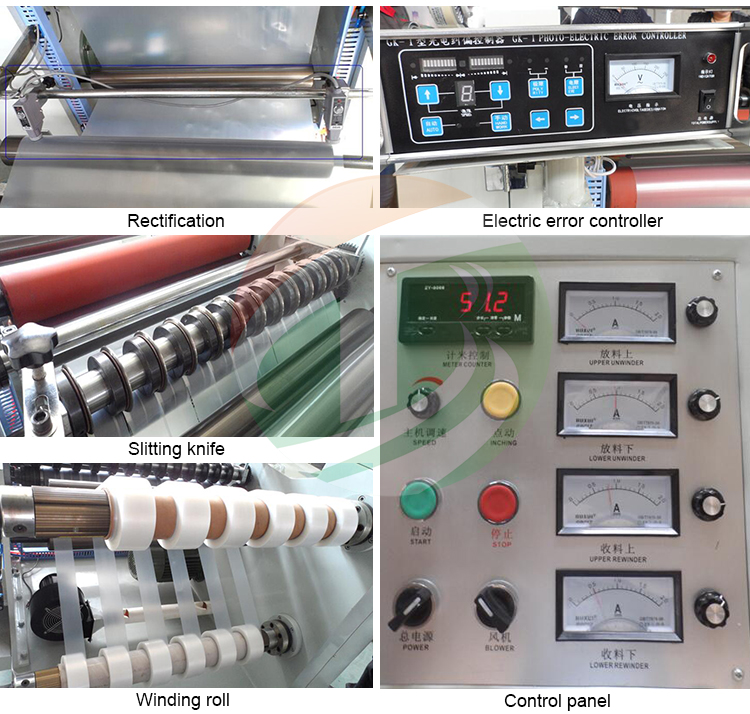

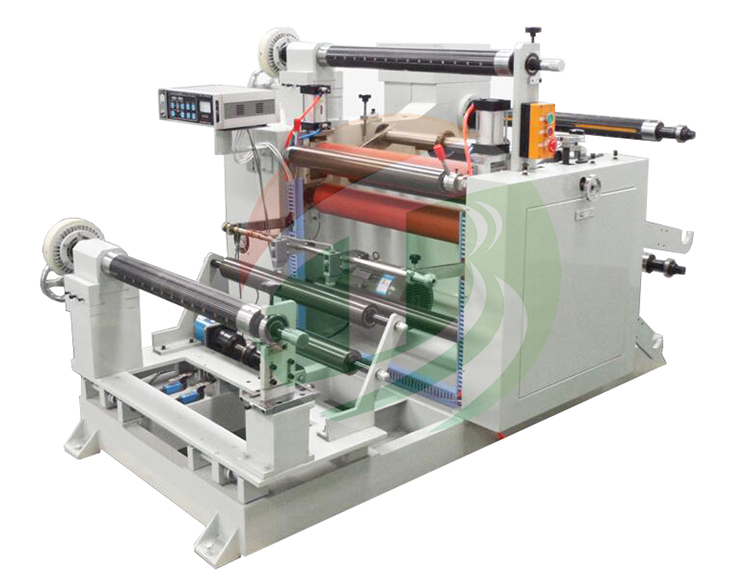

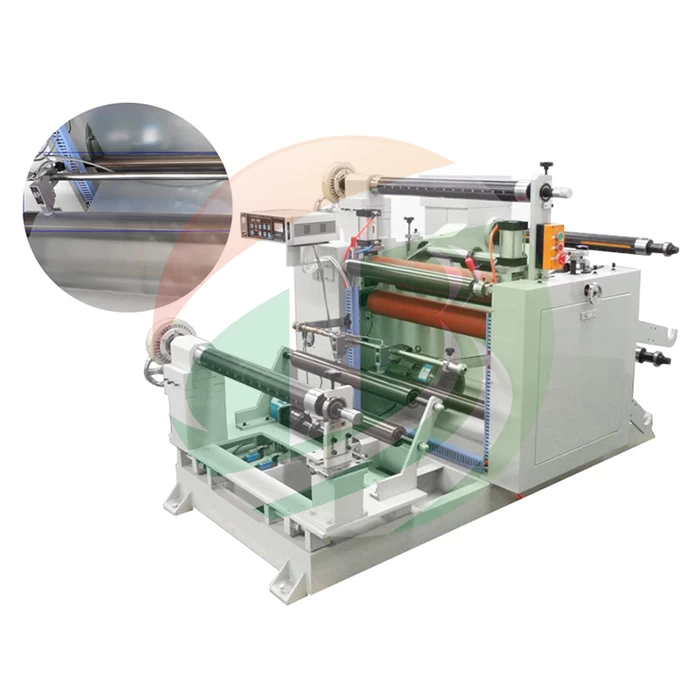

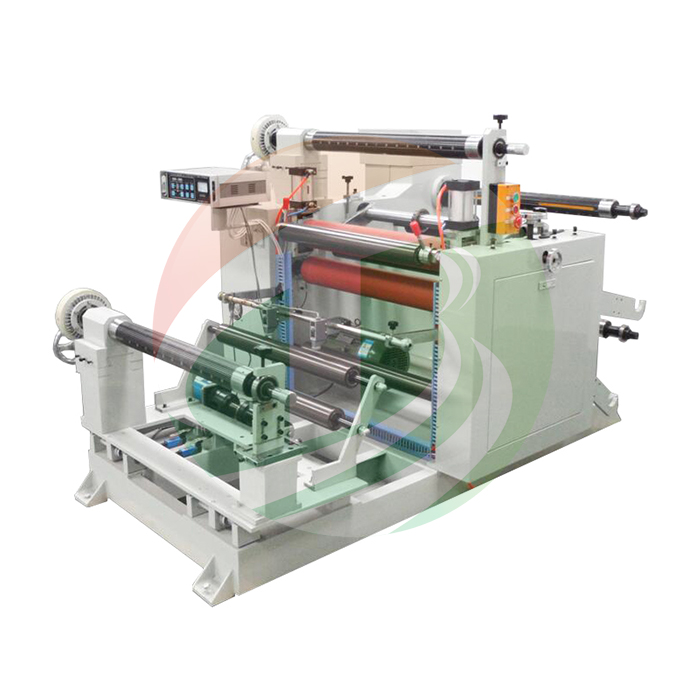

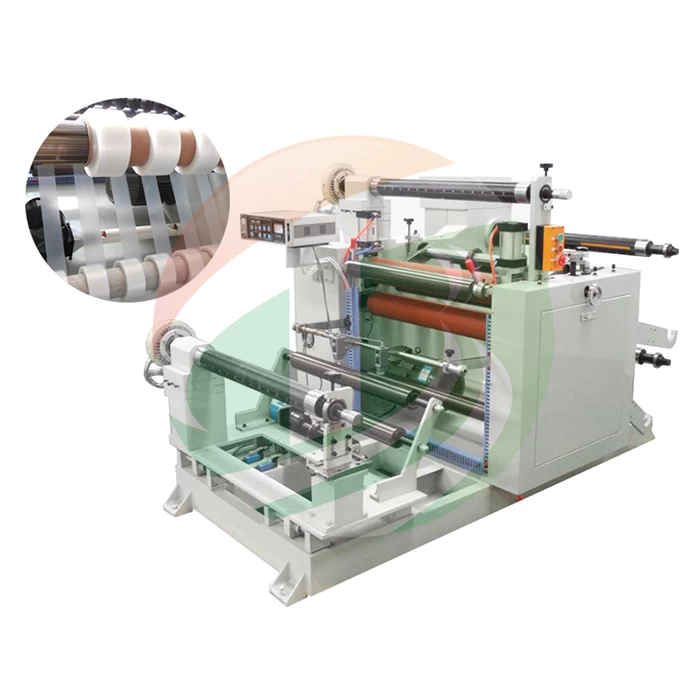

Product Image
Product Packing
