Battery Separator Coating Machine For Lab

Battery Separator Coating Machine For Lab



Battery Separator Coating Machine For PVDF Dip Coating For Lithium Battery Lab Research


SPECIFICATIONS

ThisBattery Separator Coating Machineis mainly used for lithium batteryseparator dip coating with PVDFfor lab research. Thisbattery separator coating machinework process is Unreel battery separator-PVDF/ceramic Dip coating-Drying-Reeling.


Model

Battery Separator Coating Machine  TOB-PVDF-DC-LAB

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

200W

Warranty

One year limited warranty with lifetime support

Battery separator

Width

100-200mm

Thickness

16um-40um

Biggest bear tension

1.0kg/cm

Max temperature

100℃

Max roller diameter

200mm

Equipment function

1 Easy to install and replace volumes

2 Uniform machine speed 1-3M/min adjustable

3 With Infrared heating drying fucntion

Coating box size

600*400*180mm, with about 10L volume coating materials

Heating temperature

Max 100℃, adjustable

Heating mode

With horizontal drying ways

Auto unreel

Homemade tensioning device

Inflatable axle diameter φ75mm

Auto reel

Inflatable axle diameter φ75mm

120 w speed regulating motor

Air source

0.6-0.8MP

Dimension(L*W*H)

740*460*800mm and 740*460*1250mm

Weight

About 200kg


PRODUCT DISPLAY

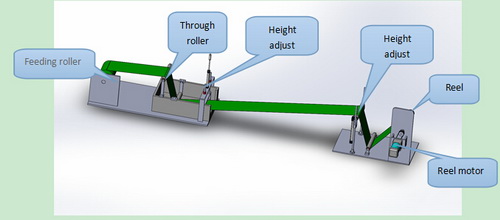

Battery separator coating machine structure

Pvdf coating machine process




PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
