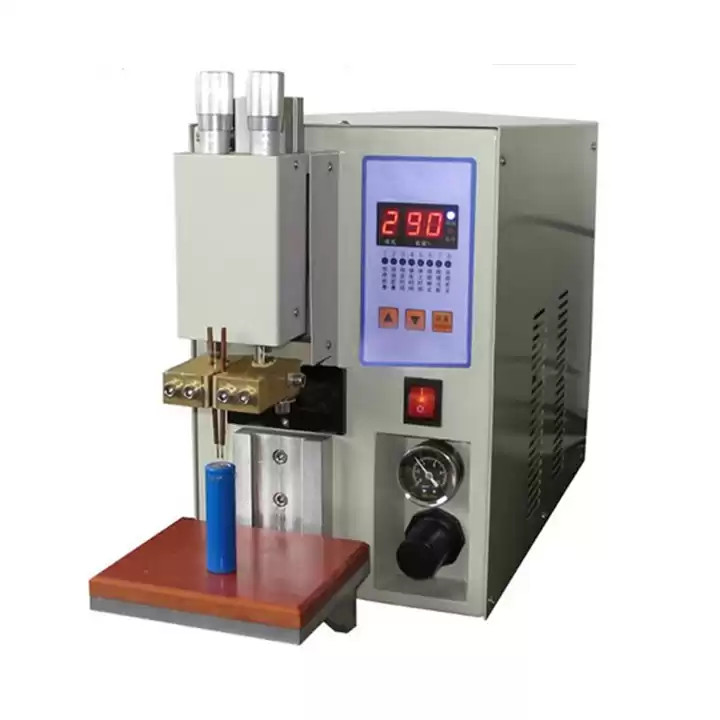

Battery Tab CNC Spot Welder Welding Machine for 18650 Cylindrical Battery Pack

It is the most popular capacitive discharge spot welder driven by compressed air. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.  If you have 18650 machine  ordering needs, please contact us.

Working Voltage	110V or 240V AC, 50/60Hz
Output Power	10KW
Input Air Pressure	0.1 - 0.8 MPa (Air Compressor is not included.)
Welding Current	0-99% Adjustable

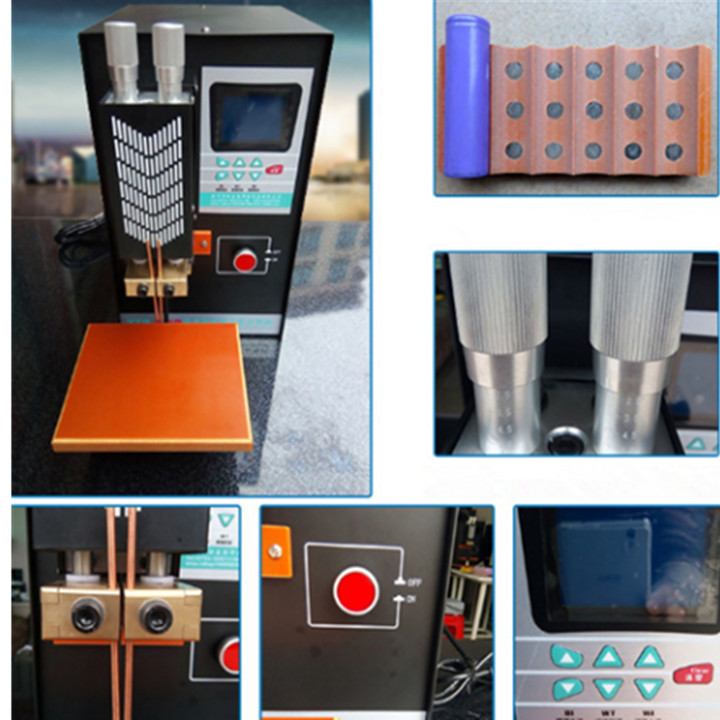

Welding probes	·         Allow independent adjustment for pressure ·         Ensure consistent welding pressure ·         Fully eliminates the phenomenon of low voltage or condensation occurred to lithium batteries after welding ·         Homogeneous welding spot, small spark, and no black spots
Welding Switch	Built in optoelectronic welding switch, which can eliminate the need of changing switches for similar welding machines
Controller	·         Single chip control ·         Digital LCD control panel for setting all parameters
Tab Thickness Applicable	0.03 - 0.5mm tab (10 pcs 0.2mm Tab will be provided in the package for customer's practice)
Warranty	·         One year limited warranty with lifetime support ·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Product Dimensions	750(L)*650(W)*550(H)mm
Application Notes	·         Please click here to learn the basic knowledge of Capacitive Discharge Spot Welder ·         Avoid touching weld spots immediately after the weld has been performed as they will be hot ·         Always wear safety glasses when working with spot welders and weld heads ·         Be careful not to pinch fingers in moving weld head parts or between welding electrodes ·         Remove hand jewelries before welding
Net Weight	50 kg (110 lbs)
