Battery Vacuum Mixer Machine Pneumatic hoist supplier
Product Specification
After the mixer finishes making the slurry, pull the barrel to the hoist, and combine the mixing head on the cover to form the slurry transfer barrel. To complete the transfer of slurry from mixer to storage and coating workshop, and to transfer the slurry to large storage tank and coating machine head through the transfer joint.
|
Modle
|
LIO-JBT-100L-QTSJ
|
|
Control system
|
|
Air source pressure
|
0.5 MPA / 0. 6 MPA dry compressed air
|
|
Lifting operational panel
|
manual reversing valve (with self-locking)
|
|
Control mode
|
manual control
|
|
Lifting Weigh
|
≤300kg
|
|
Weigh
|
approximately 380kg
|
|
Equipment size
|
L 1290mm × W1000mm × H1370mm (1970mm after lift)
|
|
Appearance color
|
off-white
|
|
Ground bearing
|
400kg / m2
|

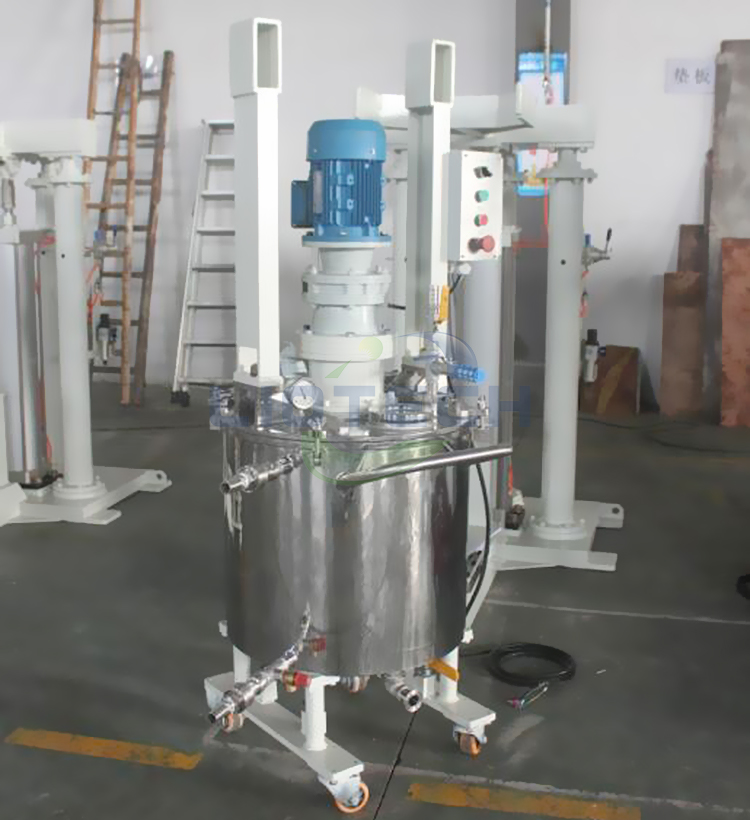

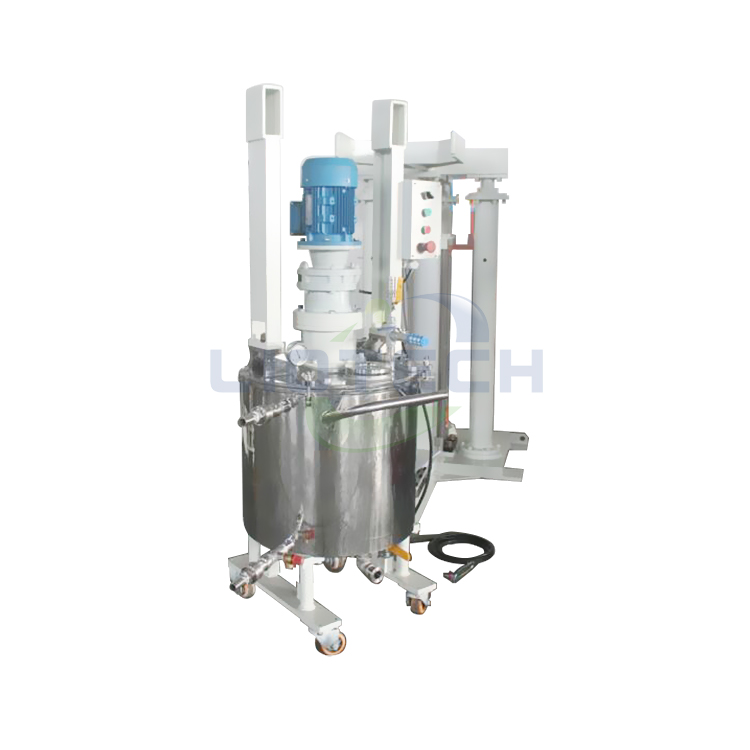

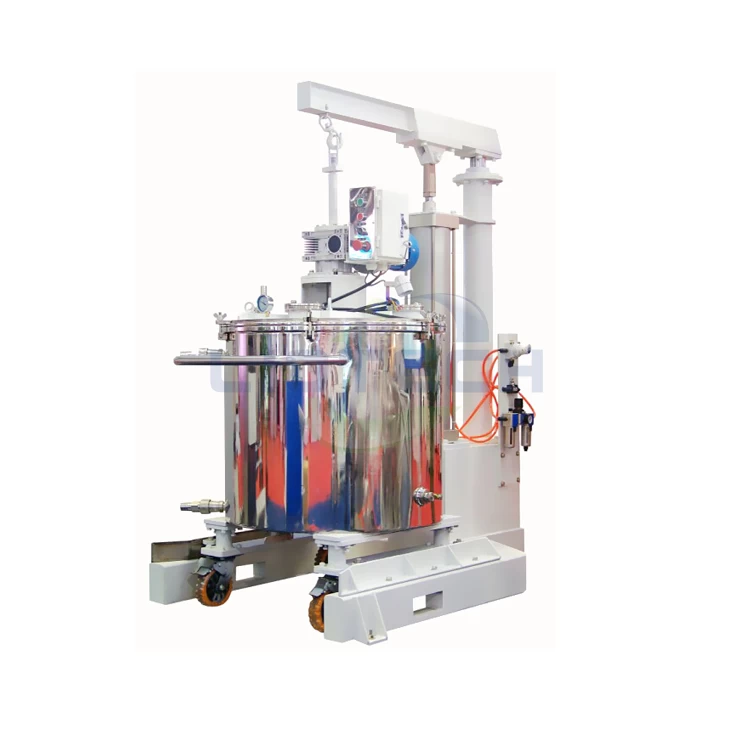

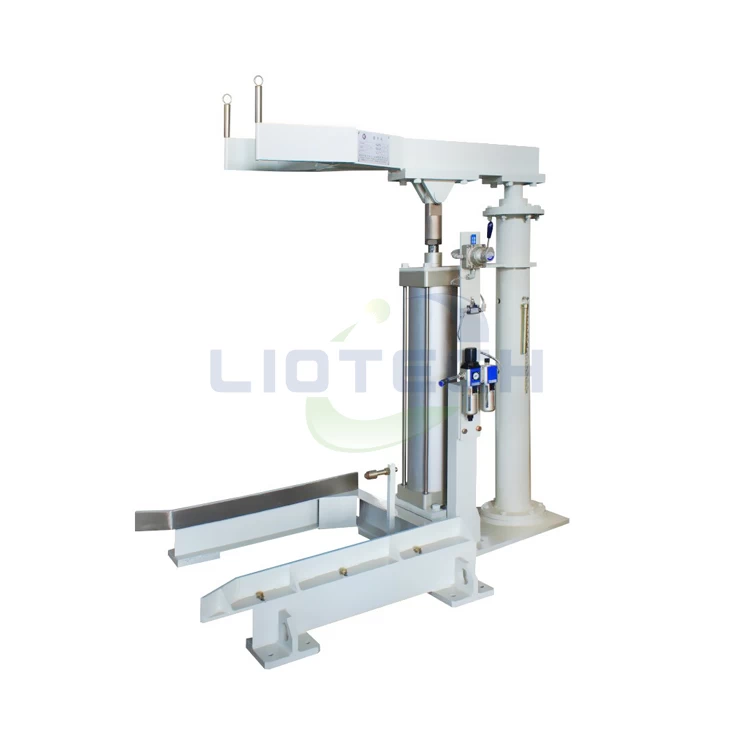

Product Image
Packing & Shipping
