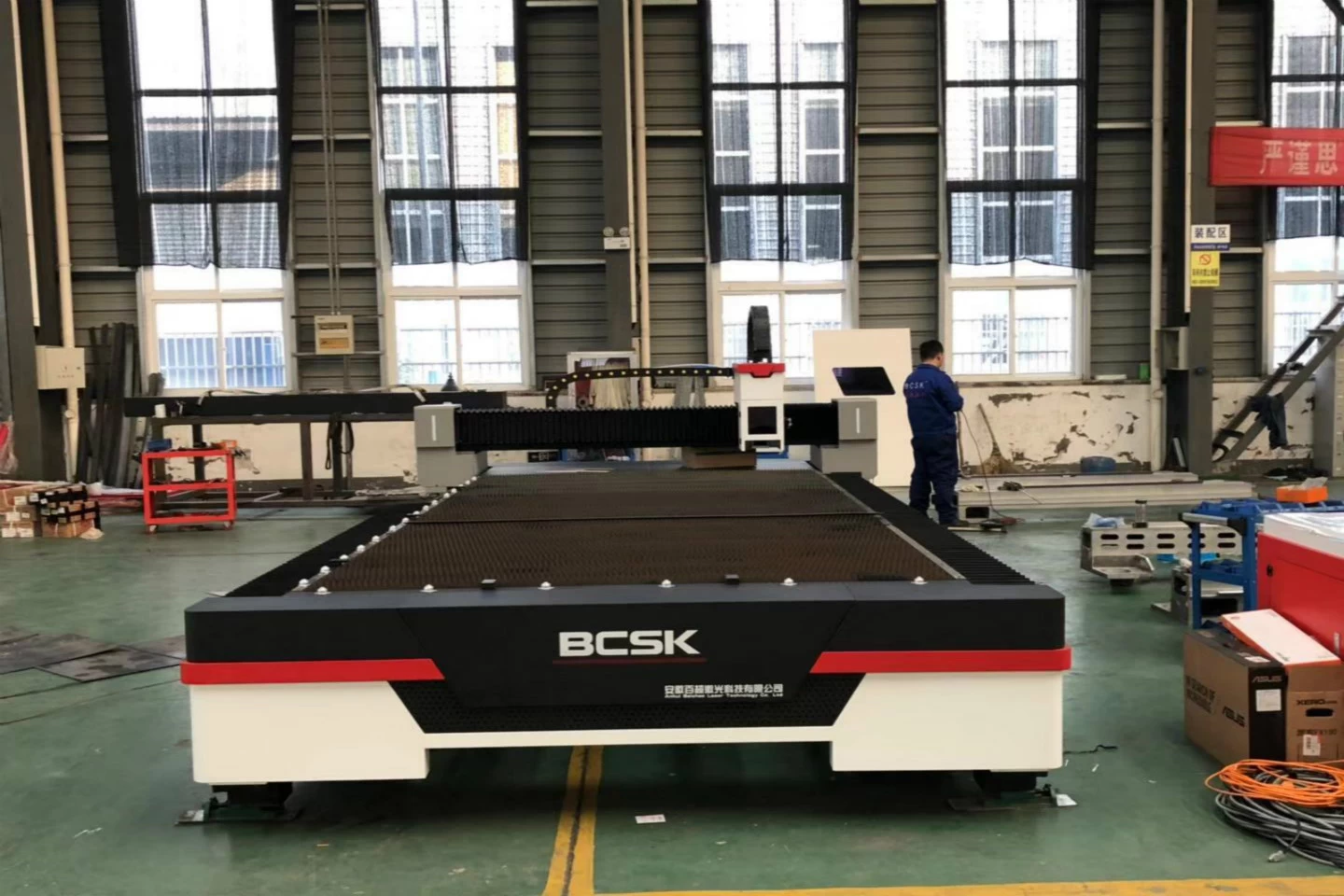

BCL double drive open type fiber laser cutting machine



Product Description

Super Quality laser metal cutting machine price/metal laser cutting machine price /sheet metal laser cutting machine price

Product Application:

1.Applicable Fields
Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet,
electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials,cnc cutter machine;
2.Widely used
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical
equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.



Why Choose Us


Main Features.


1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy Operations: fiber line transmission, no adjustment of optical path.

Low cost:

(1) High photo-voltaic conversion rate (above 30%), which helps to save electricity and costs greatly to guarantee the highest production efficiency.
(2) When processing, the laser only consumes electricity and doesn’t need extra gas, bringing the minimum operation and maintenance costs.
(3) Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn’t need adjusting and maintaining, which saves the costs and time. In this point, the traditional laser is not comparable.
(4) The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2 wavelength. The output beam is in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great power to cut and weld to make the lowest processing costs.



Technical Parameter
Model
BCL-3015B
BCL-4020
Cutting Range (length*width)
1500*3000mm
2000*4000mm
Fiber Laser Generator medium
Semiconductor pump continuous ytterbium doped fiber
Max Moving Speed
100m/min
Max Cutting Speed
25m/min
Positioning Accuracy
0.03mm
Repeated Positioning Accuracy
0.02mm
Cooling Type
Water cooling
Laser Output Power
500W/1000W/2000W/3000W/4000W
Min Line Width
0.1mm
Drive System
Servo motor
Power Allocation
380V/220V±10%, 50Hz/60Hz
Continuous Working Time
24 hours
Related Weight
Whole machien: approx 4 tons, actual weight based on final configuration (depends on model)
Machine Size (l*w*h)
2.4*5.7*1.9m              2.4*5.7*1.9m
Accessories (l*w*h)
(take 500W for example)
Water chiller 1*1*1.2m, contol box 1*0.8*1.8m, fiber laser generator 0.5*0.6*0.14m
